Description

Price

1

FRAME (BLACK)

41100-15J00-YAP

$7,922.33

2

RAIL,SEAT,R (BLACK)

41211-14J00-YUG

$348.18

3

RAIL,SEAT,L (BLACK)

41221-14J00-YUG

$356.53

4

BRIDGE,SEAT RAIL FR

41770-01H00

$69.00

5

BRIDGE,SEAT RAIL LWR

42740-37H00

$33.54

6

BRIDGE,SEAT RAIL UPR

42730-14J00

$47.45

7

BRIDGE,SEAT RAIL RR

42751-14J00

$15.84

8

BOLT (6X12)

09103-06285

$1.97

9

BOLT,SEAT RAIL

41233-18G20

$7.92

10

SPACER,ENGINE MOUNTING

41911-40F01

$21.23

11

BOLT (8X32)

09106-08185

$2.75

12

BOLT,CRANK CASE ADJUST

41921-35F00

$61.88

13

NUT,ADJUST BOLT

41922-18G00

$41.45

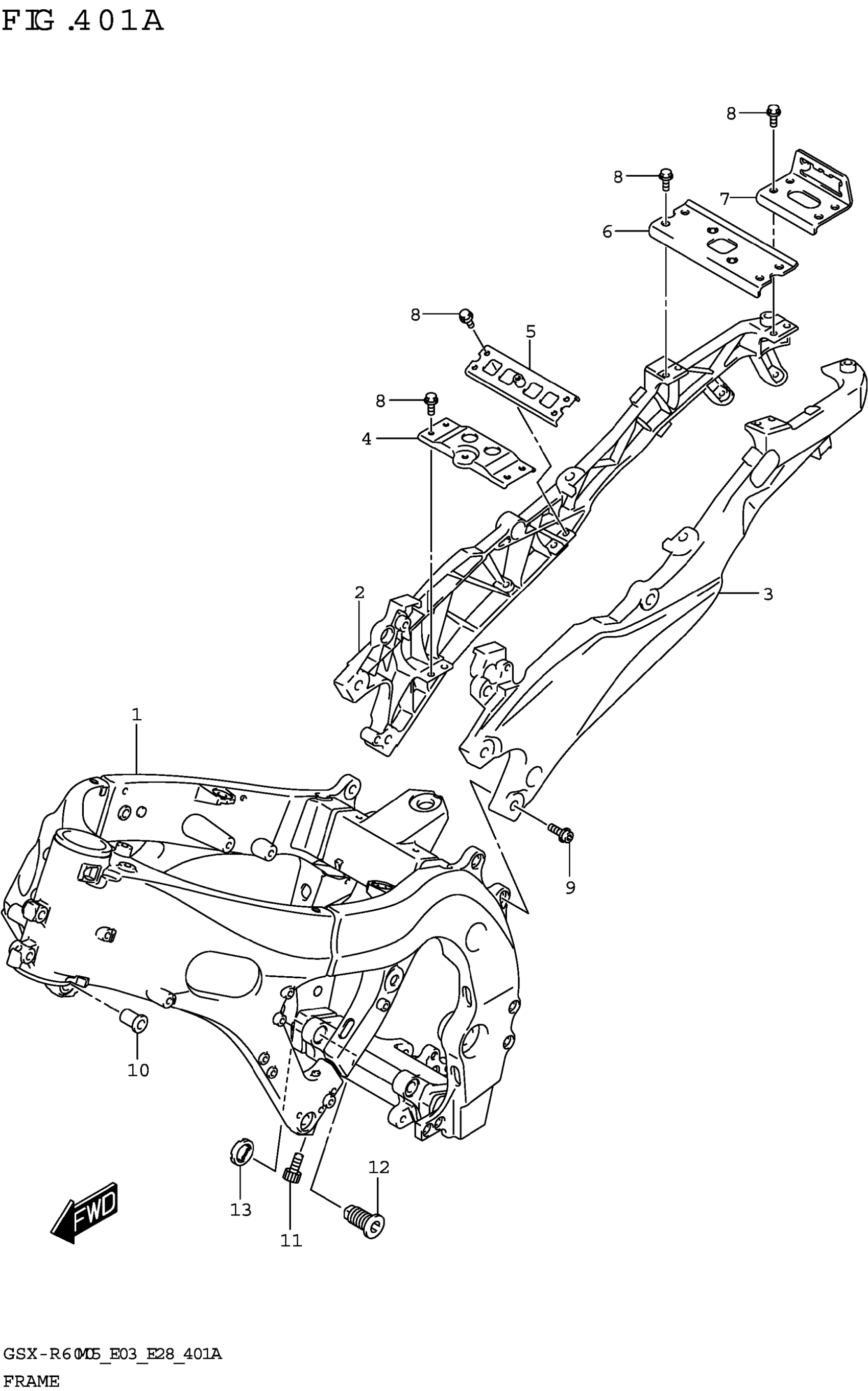

Suzuki GSX-R600M5 (2025) FRAME Diagram
