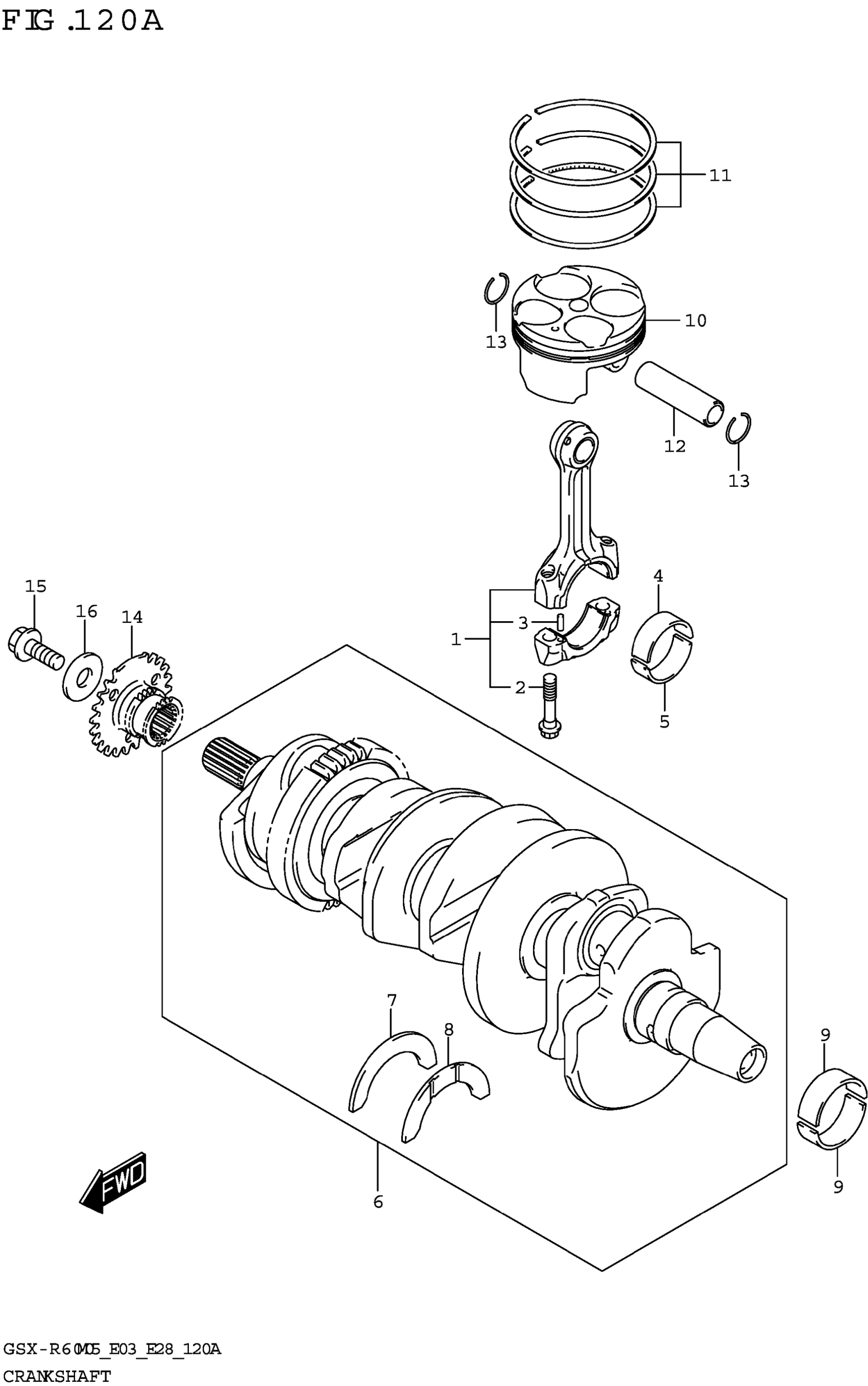

Suzuki GSX-R600M5 (2025) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-14J10

$253.68

2

.BOLT,CONNROD

12163-35F00

$9.36

3

PIN (4X13.8)

04221-04089

$1.10

4-1

BEARING,CRANK PIN

12164-14J00-0A0

$21.96

4-2

BEARING,CRANK PIN

12164-14J00-0B0

$22.59

4-3

BEARING,CRANK PIN

12164-14J00-0C0

$21.96

4-4

BEARING,CRANK PIN

12164-14J00-0D0

$31.85

5-1

BEARING,CRANK PIN

12164-29G00-0A0

$12.78

5-2

BEARING,CRANK PIN

12164-29G00-0B0

$13.14

5-3

BEARING,CRANK PIN

12164-29G00-0C0

$12.78

5-4

BEARING,CRANK PIN

12164-29G00-0D0

$13.64

6

CRANKSHAFT SET

12000-01820

$1,906.35

7

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$8.95

8-1

.BEARING,CRANK THRUST (RED)

12228-17E00-0A0

$12.85

8-2

.BEARING,CRANK THRUST (BLACK)

12228-17E00-0B0

$9.12

8-3

.BEARING,CRANK THRUST (BLUE)

12228-17E00-0C0

$9.12

8-4

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$8.95

8-5

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

$12.85

8-6

.BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

$13.10

9-1

BEARING,CRANKSHAFT

12229-01H00-0A0

$16.66

9-2

BEARING,CRANKSHAFT

12229-01H00-0B0

$16.66

9-3

BEARING,CRANKSHAFT

12229-01H00-0C0

$16.66

9-4

BEARING,CRANKSHAFT

12229-01H00-0D0

$16.73

9-5

BEARING,CRANKSHAFT

12229-01H00-0E0

$24.38

10

PISTON

12111-14J00-0F0

$226.95

11

RING SET,PISTON

12140-29G20

$79.90

12

PIN,PISTON

12151-14J00

$19.78

13

RING

09381-14001

$1.43

14

SPROCKET,CAM CHAIN DRIVE (NT: | 7)

12731-01H00

$146.42

15

BOLT (10X23)

09103-10189

$3.70

16

WASHER

08211-10285

$3.19
