Description

Price

1

GEAR SET,PRIMARY DRIVEN (NT:7 | )

21200-01830

$566.97

2

SPACER,OIL PUMP DRIVE SPROCKE

21253-01H10

$46.80

3

WASHER (25X54X2.4)

09160-25073

$15.75

4

BEARING (35X40X26.8)

09263-35015

$30.38

5

BEARING (35X40X12)

09263-35045

$25.43

6

HUB,CLUTCH SLEEVE

21410-41G30

$263.42

7

BOLT,CLUTCH SPRING

21412-06G00

$3.55

8

SPRING,CLUTCH

21413-01H10

$7.32

9

WASHER

21414-29F00

$5.88

10

.PLATE,CLUTCH DRIVE NO.1 (T:2 | )

21441-36F50

$25.69

11

PLATE,CLUTCH DRIVE NO.3 (T:2. | )

21442-41G00

$25.69

12

PLATE,CLUTCH DRIVEN (T:2.0)

21451-41G10

$18.10

13

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

$12.48

14

DISC,CLUTCH PRESSURE

21462-41G00

$88.67

15

.SEAT,WAVE WASHER

21471-41G00

$13.01

16

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$18.79

17

CAM,CLUTCH DRIVE

21611-41G30

$159.27

18

CAM,CLUTCH DRIVEN

21612-41G10

$133.88

19

WASHER,CAM REACTION WAVE

21621-41G00

$13.97

20

WASHER,CAM REACTION SEAT

21624-41G00

$12.45

21

LIFTER,CLUTCH PRESSURE DISC

21622-41G00

$9.89

22

NUT,CL PRESS DISC LIFTER LOCK

21623-41G00

$2.80

23

SHIM (8.8X14X1)

09181-08139

$1.92

24

NUT

09159-24010

$11.92

25

.WASHER (25X50X2.5)

09160-25056

$10.63

26

WASHER (24.2X35X2.7)

09164-24008

$5.00

27

WASHER (25X41X2.5)

09160-25077

$11.38

28

ROD,CLUTCH PUSH,R

23110-38B00

$21.22

29

ROD,CLUTCH PUSH,L

23111-35F00

$12.18

30

PIECE,CLUTCH PUSH

23121-41G00

$55.32

31

CAMSHAFT,CLUTCH RELEASE

23122-41G10

$66.67

32

CAP,CLUTCH PUSH ROD

23123-41G00

$10.01

33

SPRING,CLUTCH RELEASE RETURN

23125-41G00

$2.97

34

ARM,CLUTCH RELEASE

23271-41G40

$72.33

35

BOLT (6X20)

09103-06223

$2.49

36

SCREW (6X73)

09134-06015

$6.21

37

WASHER (10.5X24X1.0)

09160-10020

$1.86

38

WASHER (15.5X28X1)

09160-15045

$3.52

39

BEARING (10X14X10)

09263-10014

$12.21

40

BEARING (12X18X12)

09263-12027

$6.59

41

BEARING (15X28X2)

09263-15003

$7.49

42

SEAL,OIL (10X20X6)

09282-10012

$7.20

43

SEAL,OIL (6X34X10.5)

09283-06010

$15.16

44

SEAL,OIL (10X17X5)

09285-10004

$3.04

45

NUT

08310-0006A

$1.83

46

RETAINER,CL PUSH ROD OIL SEAL

24741-01H00

$6.89

47

SCREW (6X13)

09139-06153

$2.61

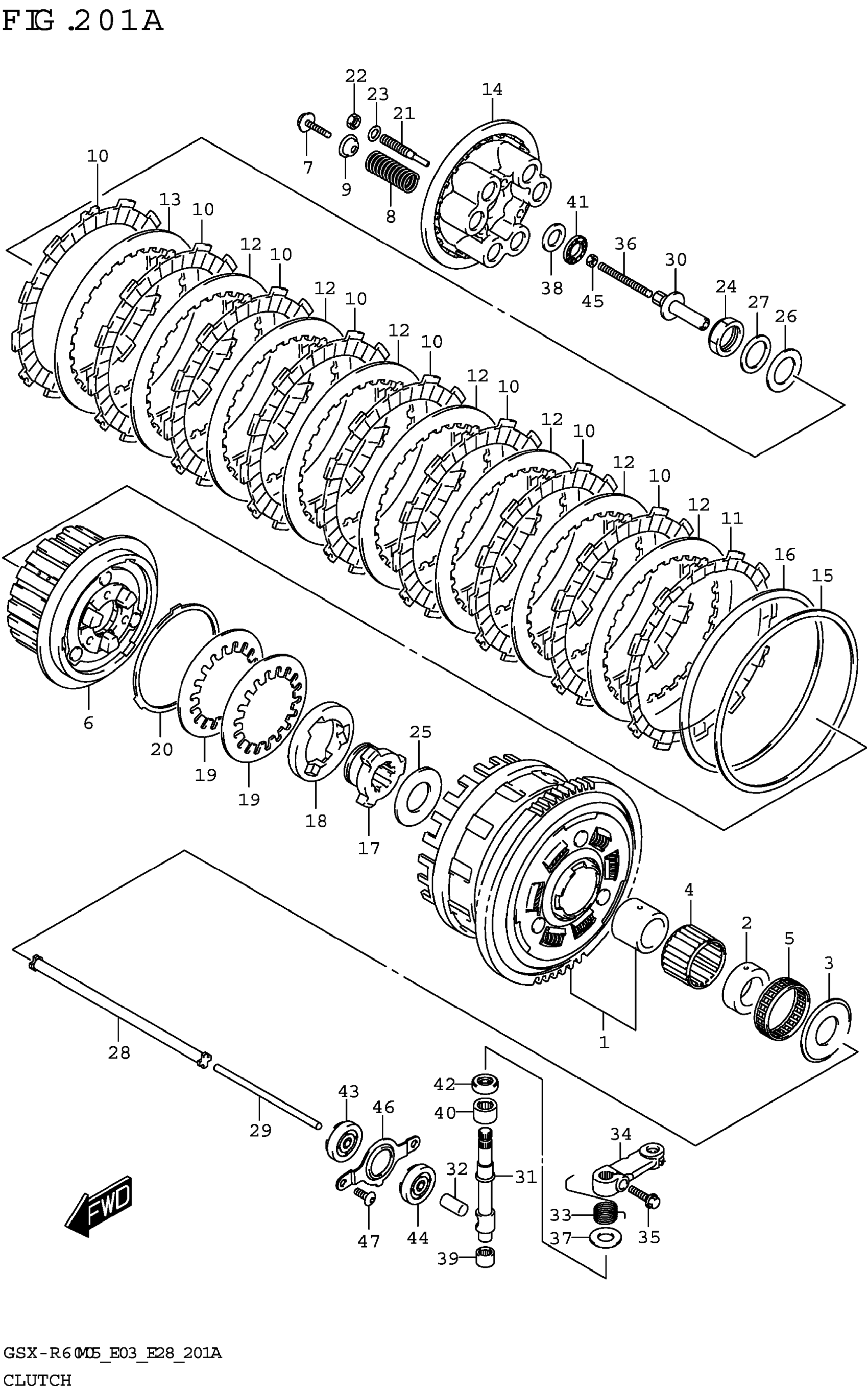

Suzuki GSX-R600M5 (2025) CLUTCH Diagram
