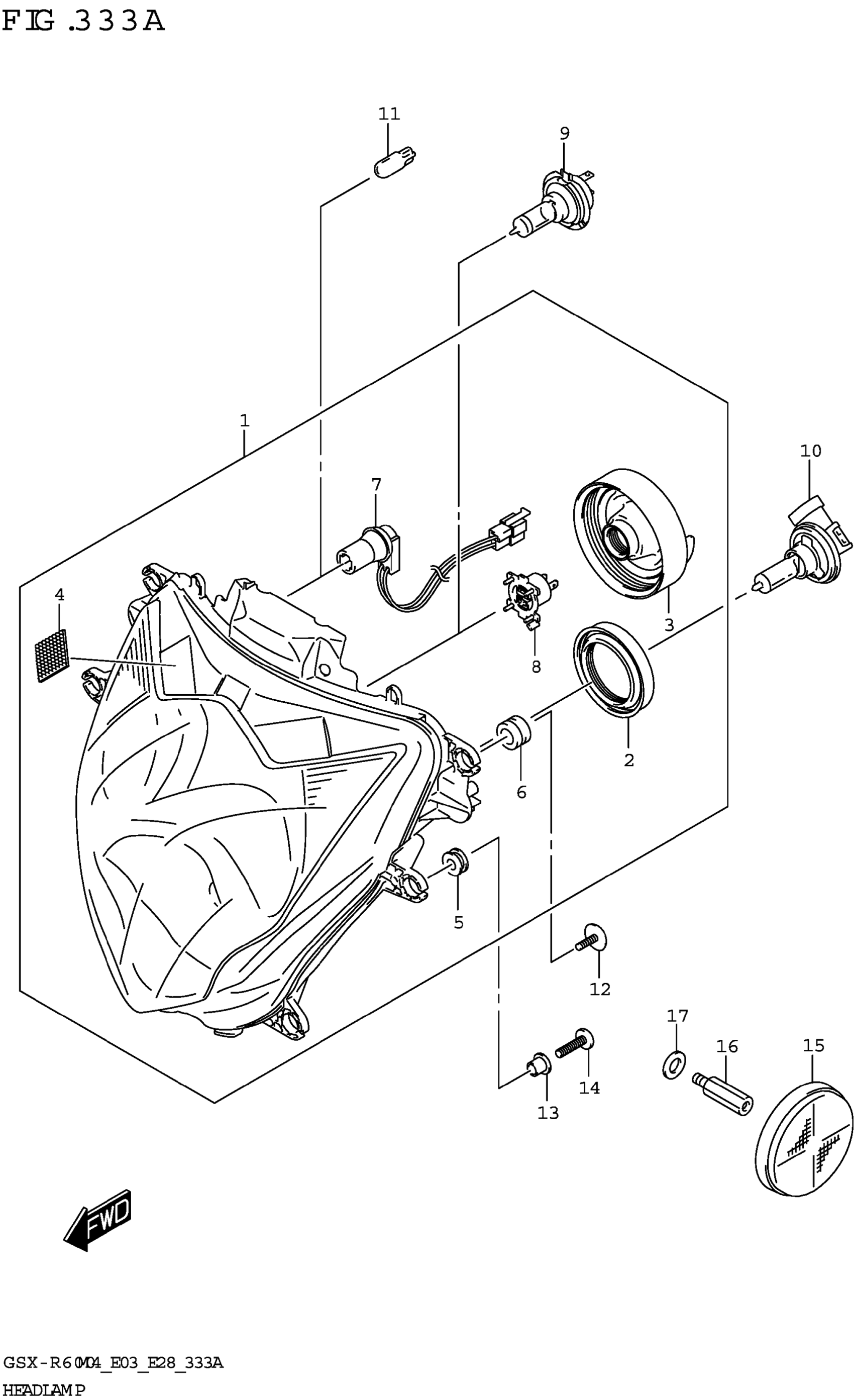

Find the part on the Headlamp diagram for your 2024 Suzuki GSX-R600M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki GSX-R600M4 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-14J32-999

1

$484.78

In stock

2

.COVER,SOCKET

35179-01H00

1

$29.57

In stock

3

.COVER,SOCKET

35179-58J00

1

$19.12

In stock

4

FASTENER (25X33X2.6)

44572-02F01

2
Out of stock

5

.CUSHION

09320-07014

2

$3.84

In stock

6

.CUSHION (9X18X14)

09320-09059

4
Out of stock

7

.CORD ASSY

36118-29G51

2

$18.82

In stock

8

.ADAPTER ASSY

37175-14J00

1

$20.85

In stock

9

BULB (12V55W H7)

09471-12188

1

$22.21

In stock

10

BULB (12V65W)

09471-12222

1

$89.48

In stock

11

.BULB (12V5W)

09471-12216

2
Out of stock

12

SCREW (5X15)

09136-05062

6
Out of stock

13

WASHER

09169-05018

2

$2.92

In stock

14

SCREW

02142-0520B

2
Out of stock

15

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

16

BOLT

09119-06109

2
Out of stock

17

WASHER (8.5X18X1.0)

09160-08043

2
Out of stock
