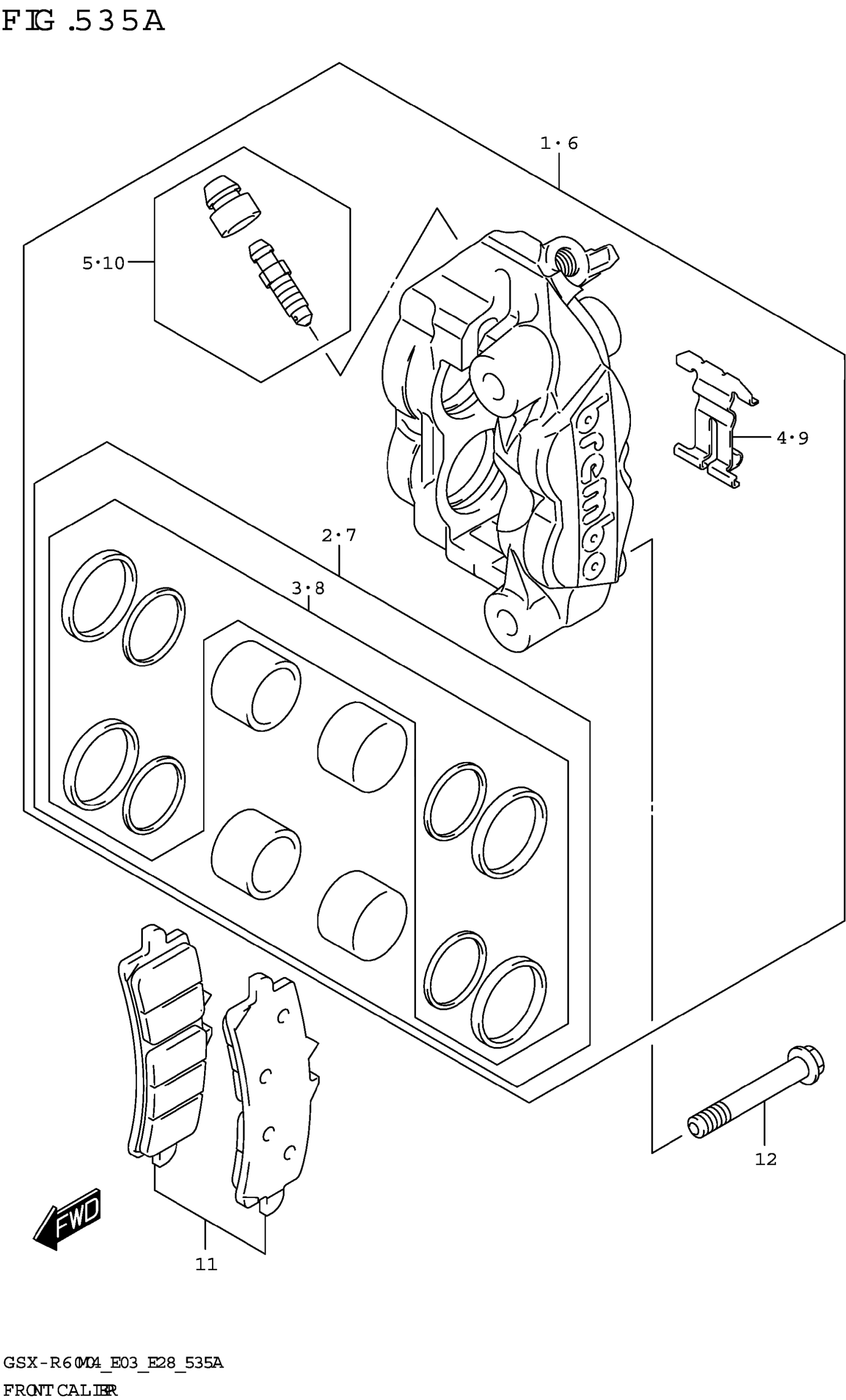

Suzuki GSX-R600M4 (2024) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,L

59300-17K20-999

$443.07

2

.PISTON SET

59100-17810

$94.95

3

..SEAL SET,PISTON

59100-14820

$57.99

4

.SPRING

59151-14J00

$22.06

5

.BLEEDER SET

59100-14840

$23.74

6

CALIPER ASSY,FRONT,R

59100-17K20-999

$443.07

7

.PISTON SET

59100-17810

$94.95

8

..SEAL SET,PISTON

59100-14820

$57.99

9

.SPRING

59151-14J00

$22.06

10

.BLEEDER SET

59100-14840

$23.74

11

PAD SET (T:3.5)

59100-14830

$52.78

12

BOLT (10X70)

09103-10429

$13.88
