2022 Suzuki GSX-R600M2 Fuel Pump Diagram

← All diagrams

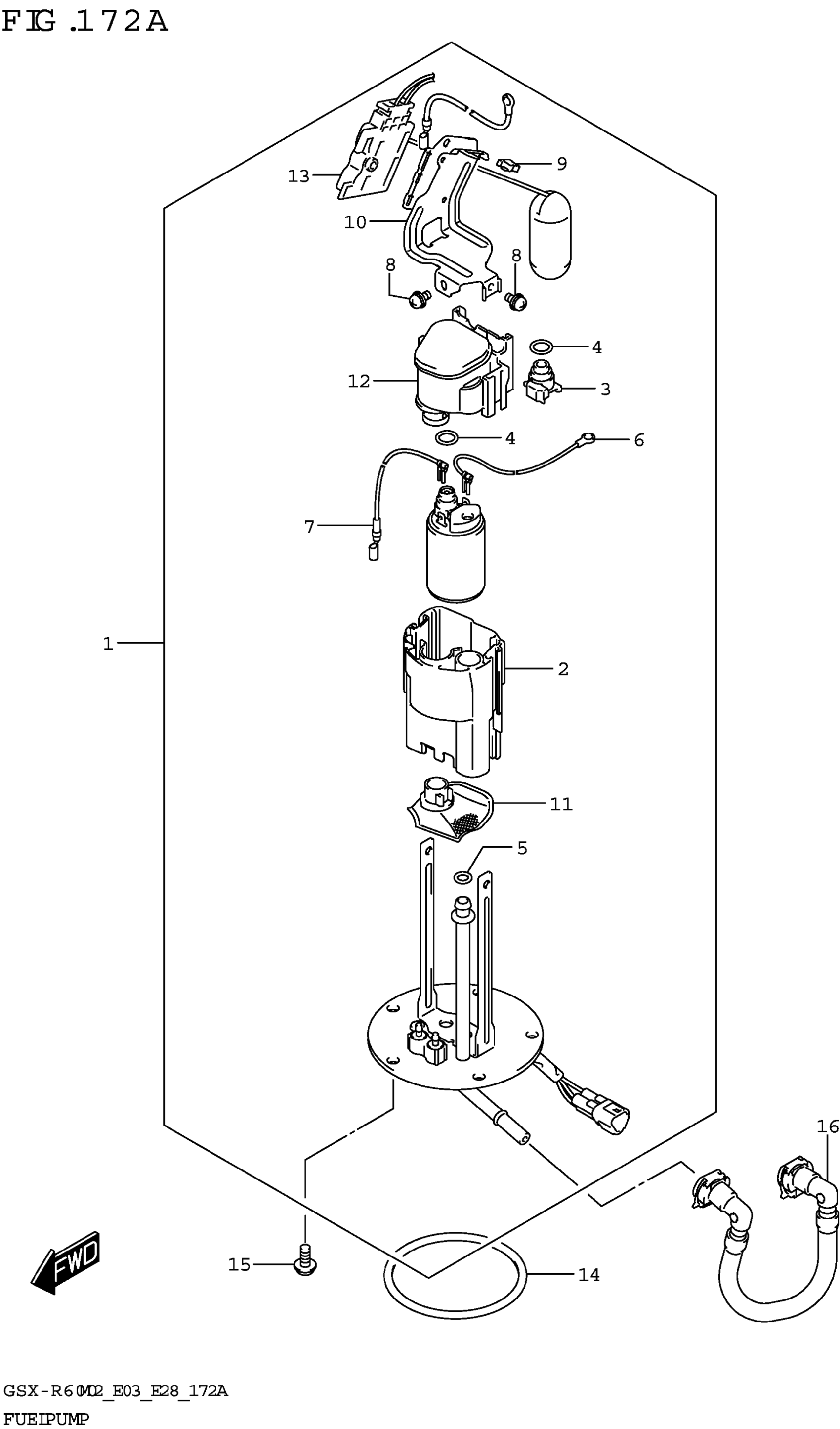

Find the part on the Fuel Pump diagram for your 2022 Suzuki GSX-R600M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX-R600M2 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-14J01

1
Out of stock

2

.CUP

15111-27G00

1
Out of stock

3

.JOINT

15112-05H00

1
Out of stock

4

.O-RING

15113-05H00

2
Out of stock

5

.O-RING

15113-35F00

1
Out of stock

6

.WIRE,EARTH

15114-14J00

1
Out of stock

7

.WIRE,LEAD

15115-14J00

1
Out of stock

8

.SCREW

15116-10F00

3
Out of stock

9

.SADDLE,EDGE

15119-23H00

1
Out of stock

10

.BRACKET,FUEL GAUGE

15181-14J00

1
Out of stock

11

.STRAINER

15420-05H00

1
Out of stock

12

.REGULATOR,FUEL

15610-14J00

1
Out of stock

13

.GAUGE ASSY,FUEL LEVEL

34810-14J00

1
Out of stock

14

O-RING

15201-35F00

1
Out of stock

15

BOLT

07120-0612A

5
Out of stock

16

HOSE,FUEL

15810-14J01

1
Out of stock
← Evap System Fuel Tank →
