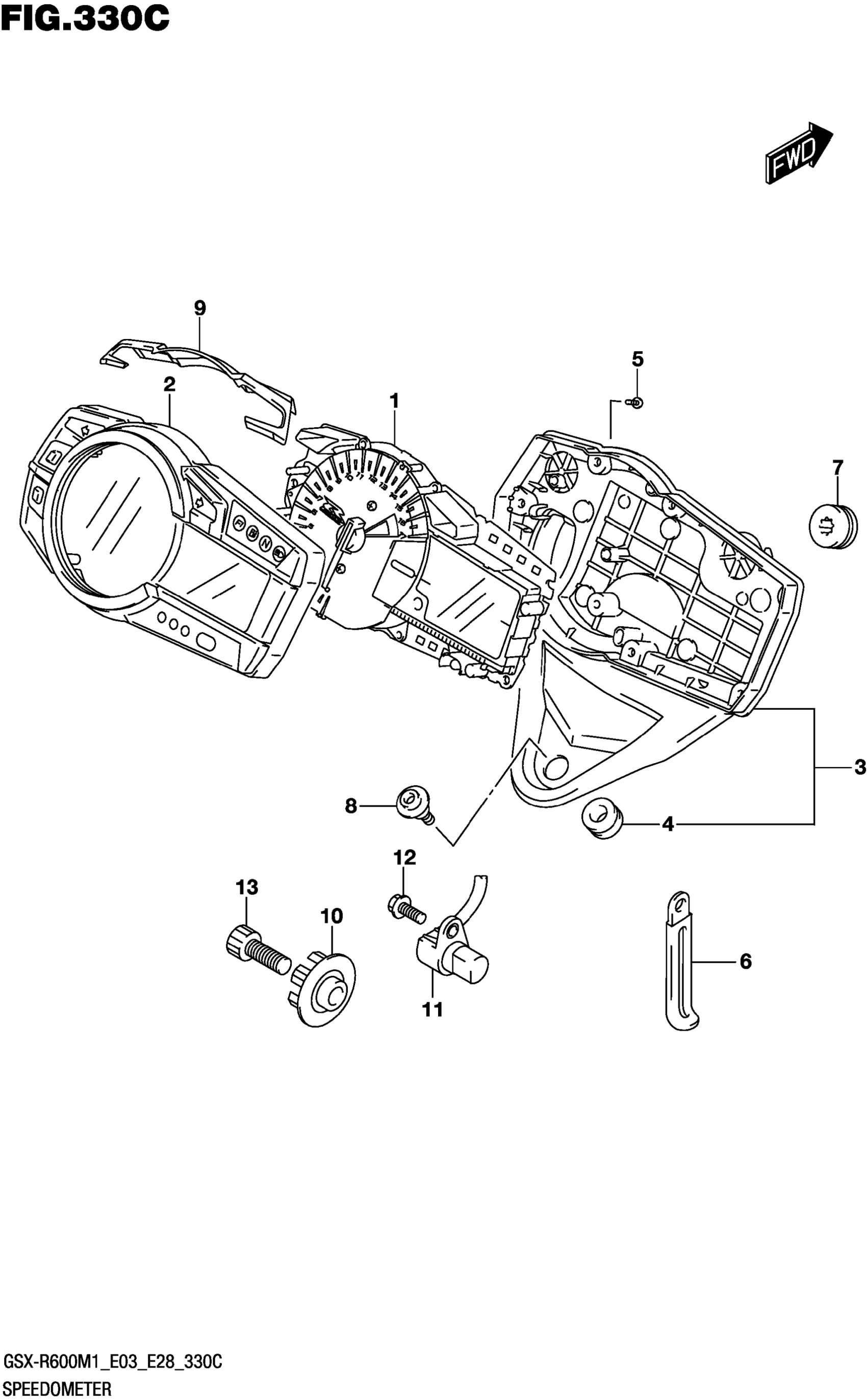

Suzuki GSX-R600M1 (2021) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-14J20

Unavailable

2

CASE ASSY,UPR

34150-47H00

$189.55

3

LWR CASE ASSY

34111-14J00

$101.20

4

.CUSHION,METER

34955-33E00

$3.26

5

SCREW (3X16)

09132-03008

$1.55

6

CLAMP (L:45)

09404-06429

$1.82

7

CUSHION,SPEEDOMETER

34955-13E01

$2.80

8

SCREW,SPEEDOMETER

34149-18G00

$2.71

9

PLATE

34157-47H00

$33.32

10

ROTOR,SPEED

34981-38G01

$16.40

11

SENSOR,SPEED

34990-35F00

$120.25

12

BOLT

07120-0512A

$2.29

13

BOLT

07130-0825A

$2.80
