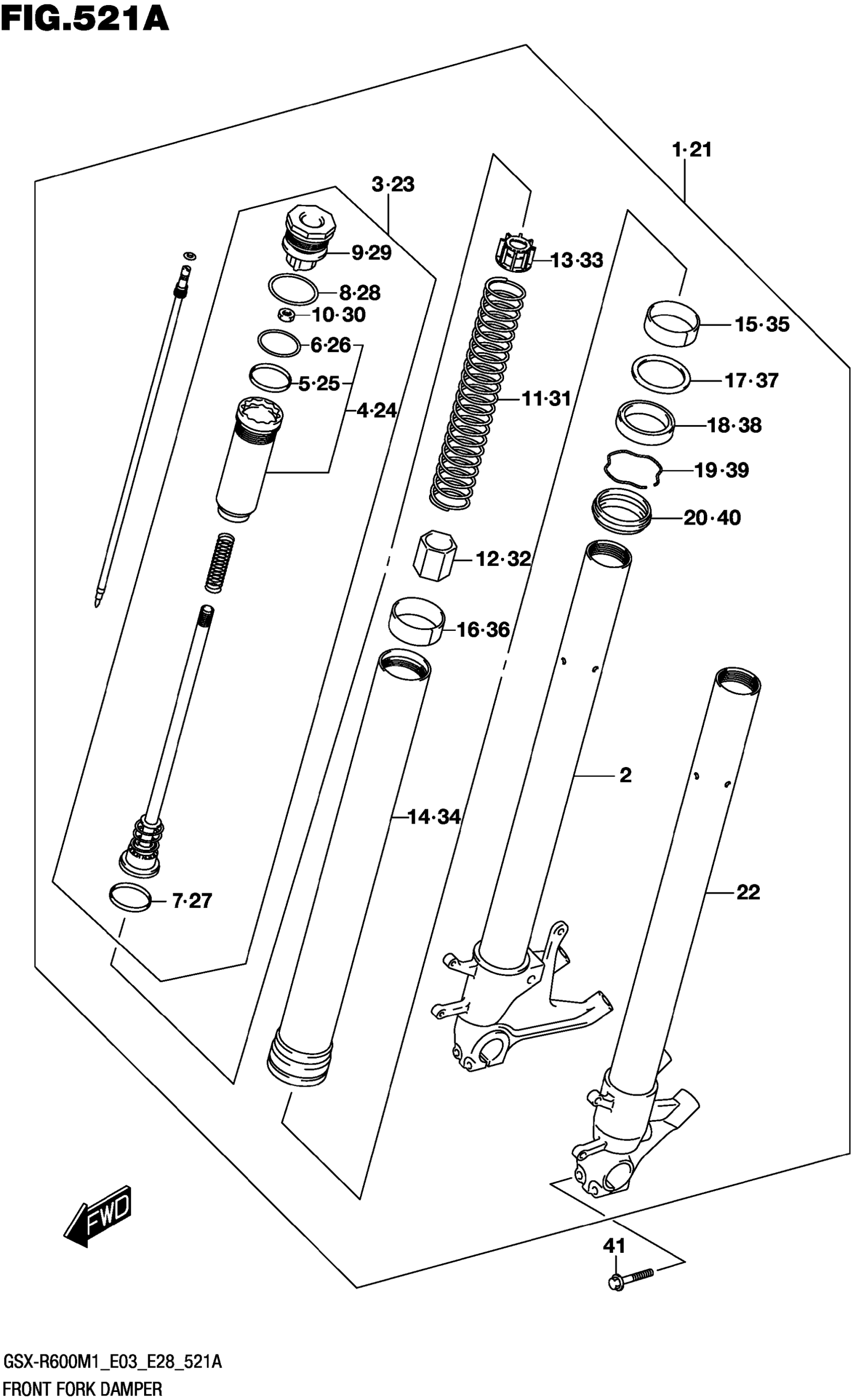

Suzuki GSX-R600M1 (2021) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER FRONT,RH

51103-14J11

$2,366.07

2

.TUBE,INNER,R

51110-14J00

$959.40

3

.ROD,PISTON

52110-14J00

Unavailable

4

..CASE,ROD GUIDE

51174-14J00

$170.68

5

...PISTON RING

51118-14J10

$59.64

6

...O-RING

51187-14J00

$3.34

7

..RING,PISTON

51118-14J00

$8.64

8

..O-RING,FORK BOLT

51187-01H00

$6.21

9

..BOLT

51189-14J00

$208.25

10

..NUT

51827-29G00

Unavailable

11

.SPRING

51171-14J10

Unavailable

12

.COLLAR,SPRING

51176-14J10

$28.13

13

.COLLAR,SPRING

51175-14J00

$10.82

14

.TUBE,OUTER

51131-14J00

$754.00

15

.BUSH,GUIDE

51152-01H10

$16.70

16

.BUSH,SLIDE

51152-14J00

$13.01

17

.SPACER,SEAL

51168-38B00

$6.12

18

.SEAL,OIL

51153-01H10

$24.63

19

.RING,STOPPER

51556-38B00

$6.61

20

.SEAL,DUST

51173-01H00

$10.66

21

DAMPER FRONT,LH

51104-14J11

$2,366.07

22

.TUBE,INNER,L

51120-14J00

$977.50

23

.ROD,PISTON

52110-14J00

Unavailable

24

..CASE,ROD GUIDE

51174-14J00

$170.68

25

...PISTON RING

51118-14J10

$59.64

26

...O-RING

51187-14J00

$3.34

27

..RING,PISTON

51118-14J00

$8.64

28

..O-RING,FORK BOLT

51187-01H00

$6.21

29

..BOLT

51189-14J00

$208.25

30

..NUT

51827-29G00

Unavailable

31

.SPRING

51171-14J10

Unavailable

32

.COLLAR,SPRING

51176-14J10

$28.13

33

.COLLAR,SPRING

51175-14J00

$10.82

34

.TUBE,OUTER

51131-14J00

$754.00

35

.BUSH,GUIDE

51152-01H10

$16.70

36

.BUSH,SLIDE

51152-14J00

$13.01

37

.SPACER,SEAL

51168-38B00

$6.12

38

.SEAL,OIL

51153-01H10

$24.63

39

.RING,STOPPER

51556-38B00

$6.61

40

.SEAL,DUST

51173-01H00

$10.66

41

BOLT

51321-36F00

$5.44
