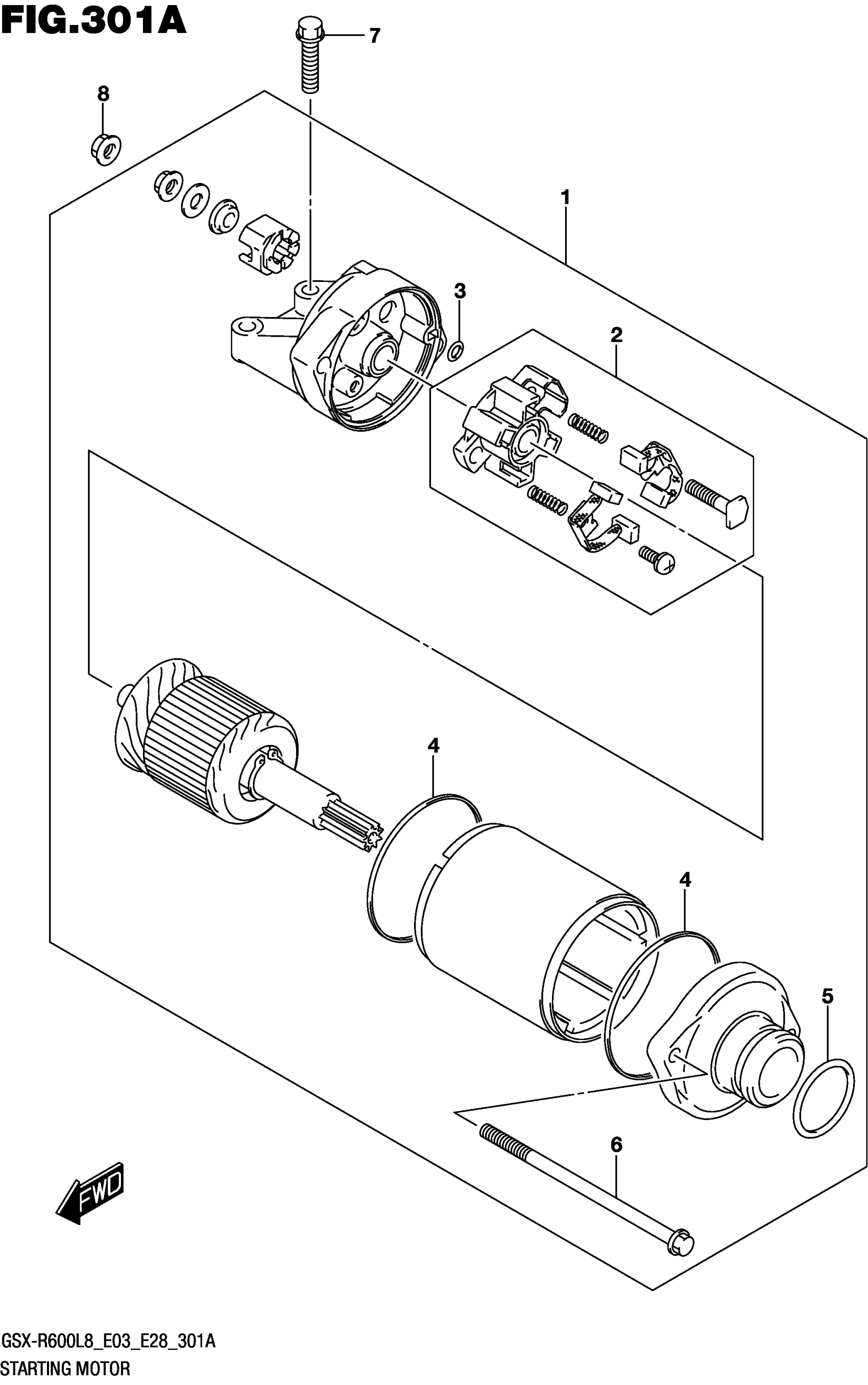

Suzuki GSX-R600L8 (2018) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-14J10

$650.35

2

.BRUSH HOLDER SET

31132-38F10

$51.95

3

.O RING

31143-49040

$3.50

4

.SQUARE

31264-38F10

$9.50

5

.O RING

31156-98E00

$3.66

6

.BOLT

31280-38F10

Unavailable

7

BOLT

01547-0625A

$2.01

8

NUT

08361-3506A

$1.81
