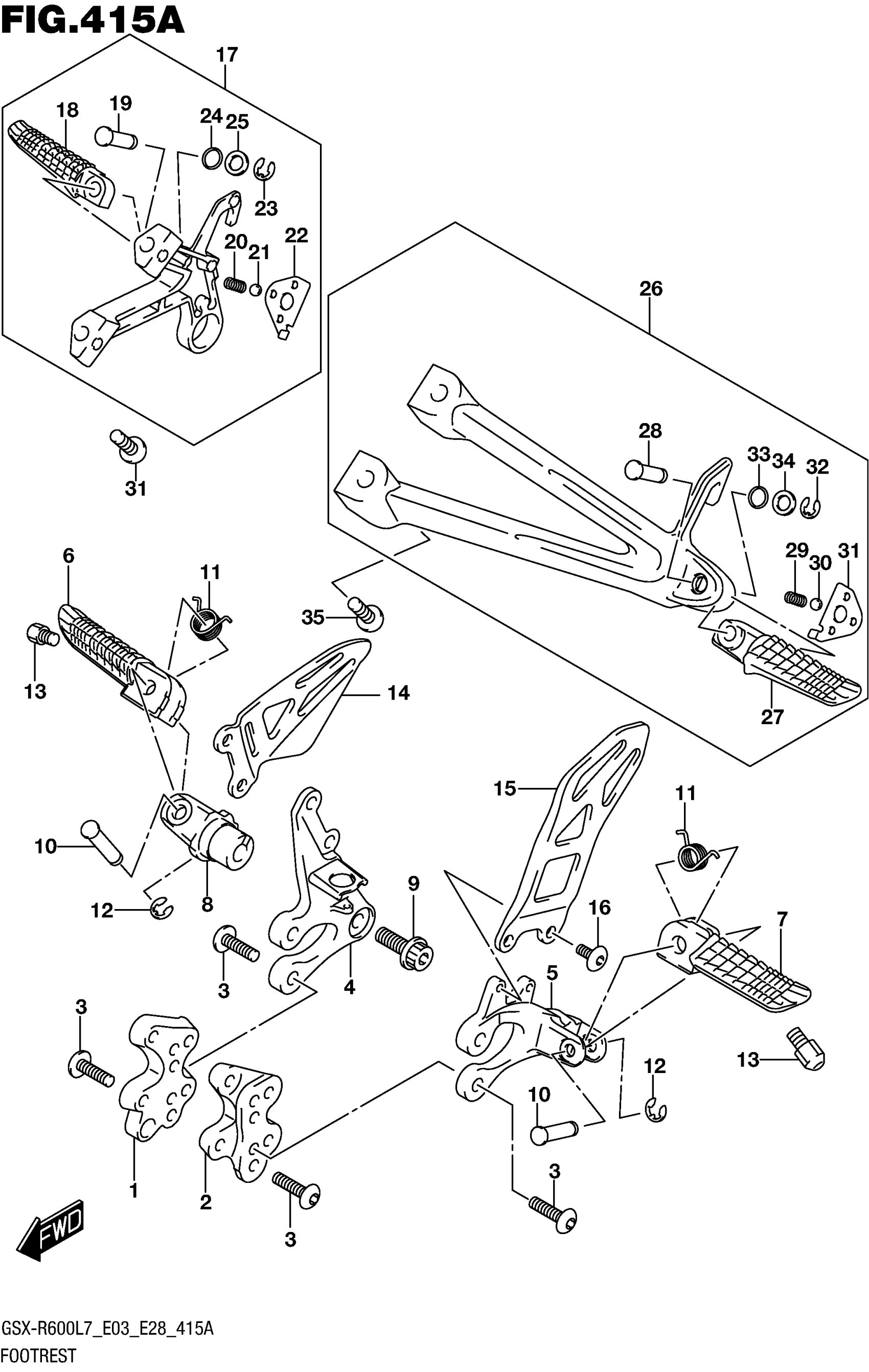

Suzuki GSX-R600L7 (2017) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST NO.1,R

43541-14J10

$36.23

2

BRACKET,FR FOOTREST NO.1,L

43551-14J10

$36.23

3

BOLT (8X23)

09106-08186

$3.08

4

BRACKET,FR FOOTREST NO.2,R

43511-14J10

$83.81

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

$79.98

6

BAR,FRONT FOOTREST,R

43516-37H10

$30.90

7

BAR,FRONT FOOTREST,L

43526-37H10

$47.67

8

HOLDER,FOOTREST

43531-41G20

$100.83

9

BOLT (10X28)

09106-10064

$4.42

10

PIN

09208-08018

$2.77

11

SPRING, FRONT FOOTREST

43581-47H00

$3.05

12

E RING

08332-1106A

$1.43

13

BOLT,BANK SENSOR

43576-07D10

$6.83

14

GUARD,FR FOOTREST,R

43571-47H30

$87.78

15

GUARD,FR FOOTREST,L

43576-47H40

$91.73

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST ASSY,PILLION,R

43600-14J30

$156.09

18

BAR,PILLION FOOTREST,R

43611-37H30

$57.52

19

.PIN

09208-08020

$3.62

20

SPRING

09440-05003

$1.48

21

BALL

06111-07004

$1.22

22

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

23

.E RING

08332-1106A

$1.43

24

.O RING (D:2.4,ID:6.9)

09280-08013

$2.67

25

WASHER This part replaces 09160-08091.

09160-08082

$1.64

26

FOOTREST ASSY,PILLION,L

43700-14J30

$209.83

27

BAR,PILLION FOOTREST,L

43621-37H30

$62.92

28

.PIN

09208-08020

$3.62

29

SPRING

09440-05003

$1.48

30

BALL

06111-07004

$1.22

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

32

.E RING

08332-1106A

$1.43

33

.O RING (D:2.4,ID:6.9)

09280-08013

$2.67

34

WASHER This part replaces 09160-08091.

09160-08082

$1.64

35

BOLT (8X23)

09106-08186

$3.08
