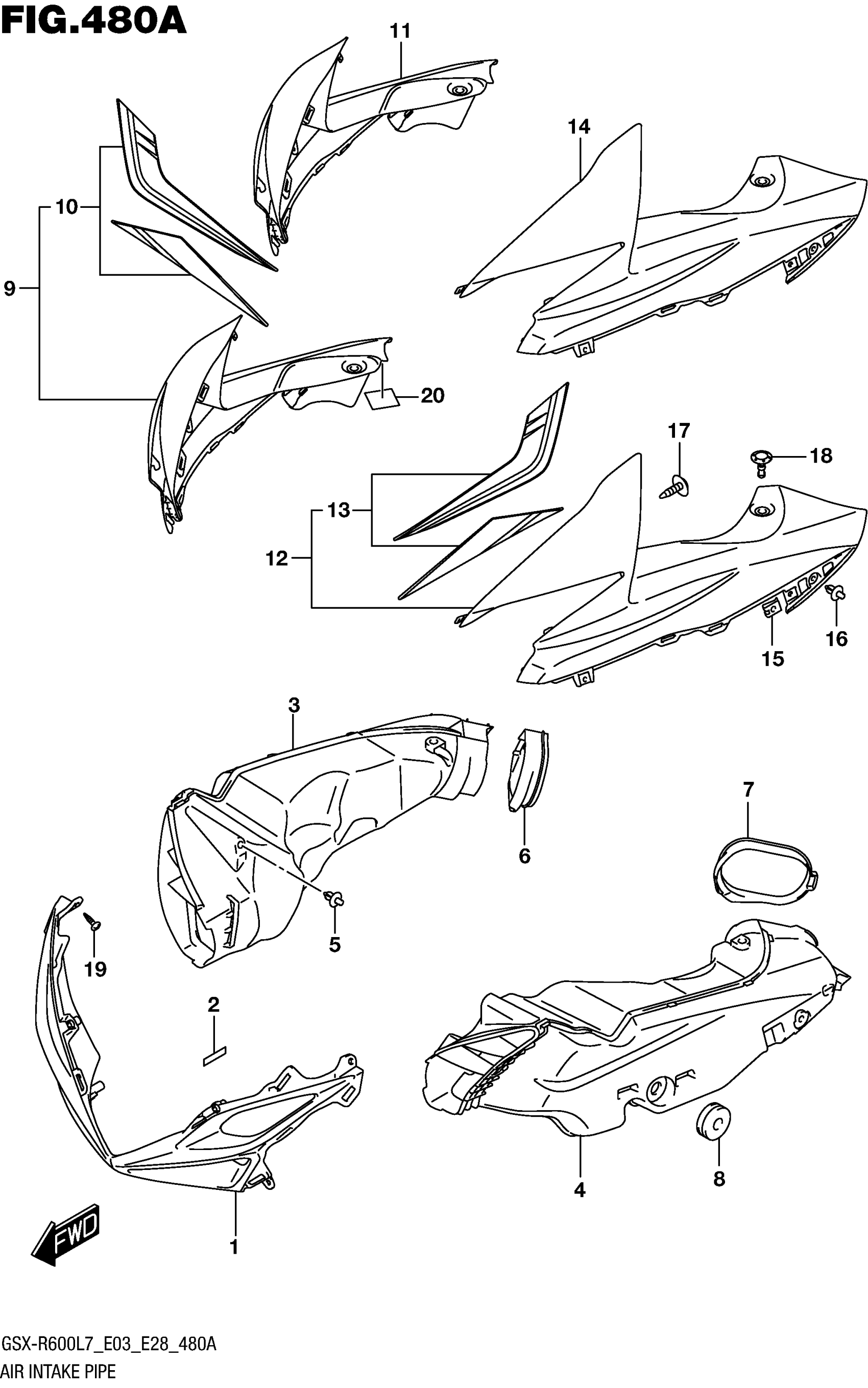

Suzuki GSX-R600L7 (2017) AIR INTAKE PIPE Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLACK)

94671-14J10-YKV

$251.25

2

TAPE (6X25X0.13)

94443-06G00

$2.97

3

PIPE,AIR INTAKE RH

94420-14J00

$107.97

4

PIPE,AIR INTAKE LH

94430-14J00

$108.98

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION

09320-08028

$2.80

9

COVER COMP,INTA | FOR YSF This part replaces 94670-14J20-YSF.

94670-14J21-YSF

$193.28

10

.TAPE, INTAKE COVER RH | FOR YSF

68270-14J10-BDH

$39.80

10

(BLUE/WHITE)

68270-14J10-BDH

$39.80

11-1

COVER,INTAKE,R (BLACK) | FOR YKV This part replaces 94672-14J00-YKV.

94672-14J01-YKV

$145.53

11-2

COVER,INTAKE,R | FOR KGK This part replaces 94672-14J00-YMF.

94672-14J01-YMF

$182.33

12

COVER COMP,INTA | FOR YSF This part replaces 94680-14J20-YSF.

94680-14J21-YSF

$172.03

13

.TAPE, INTAKE COVER LH | FOR YSF

68280-14J10-BDH

$39.80

13

(BLUE/WHITE)

68280-14J10-BDH

$39.80

14-1

COVER,INTAKE,L (BLACK) | FOR YKV This part replaces 94682-14J00-YKV.

94682-14J01-YKV

$148.30

14-2

COVER,INTAKE,L | FOR KGK This part replaces 94682-14J00-YMF.

94682-14J01-YMF

$193.28

15

NUT

09148-05052

$3.04

16

CLIP (BLACK)

09409-06314-5PK

$2.80

17

SCREW (5X12)

09132-05050

$1.89

18

CLIP, REAR

94479-35F00

$5.14

19

SCREW

03541-0512A

$1.37

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80

21

COLOR :

SPECIAL NOTE

Unavailable

21

KGK=YMF(YELLOW),YVB(BLACK)

SPECIAL NOTE

Unavailable
