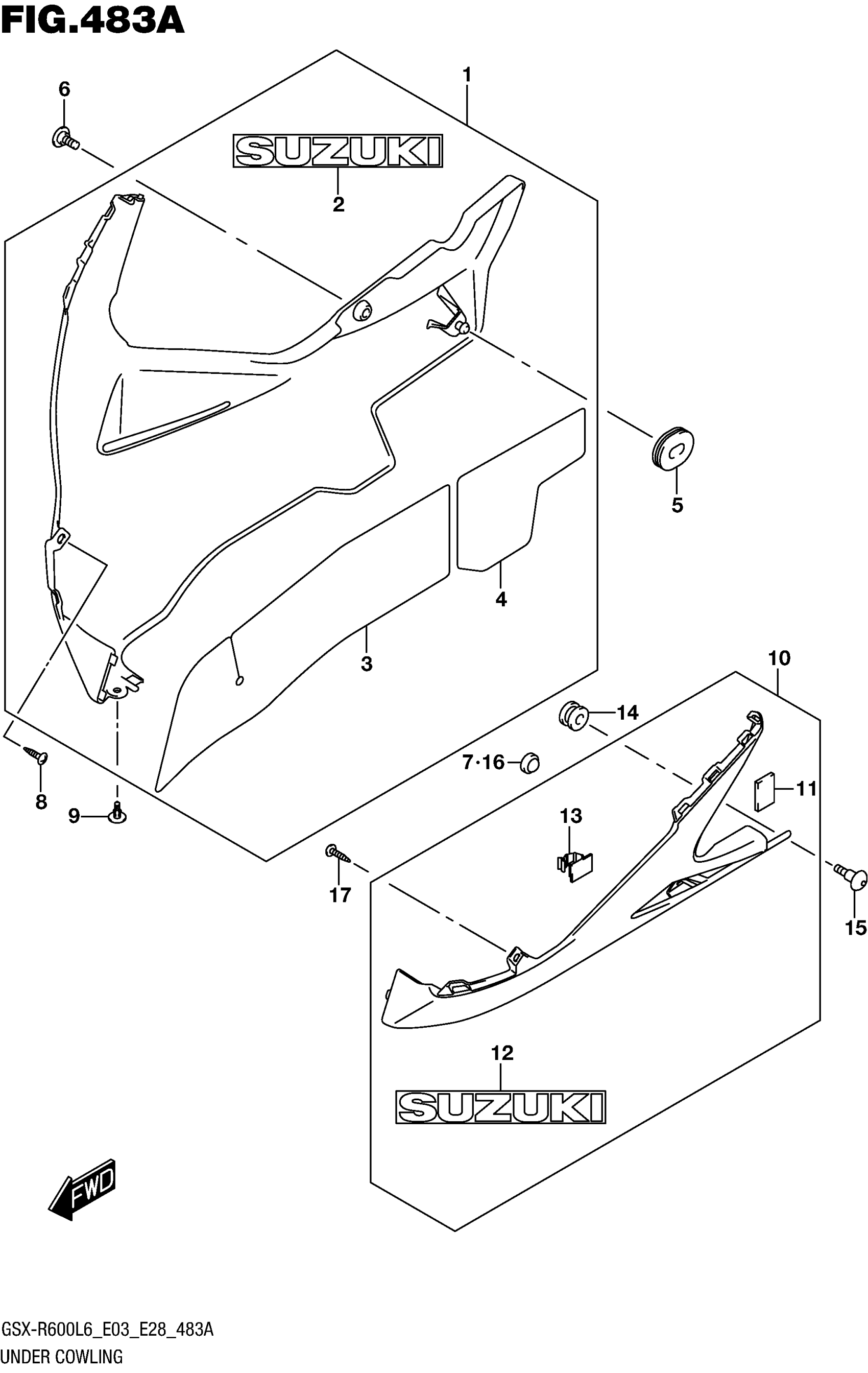

Suzuki GSX-R600L6 (2016) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (RED) | FOR YSF

94470-14J00-BDX

$323.73

1-2

COWLING, UNDER RH (WHITE) | FOR AJP

94470-14J00-AHX

Unavailable

1-3

COWLING, UNDER RH (RED) | FOR ARB

94470-14J00-ASX

$355.62

2-1

.EMBLEM (WHITE) | FOR BDX

68181-33C20-YWW

$32.42

2-2

.EMBLEM (RED) | FOR AHX

68181-33C20-YVZ

$27.30

2-3

.EMBLEM (BLACK) | FOR ASX

68181-33C20-019

$25.58

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.66

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.29

7

CUSHION

09321-10018

$4.33

8

SCREW

03541-0512A

$1.41

9

CLIP

94479-35F00

$5.38

10-1

COWLING,UNDER,L | FOR YSF This part replaces 94480-14J00-BDX.

94480-14J01-BDX

$315.62

10-2

COWLING, UNDER LH (WHITE) | FOR AJP

94480-14J00-AHX

Unavailable

10-3

COWLING,UNDER,L | FOR ARB This part replaces 94480-14J00-ASX.

94480-14J01-ASX

$281.13

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12-1

.EMBLEM (WHITE) | FOR BDX

68181-33C20-YWW

$32.42

12-2

.EMBLEM (RED) | FOR AHX

68181-33C20-YVZ

$27.30

12-3

.EMBLEM (BLACK) | FOR ASX

68181-33C20-019

$25.58

13

.CLAMP

09403-14311

$5.05

14

CUSHION | LH

09320-09016

$2.01

15

BOLT (6X20) | LH

09139-06190

$3.89

16

CUSHION

09321-10018

$4.33

17

SCREW

03541-0512A

$1.41

18

COLOR :

SPECIAL NOTE

Unavailable

18

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

18

:

SPECIAL NOTE

Unavailable

18

ARB=YVZ(RED),YKV(BLACK)

SPECIAL NOTE

Unavailable
