2016 Suzuki GSX-R600L6 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2016 Suzuki GSX-R600L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

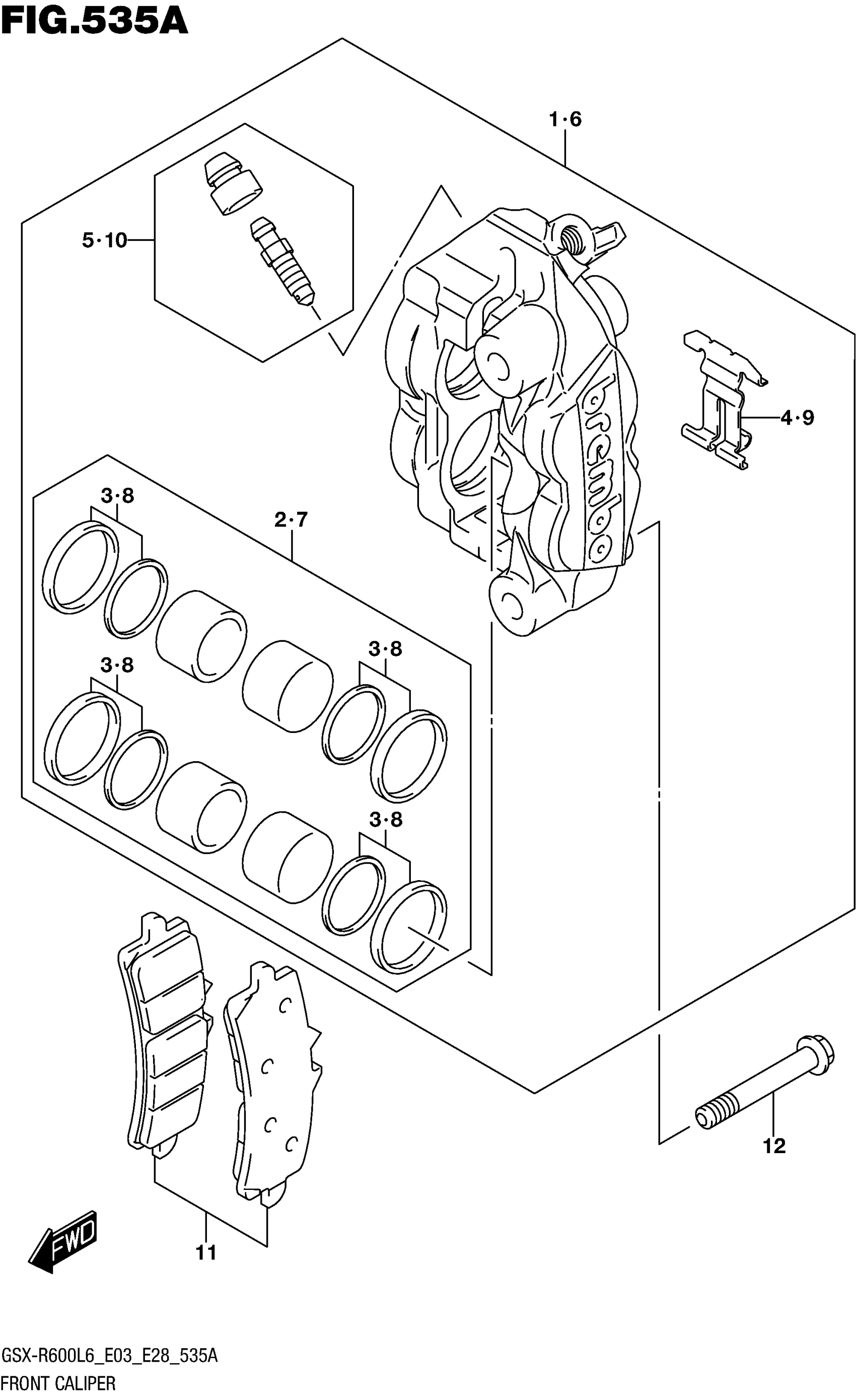

2016 Suzuki GSX-R600L6 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

1

$443.07

In stock

1-2

CALIPER ASSY, FRONT RH | OPT:TITAN

59110-14JA0

1
Out of stock

2

.PISTON SET

59100-14810

1

$101.14

In stock

3

..SEAL SET, PISTON

59100-14820

1

$63.14

In stock

4

.SPRING, PAD

59151-14J00

1

$24.03

In stock

5

.BLEEDER SET

59100-14840

1

$25.85

In stock

6-1

1

$443.07

In stock

6-2

CALIPER ASSY, FRONT LH | OPT:TITAN

59310-14JA0

1
Out of stock

7

.PISTON SET

59100-14810

1

$101.14

In stock

8

..SEAL SET, PISTON

59100-14820

1

$63.14

In stock

9

.SPRING, PAD

59151-14J00

1

$24.03

In stock

10

.BLEEDER SET

59100-14840

1

$25.85

In stock

11

2

$56.38

In stock

12

BOLT (10X70)

09103-10429

4

$14.90

In stock
