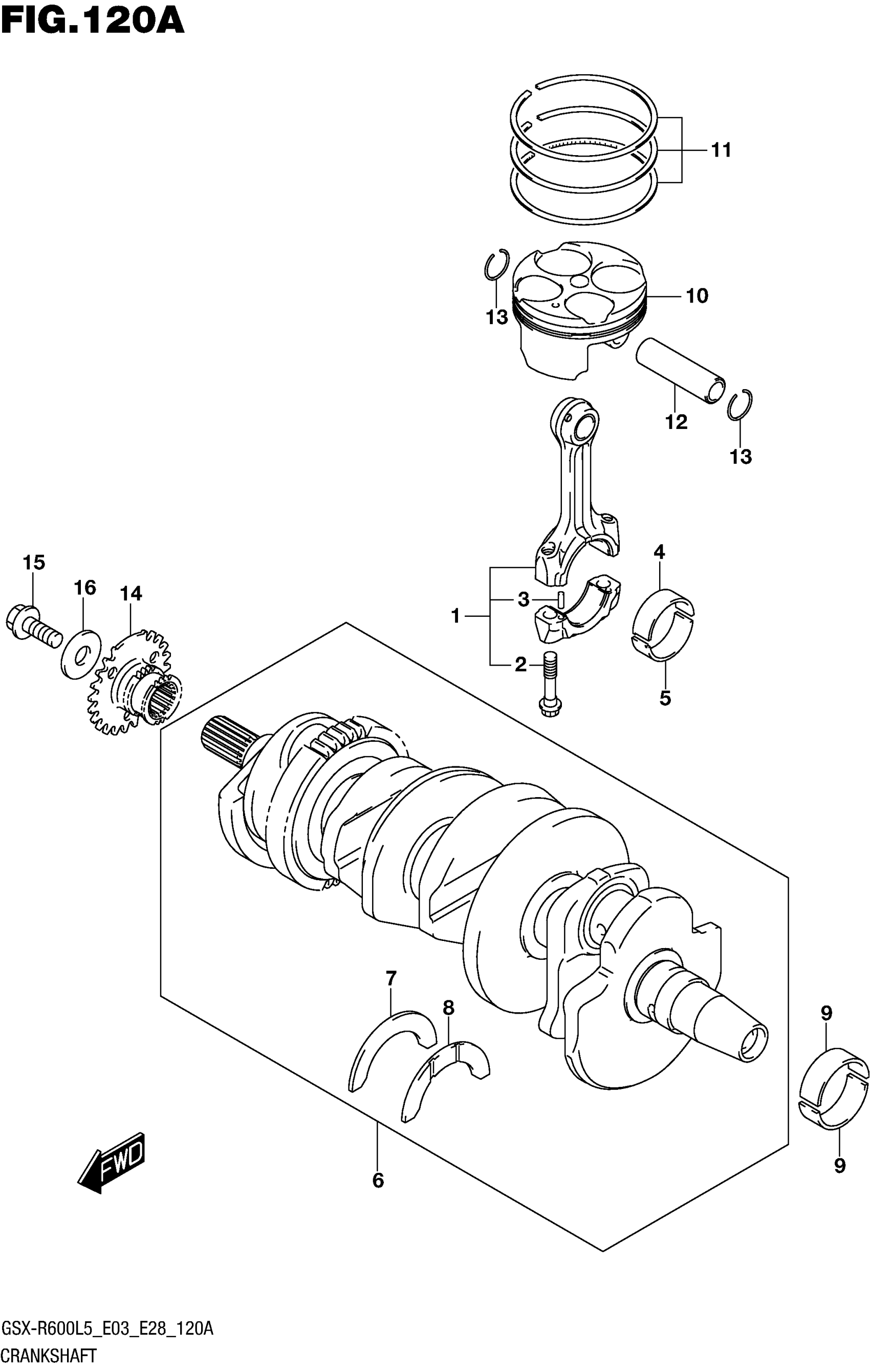

Suzuki GSX-R600L5 (2015) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-14J10

$253.68

2

BOLT

12163-35F00

$9.79

3

PIN (4X13.8)

04221-04089

$1.15

4

BEARING,CRANK PIN

12164-14J00-0A0

$22.95

4

BEARING,CRANK PIN

12164-14J00-0B0

$23.61

4

BEARING,CRANK PIN

12164-14J00-0C0

$22.95

4

BEARING,CRANK PIN

12164-14J00-0D0

$31.85

5

BEARING, LOWER (GREEN)

12164-29G00-0A0

$13.36

5

BEARING, LOWER (BLACK)

12164-29G00-0B0

$13.73

5

BEARING, LOWER (BROWN)

12164-29G00-0C0

$13.36

5

BEARING, LOWER (YELLOW)

12164-29G00-0D0

$14.26

6

CRANKSHAFT SET

12000-01820

$1,906.35

7

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.36

8

BEARING, THRUST LH (RED)

12228-17E00-0A0

$12.85

8

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.54

8

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.54

8

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.36

8

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

8

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

9

BEARING,CRANKSHAFT

12229-01H00-0A0

$17.41

9

BEARING,CRANKSHAFT

12229-01H00-0B0

$17.41

9

BEARING,CRANKSHAFT

12229-01H00-0C0

$17.41

9

BEARING,CRANKSHAFT

12229-01H00-0D0

$17.49

9

BEARING,CRANKSHAFT

12229-01H00-0E0

$24.38

10

PISTON

12111-14J00-0F0

$226.95

11

RING SET,PISTON

12140-29G20

$83.50

12

PIN,PISTON

12151-14J00

$19.78

13

RING

09381-14001

$1.46

14

SPROCKET, CAM CHAIN (NT:17)

12731-01H00

$146.42

15

BOLT (10X23)

09103-10189

$3.83

16

WASHER

08211-10285

$3.32
