2014 Suzuki GSX-R600L4 Radiator Diagram

← All diagrams

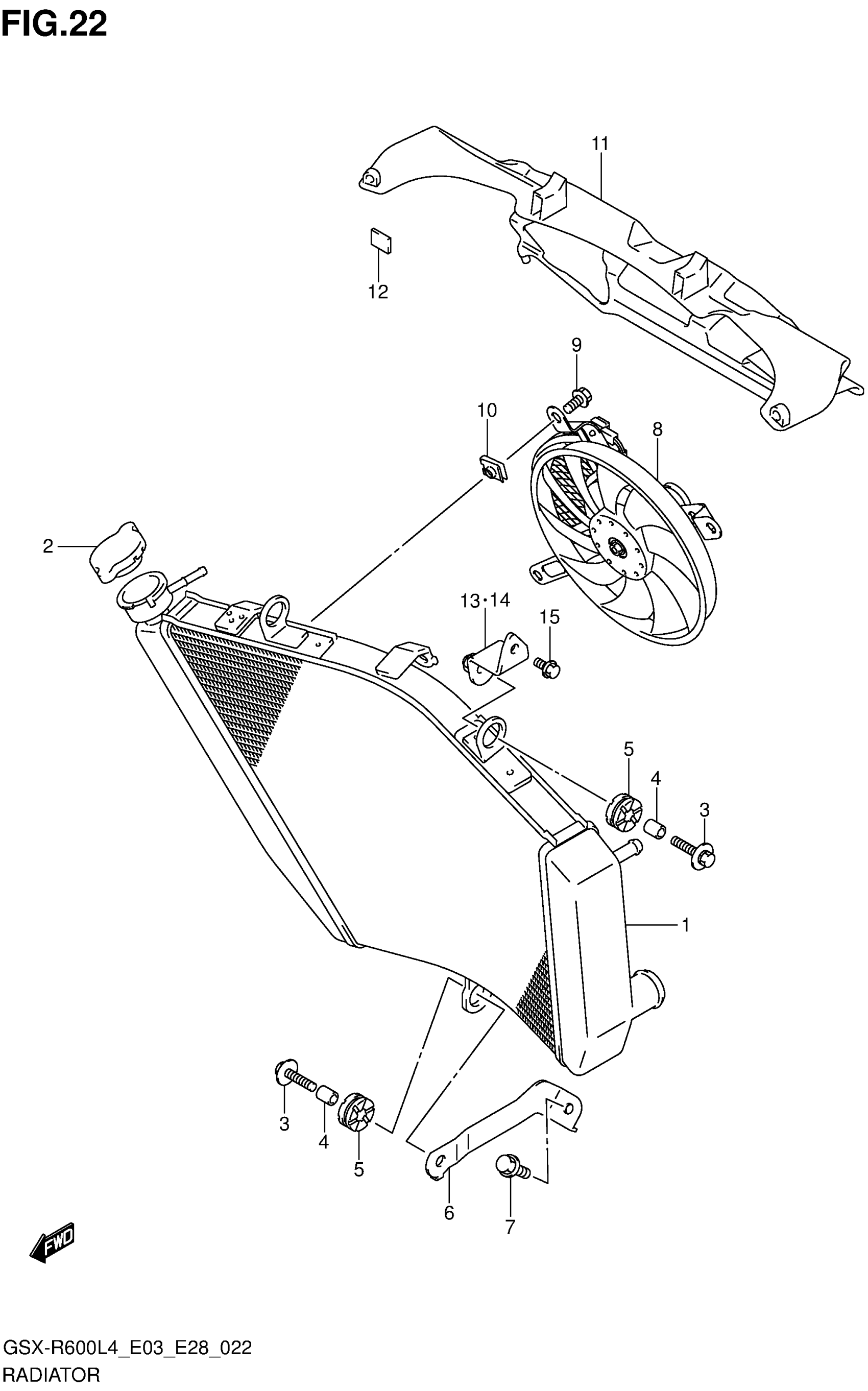

Find the part on the Radiator diagram for your 2014 Suzuki GSX-R600L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX-R600L4 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSY,WATER

17710-14J00

1
Out of stock

2

CAP

17730-14G00

1
Out of stock

3

BOLT (6X25)

09118-06097

3
Out of stock

4

SPACER (6.5X10X12)

09180-06290

3
Out of stock

5

CUSHION

09320-10051

3
Out of stock

6

BRACKET,RADIATOR

17750-14J00

1
Out of stock

7

BOLT

01550-0612A

1
Out of stock

8

FAN ASSY,RADIATOR This part replaces 17800-14J00.

17800-14J01

1
Out of stock

9

BOLT,FAN ASSY

17711-14G00

3
Out of stock

10

NUT

17802-14F00

2
Out of stock

11

SHIELD,RADIATOR HEAT

17771-14J00

1
Out of stock

12

CUSHION, HEAT SHIELD

61544-94500

2
Out of stock

13

BRACKET,RADIATOR UPR,R

17741-14J00

1
Out of stock

14

BRACKET,RADIATOR UPR,L

17742-14J00

1
Out of stock

15

BOLT

01550-0616A

2
Out of stock
