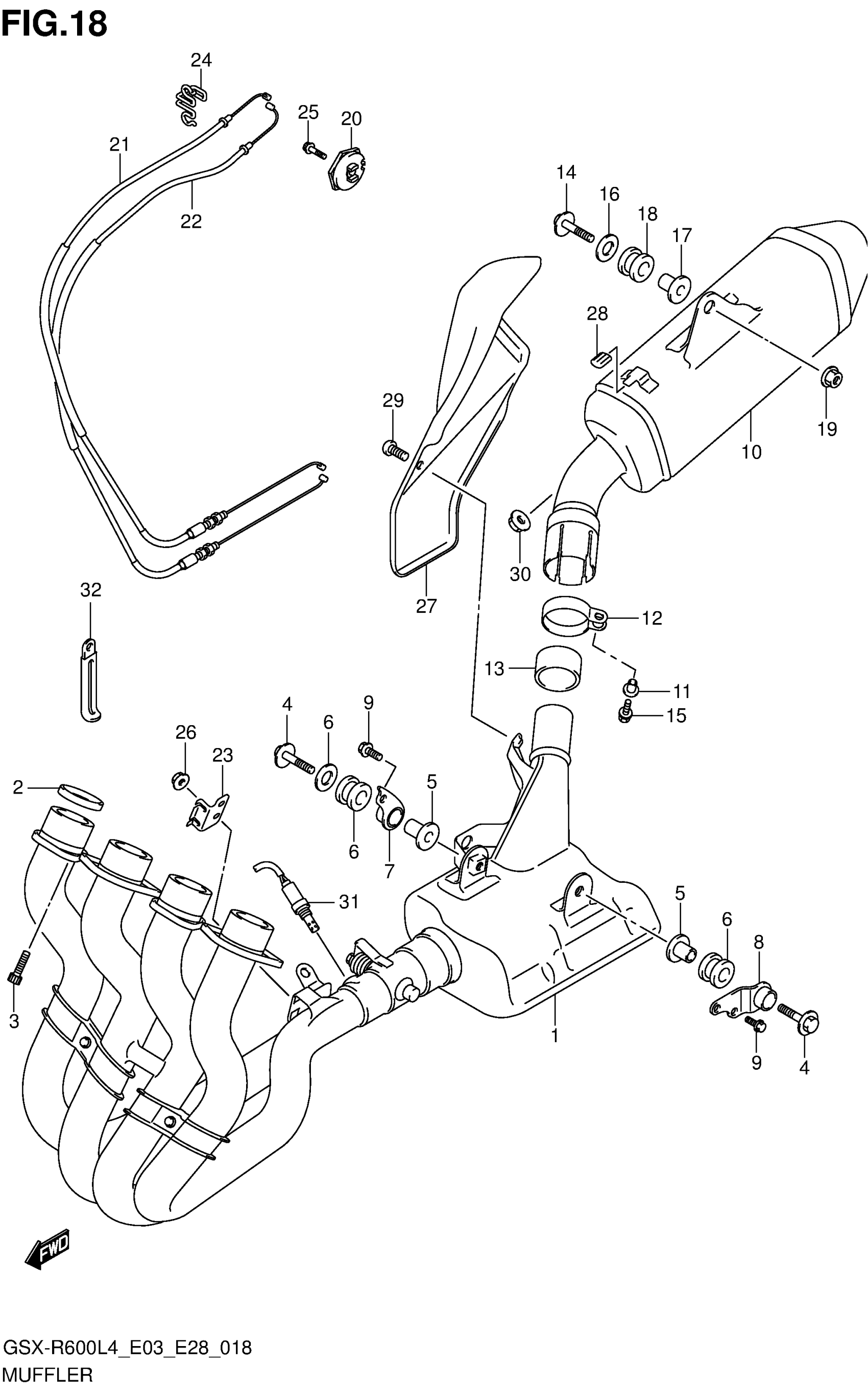

Suzuki GSX-R600L4 (2014) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-14J00

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$6.61

3

BOLT (8X25)

09106-08165

$3.69

4

BOLT (8X45)

09118-08152-A05

$4.73

5

SPACER (8.6X12X24.2)

09180-08152

$5.26

6

CUSHION

09320-12077

$10.78

7

BRACKET,CHAMBER SPRT,R

14770-14J00

$20.42

8

BRACKET,CHAMBER SPRT,L

14773-14J00

$26.12

9

BOLT (8X16)

01550-0816A

$2.31

10

BODY,MUFFLER

14310-14J00-H01

$2,240.88

11

SPACER,MUF CLAMP

14458-14J00

$8.32

12

CLAMP,MUF CONN

14459-21H40

$29.32

13

CONNECTOR, MUFFLER

14771-42F10

$21.17

14

BOLT (8X45)

09103-08358

$3.08

15

BOLT (8X40)

09103-08392

$3.41

16

WASHER (8.5X28X1.5)

09160-08142

$2.80

17

SPACER (8.6X12X24.2)

09180-08152

$5.26

18

CUSHION

09320-12048

$4.62

19

NUT

08361-2508A

$1.97

20

PULLEY, CONTROLLER

11269-18G01

$32.50

21

CABLE,EXH VALVE NO.1

11276-14J00

$89.40

22

CABLE,EXH VALVE NO.2

11277-14J00

$89.40

23

BRACKET, EXH VALVE CABLE

14250-21H00

$11.18

24

GUIDE, EXH VALVE CABLE

14252-14J00

$8.32

25

BOLT

01547-0516A

$1.68

26

NUT

08316-1006A

$2.19

27

COVER,MUFFLER FR

14780-14J00

$298.42

28

GROMMET

14795-10FA0

$5.26

29

SCREW (6X10)

09139-06172

$2.80

30

CUSHION (8.4X18X6)

09320-08066

$7.44

31

SENSOR, OXYGEN

18213-23H01

$440.57

32

CLAMP (L:45)

09404-06429

$1.82
