2014 Suzuki GSX-R600L4 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2014 Suzuki GSX-R600L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

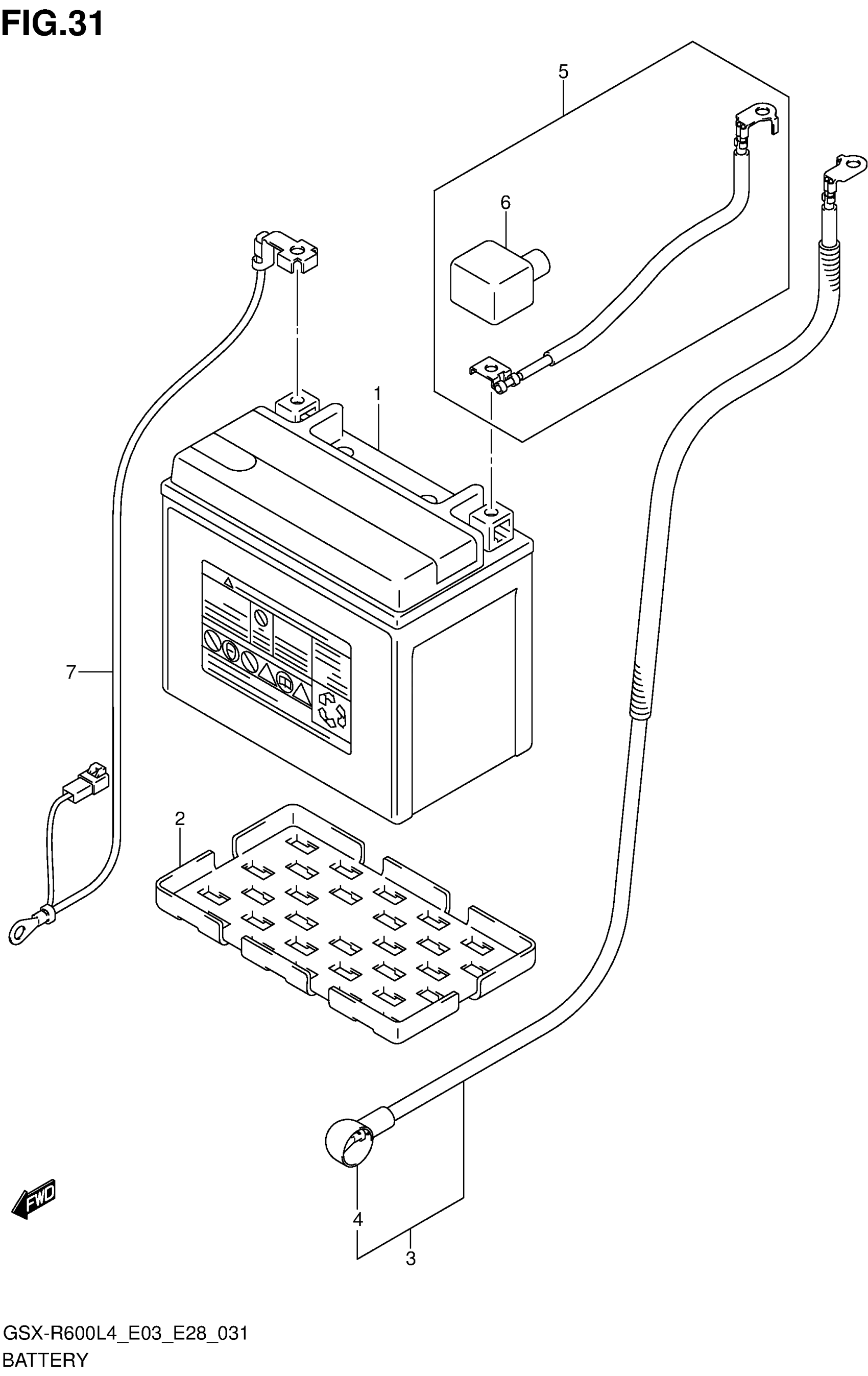

2014 Suzuki GSX-R600L4 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,8AH) This part replaces 33610-33E21.

33610-33E20

1
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

WIRE,STARTER MOTOR LEAD This part replaces 33810-14J00.

33810-14J01

1
Out of stock

4

CAP, STARTER MOTOR TERMINAL

33624-18H10

1
Out of stock

5

WIRE,BATTERY PLUS LEAD This part replaces 33820-14J00.

33820-14J01

1
Out of stock

6

CAP, BATTERY PLUS

33624-16G00

1
Out of stock

7

WIRE,BATTERY MINUS This part replaces 33860-14J00.

33860-14J01

1
Out of stock
← Steering Stem Electrical →

More Electrical diagrams
