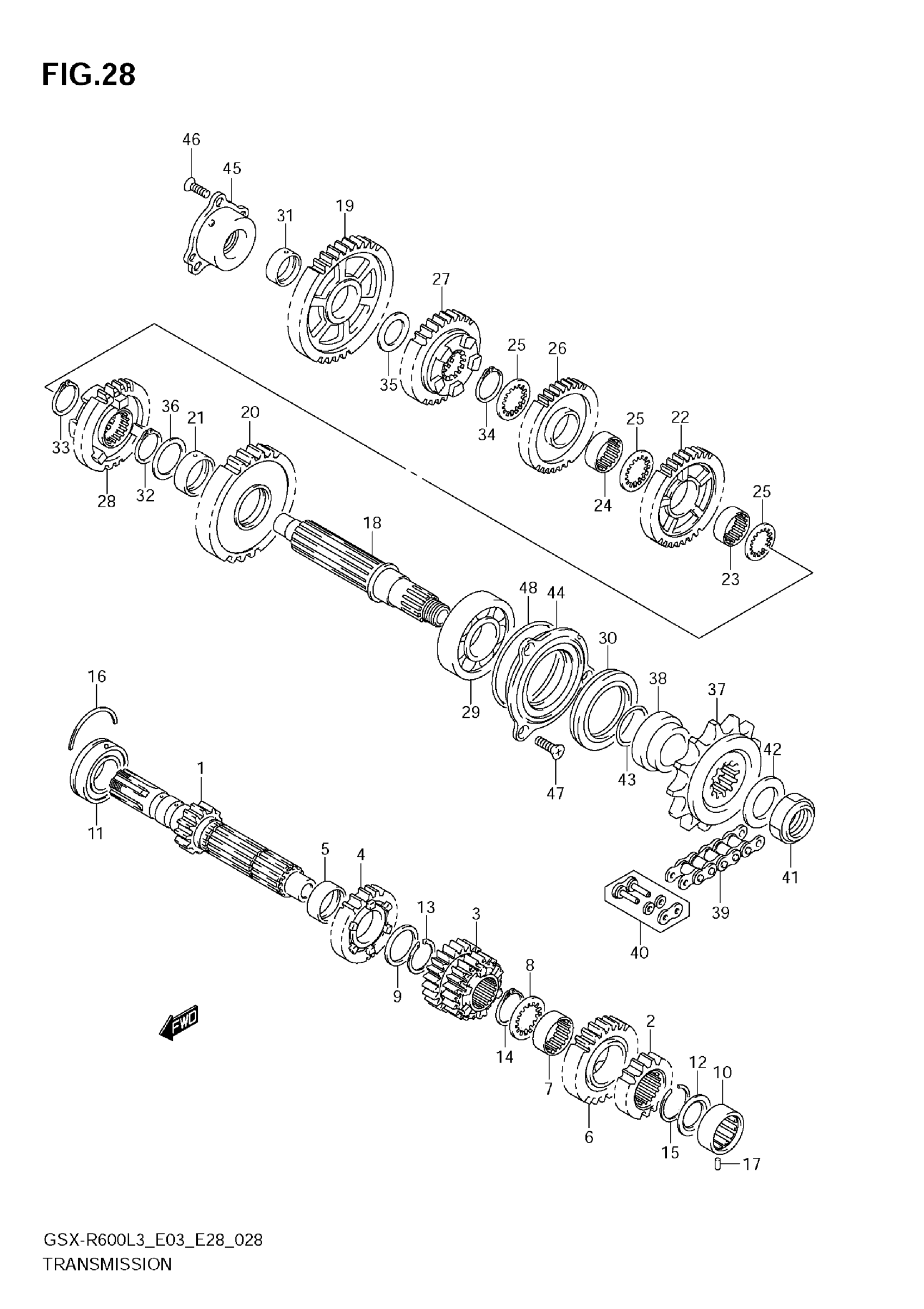

Suzuki GSX-R600L3 (2013) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:14)

24120-14J00

$367.67

2

GEAR, 2ND DRIVE (NT:19)

24221-14J00

$105.48

3

GEAR, 3RD & 4TH (NT:21/24)

24231-14J00

$235.60

4

GEAR, 5TH DRIVE (NT:23)

24251-01H00

$189.32

5

BUSH 5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR, 6TH DRIVE (NT:24)

24261-14J00

Unavailable

7

BUSH, 6TH DRIVE GEAR

24262-35F10

$32.40

8

LOCK WASHER

09167-27001

$2.56

9

WASHER (27X36X1)

09160-27008

$4.00

10

BEARING (20X34X13.5) | LH

09263-20087

$54.53

11

BEARING (25X62X17) | RH

09262-25150

$89.78

12

OIL SEAL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.33

16

C RING

09390-62012

$6.69

17

PIN (6X10)

09261-06003

$1.49

18

SHAFT,DRIVE

24131-14J00

$363.07

19

GEAR, 1ST DRIVEN (NT:39)

24311-14J00

$187.45

20

GEAR, 2ND DRIVEN (NT:39)

24321-14J00

$187.45

21

BUSH, 2ND DRIVEN

24322-35F00

$23.28

22

GEAR, 3RD DRIVEN (NT:36)

24331-14J00

$192.08

23

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

24

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

25

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

26

GEAR, 4TH DRIVEN (NT:36)

24341-14J00

$196.77

27

GEAR, 5TH DRIVEN (NT:31)

24351-01H01

Unavailable

28

GEAR, 6TH DRIVEN (NT:26)

24361-14J00

$181.10

29

BEARING (28X68X18) | LH

09262-28045

$113.28

30

OIL SEAL (42X62X7)

09283-42018

$32.83

31

BUSH (22X26X9)

09300-22008

$16.03

32

CIRCLIP

09380-27006

$2.73

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

SHIM (22X34X1)

09181-22223

$2.85

36

WASHER (27X36X1)

09160-27008

$4.00

37

SPROCKET, ENGINE (NT:16)

27510-20A10

$82.07

38

SPACER,ENGINE SPROCKET

27531-14J00

$46.80

39

CHAIN ASSY (RK525SM0Z7Y,114L)

27600-06G40-114

$221.55

40

.JOINT SET,DRIVE CHAIN | OPT

27620-06G40

$23.82

41

NUT

09159-20004

$14.15

42

WASHER (25X41X3)

09160-25009

$4.84

43

O RING (D:2.4,ID:23.7)

09280-24010

$5.09

44

RETAINER,DRIVE SHAFT BEARING,

24751-14J00

$134.52

45

HOUSING, DRIVE SHAFT SET

24771-01810

$187.45

46

SCREW (6X20)

09139-06159

$4.45

47

SCREW (6X20)

09139-06159

$4.45

48

O RING (D:1.8,ID:67.5)

09280-68010

$15.20
