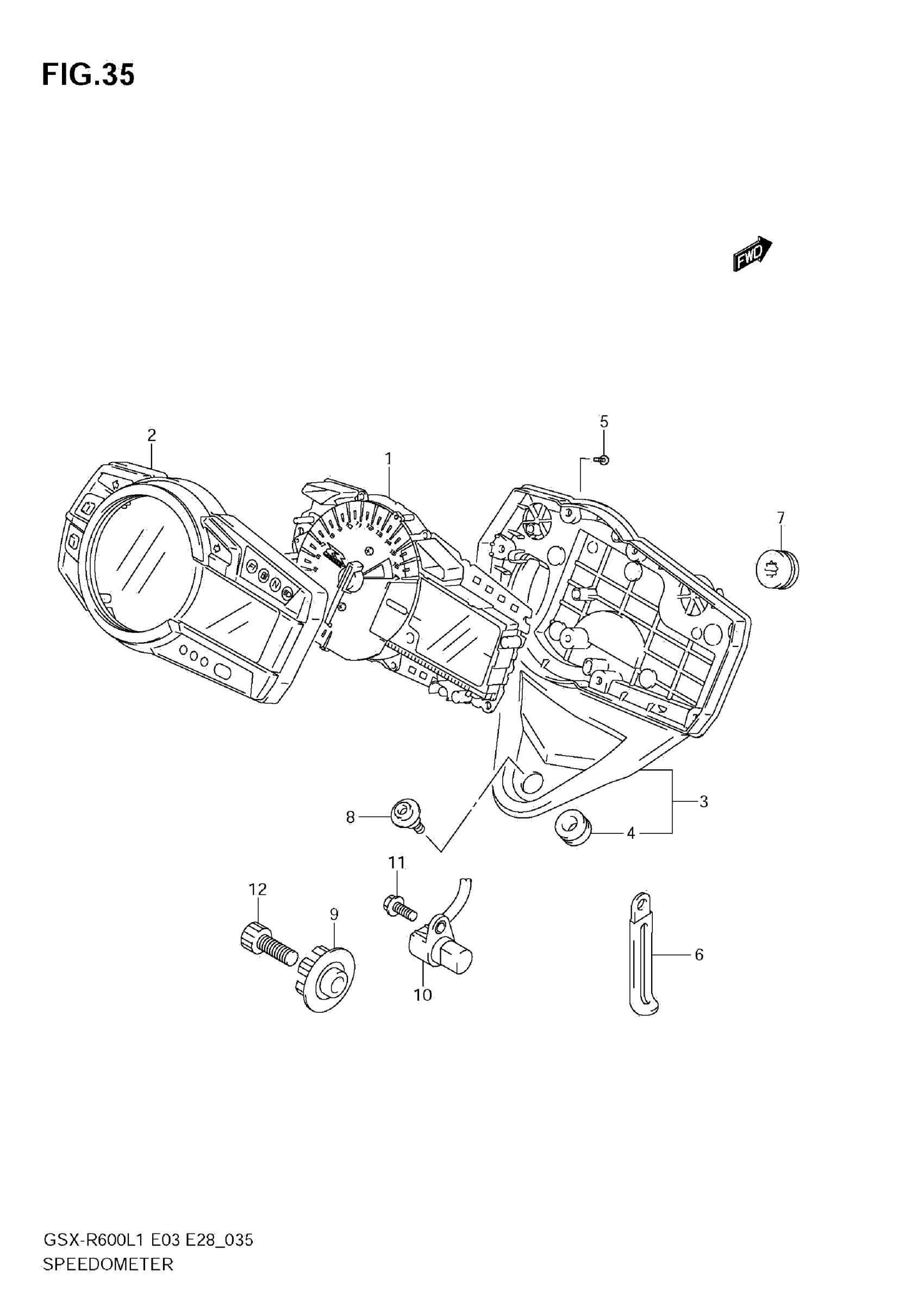

Suzuki GSX-R600L1 (2011) SPEEDOMETER (E33) Diagram

#

Description
Price

1

SPEED & TACHOMETER ASSY

34120-14J10

$1,207.22

2

CASE ASSY,UPR

34150-47H00

$189.55

3

LWR CASE ASSY

34111-14J00

$101.20

4

CUSHION

34955-33E00

$3.26

5

SCREW (3X16)

09132-03008

$1.55

6

CLAMP (L:45)

09404-06429

$1.82

7

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

8

SCREW

34149-18G00

$2.71

9

ROTOR,SPEED

34981-38G01

$16.40

10

SENSOR, SPEED

34990-35F00

$120.25

11

BOLT

07120-0512A

$2.29

12

BOLT

07130-0825B

$3.04
