2011 Suzuki GSX-R600L1 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2011 Suzuki GSX-R600L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

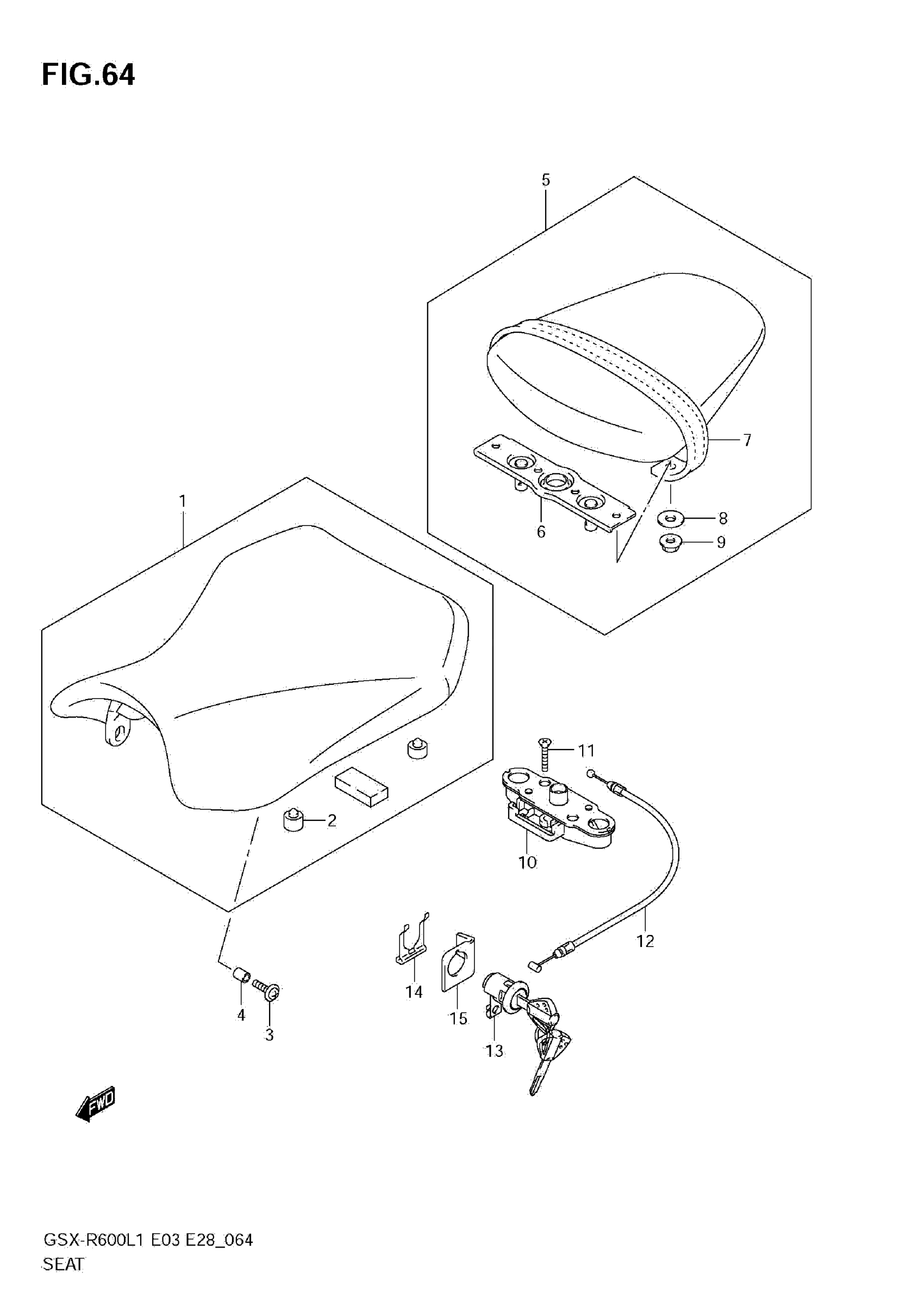

2011 Suzuki GSX-R600L1 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$256.07

In stock

2

CUSHION

09321-10034

2

$8.17

In stock

3

SCREW (6X16)

09136-06121

2

$2.92

In stock

4

SPACER (6.5X9X10.5)

09180-06264

2
Out of stock

6

1

$44.02

In stock

7

.BAND ASSY, SEAT This part replaces 45180-14J00-P3H.

45180-14J10-P3H

1
Out of stock

8

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

9

NUT

08319-3106A

2
Out of stock

10

BRACKET, SEAT SUPPORT

45220-47H00

1
Out of stock

11

SCREW

02122-0630A

2

$1.89

In stock

12

CABLE,SEAT LOCK

45280-14J00

1

$27.55

In stock

13

LOCK SET, SEAT

95700-14810

1
Out of stock

14

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

15

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock
