2011 Suzuki GSX-R600L1 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2011 Suzuki GSX-R600L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

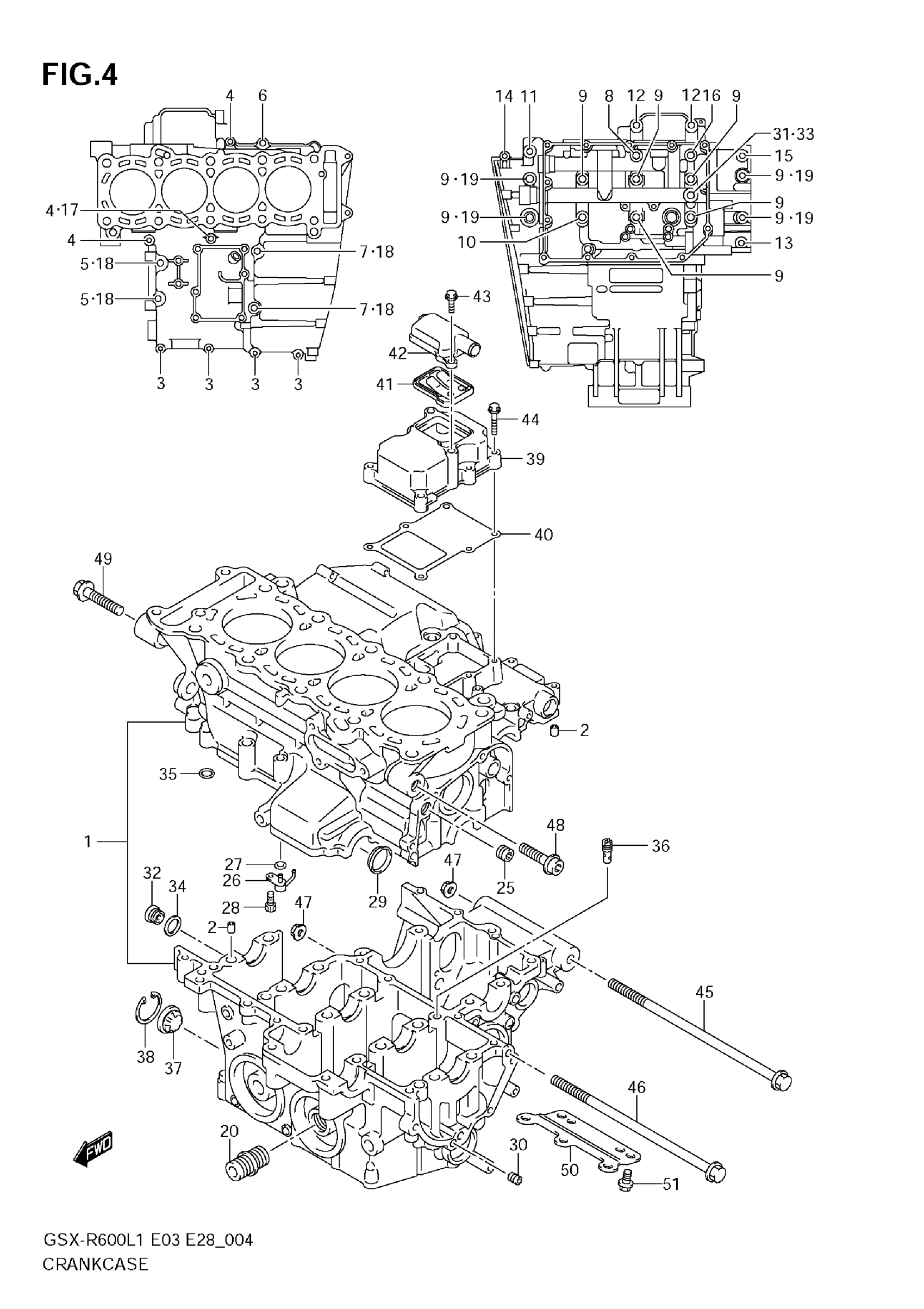

2011 Suzuki GSX-R600L1 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET This part replaces 11302-14810.

11302-14811

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

3
Out of stock

3

BOLT

01547-0635A

4
Out of stock

4

BOLT

01547-0665A

3
Out of stock

5

BOLT

01550-0850A

2
Out of stock

6

BOLT

01550-0860A

1
Out of stock

7

BOLT

01550-0875A

2
Out of stock

8

BOLT (8X105)

09103-08097

1
Out of stock

9

BOLT (9X95)

09103-09012

9
Out of stock

10

BOLT (9X80)

09103-09014

1
Out of stock

11

.BOLT

01550-0855A

1
Out of stock

12

.BOLT (8X55)

09103-08339

2
Out of stock

13

BOLT

01547-0630A

1
Out of stock

14

BOLT

01547-0645A

1
Out of stock

15

BOLT

01550-0865A

1
Out of stock

16

BOLT

01550-0885A

1
Out of stock

17

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

18

GASKET (8.2X14X1)

09168-08016

4
Out of stock

19

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

20

UNION,OIL STAND

16591-06B01

1
Out of stock

21

O RING (D:1.9,ID:99.5) | DRIVE SFT BEARING CVR NOT ILLUSTRATED

09280-00043

1
Out of stock

22

BOLT (6X20) | DRIVE SFT BEARING CVR NOT ILLUSTRATED

09139-06151

6
Out of stock

23

BEARING, THRUST RH (GREEN) | SEE ILLUST ON FIG.7

12228-17E00-0D0

1
Out of stock

24

BEARING, THRUST LH (RED) | SEE ILLUST ON FIG.7

12228-17E00-0A0

1
Out of stock

24

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

1
Out of stock

24

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

1
Out of stock

24

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

1
Out of stock

24

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

1
Out of stock

24

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

1
Out of stock

25

JET,OIL GALLERY (3.6)

11329-02F00

1
Out of stock

26

JET,PISTON COOLING

11390-35F00

4
Out of stock

27

O RING (D:1.2,ID:4)

09280-04004

4
Out of stock

28

BOLT (6X12)

09106-06075

4
Out of stock

29

PLUG

09241-26004

1
Out of stock

30

PLUG This part replaces 09246-05006.

09246-04009

1
Out of stock

31

PLUG

09248-12004

1
Out of stock

32

PLUG

09248-16013

2
Out of stock

33

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

34

GASKET (16X22X2)

09168-16002

2
Out of stock

35

O RING (D:1.9,ID:7.8)

09280-08012

1
Out of stock

36

JET, T/M OIL(14)

09493-28012

1
Out of stock

37

LENS, OIL LEVEL

11971-33210

1
Out of stock

38

.CIRCLIP

08331-4130A

1
Out of stock

39

COVER,BREATHER

11371-01H00

1
Out of stock

40

GASKET, BREATHER COVER

11484-01H00

1
Out of stock

42

COVER, VALVE

11372-01H00

1
Out of stock

43

BOLT

01547-0616A

2
Out of stock

44

BOLT

01547-0630A

6
Out of stock

45

BOLT (10X215)

09103-10041-A05

1
Out of stock

46

BOLT (10X205)

09103-10145

1
Out of stock

47

NUT

09159-10115

2
Out of stock

48

BOLT (10X45)

09106-10069

1
Out of stock

49

BOLT (10X55)

09106-10070

1
Out of stock

50

PLATE,CRANKCASE LWR

11322-01H00

1
Out of stock

51

BOLT (6X10)

09103-06188

4
Out of stock
