2009 Suzuki GSX-R600 Front Caliper Diagram

← All diagrams

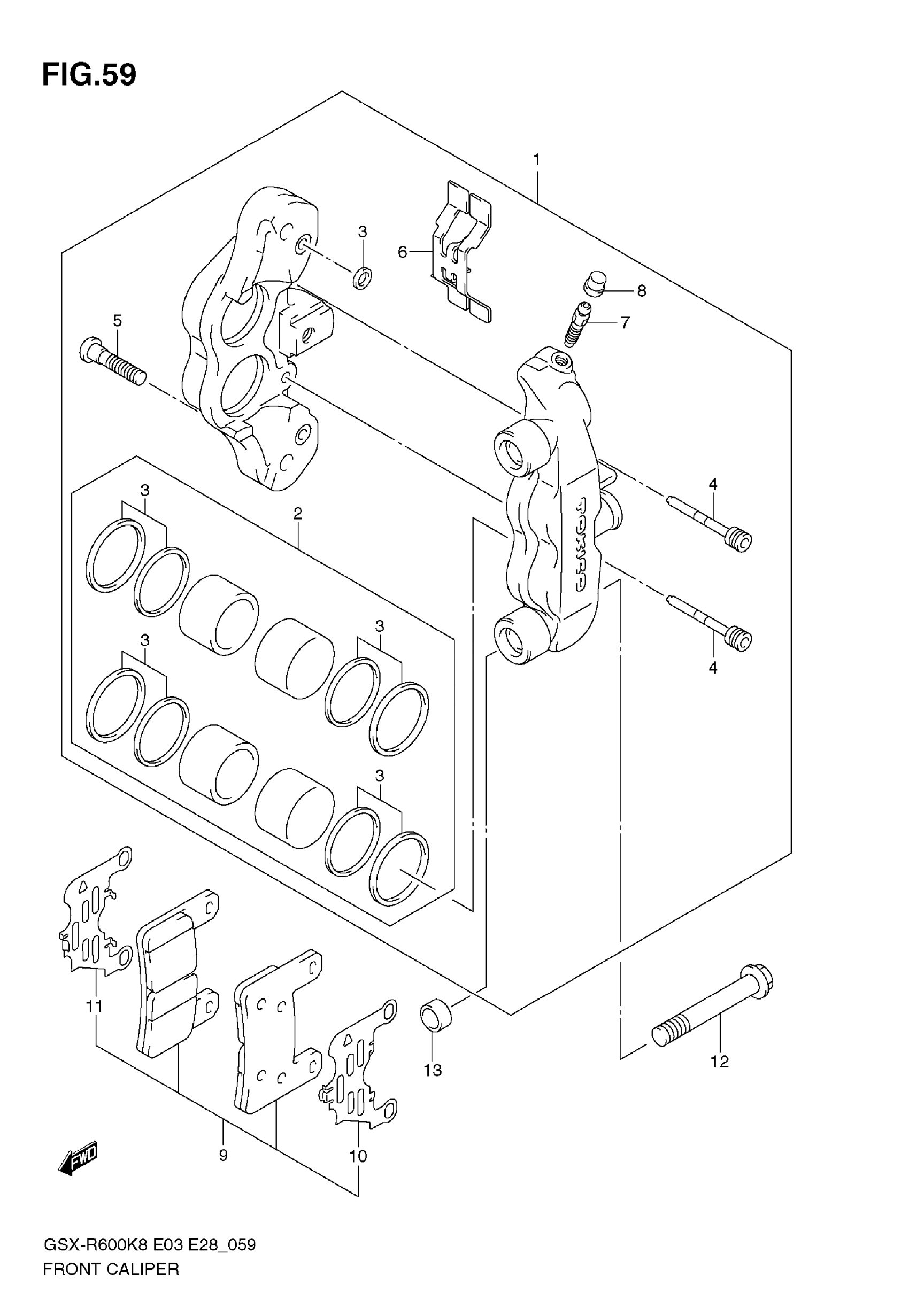

Find the part on the Front Caliper diagram for your 2009 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R600 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G30-999

1
Out of stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G30-999

1
Out of stock

2

PISTON SET

59100-41820

2
Out of stock

3

SEAL SET, PISTON

59100-41810

2
Out of stock

4

4

$26.91

In stock

5

BOLT

59145-18G00

6

$11.20

In stock

6

SPRING, PAD

59151-29G00

2

$12.80

In stock

7

BLEEDER

59121-18410

2
Out of stock

8

CAP

55156-66310

2
Out of stock

9

PAD & SHIM SET | Includes Item(s) 10 - 11

59100-29840

2
Out of stock

10

SHIM

59171-41G00

2

$17.40

In stock

11

SHIM

59172-41G00

2

$17.40

In stock

12

BOLT (10X30)

09103-10392

4
Out of stock

13

PIN, CALIPER

59151-41G00

4

$11.94

In stock
