2005 Suzuki GSX-R600 Wiring Harness Diagram

← All diagrams

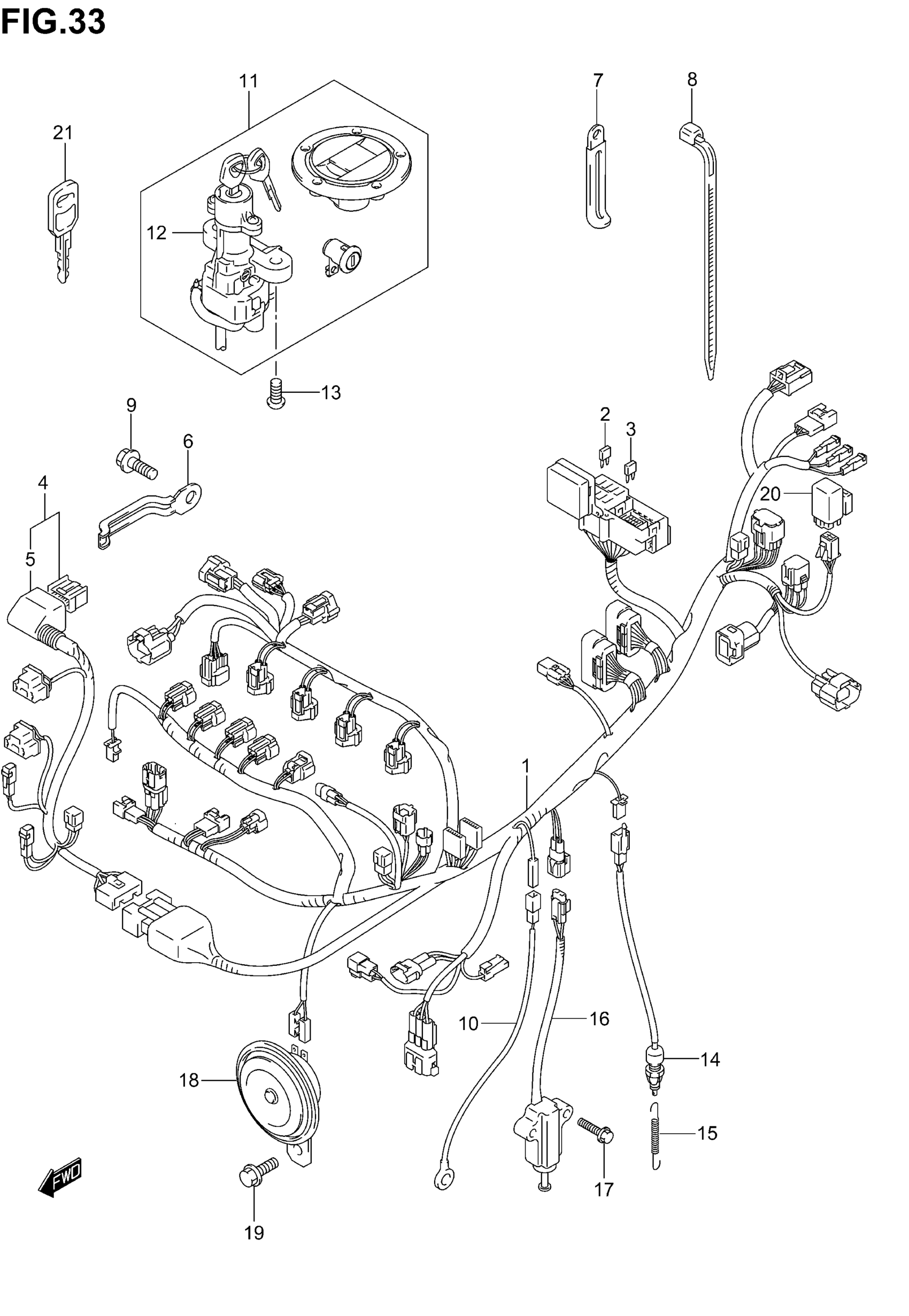

Find the part on the Wiring Harness diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX-R600 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1 | MODEL K4

36610-29G30

1
Out of stock

1

HARNESS, WIRING NO.1 | MODEL K5; Includes Item(s) 2 - 3

36610-29G80

1
Out of stock

2

FUSE (10A)

09481-10501

4
Out of stock

3

FUSE (15A)

09481-15501

2
Out of stock

4

HARNESS, WIRING NO.2 | Includes Item(s) 5

36620-29G30

1
Out of stock

5

COVER, SPEEDOMETER

36618-35F00

1
Out of stock

6

CLAMP

09403-06322

1
Out of stock

7

CLAMP (L:45)

09404-06429

1
Out of stock

8

CLAMP (L:95)

09407-11401

1
Out of stock

8

CLAMP (L:125)

09407-14403

6
Out of stock

8

CLAMP (L:165)

09407-18402

1
Out of stock

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

10

WIRE, OIL PRESSURE LEAD

36851-35F00

1
Out of stock

11

LOCK SET

37101-16840

1
Out of stock

11

LOCK SET | E33; Includes Item(s) 12

37101-16850

1
Out of stock

12

LOCK ASSY,STEER This part replaces 37100-29G00.

37100-29G11

1
Out of stock

13

SCREW

09139-08016

2
Out of stock

14

SWITCH ASSY, STOP LAMP

37740-45D00

1
Out of stock

15

SPRING

09443-06042

1
Out of stock

16

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

1
Out of stock

17

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

18

HORN ASSY This part replaces 38500-18G00.

38500-18G01

1
Out of stock

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

1
Out of stock

20

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

21

KEY, BLANK | OPT

37146-33E00

1
Out of stock
