2005 Suzuki GSX-R600 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

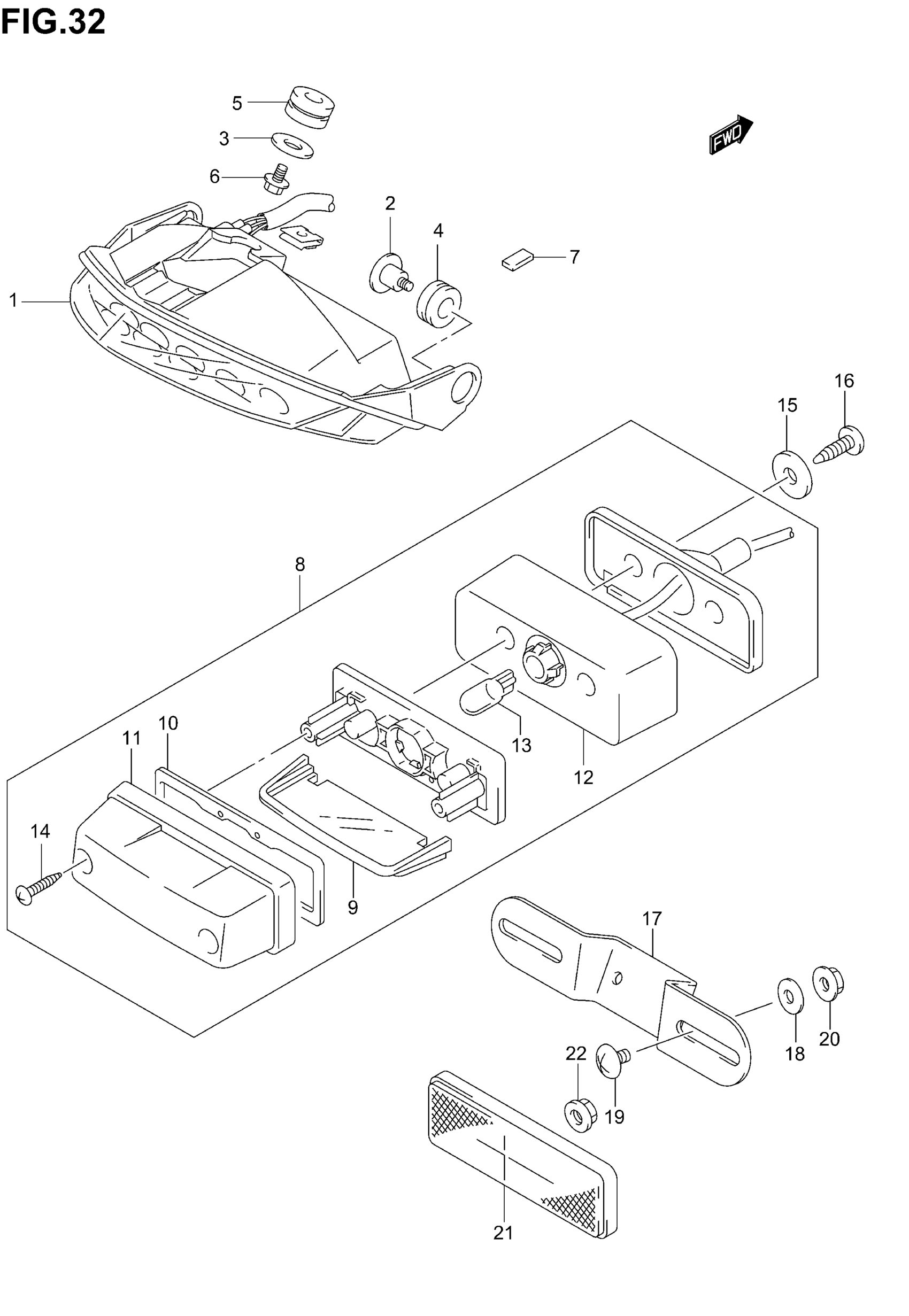

2005 Suzuki GSX-R600 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION

35710-29G30

1
Out of stock

2

SCREW, REAR COMBINATION

09139-05080

2
Out of stock

3

WASHER (5.5X20X1.2)

09160-05501

1
Out of stock

4

CUSHION

09320-10049

2
Out of stock

5

CUSHION This part replaces 09320-10054.

09320-10073

1
Out of stock

6

SCREW This part replaces 02162-05083.

02162-0508A

1
Out of stock

7

CUSHION (170X95X3.0) | CUT AS REQUIRED PROFILE (20X40)

33651-37000

1
Out of stock

8

LAMP ASSY,LICENSE | Includes Item(s) 9 - 14 This part replaces 35910-16G30.

35910-16G31

1
Out of stock

9

.LENS This part replaces 35912-16G00.

35912-16G01

1
Out of stock

10

GASKET

35913-16G00

1
Out of stock

11

COVER

35917-16G00

1
Out of stock

12

SPACER

35978-16G30

1
Out of stock

13

.BULB (12V5W)

09471-12216

1
Out of stock

14

2

$1.54

In stock

15

WASHER | 5.5X20X1.2

09160-05501

2
Out of stock

16

2

$3.12

In stock

17

BRACKET, LICENSE PLATE

35927-18G00

1
Out of stock

18

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

19

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

20

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

21

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

1
Out of stock

22

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock
