Partiron

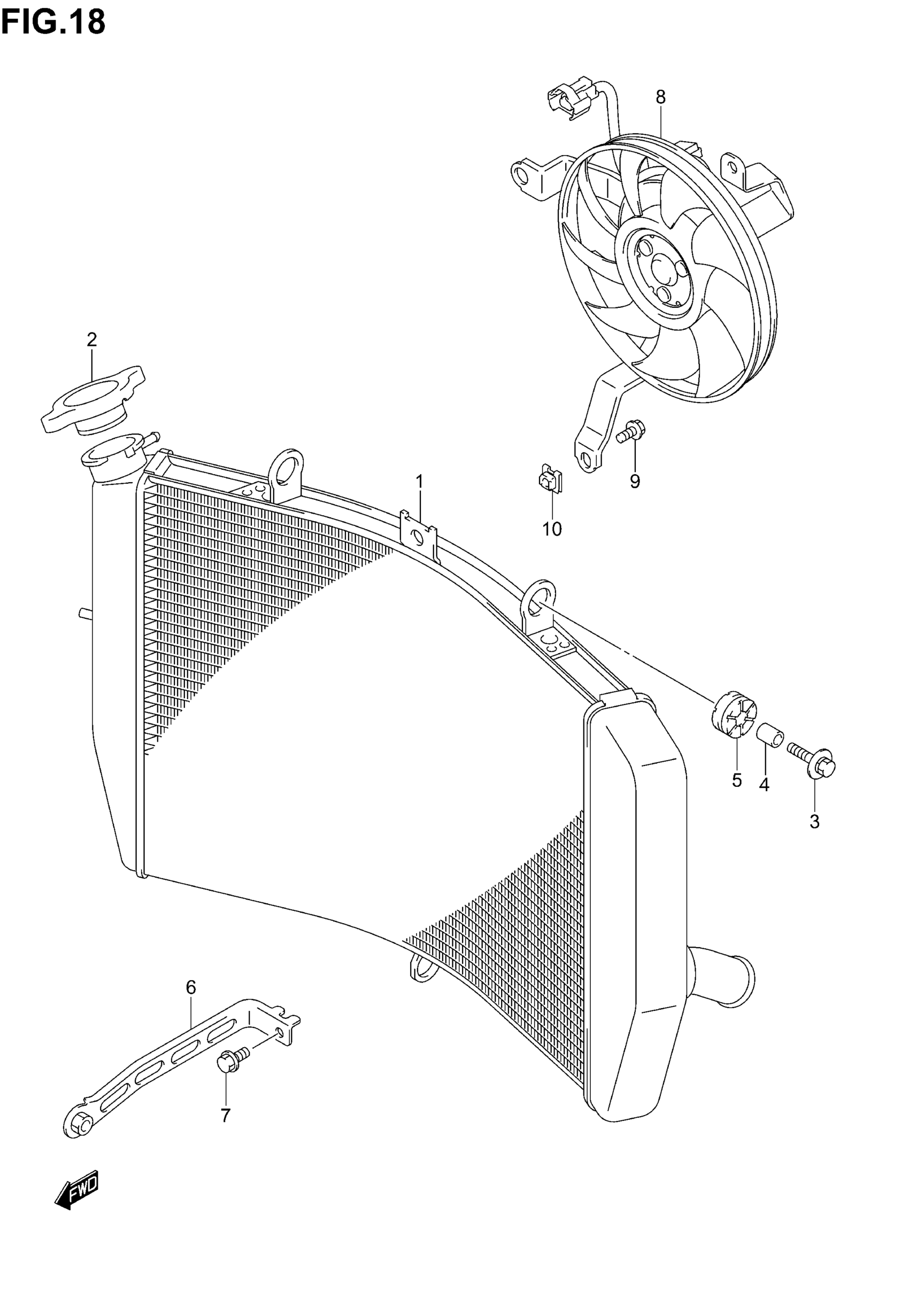

Suzuki GSX-R600 (2005) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-29G00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$40.65

3

BOLT

09118-06097

$2.57

4

SPACER

09180-06290

$2.09

5

CUSHION

09320-10051

$2.91

6

BRACKET, RADIATOR LOWER

17750-29G00

$14.00

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

8

FAN ASSY, RADIATOR

17800-29G00

Unavailable

9

BOLT

17711-40F00

$6.30

10

NUT, FAN ASSY

17712-40F00

$4.61
