2005 Suzuki GSX-R600 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

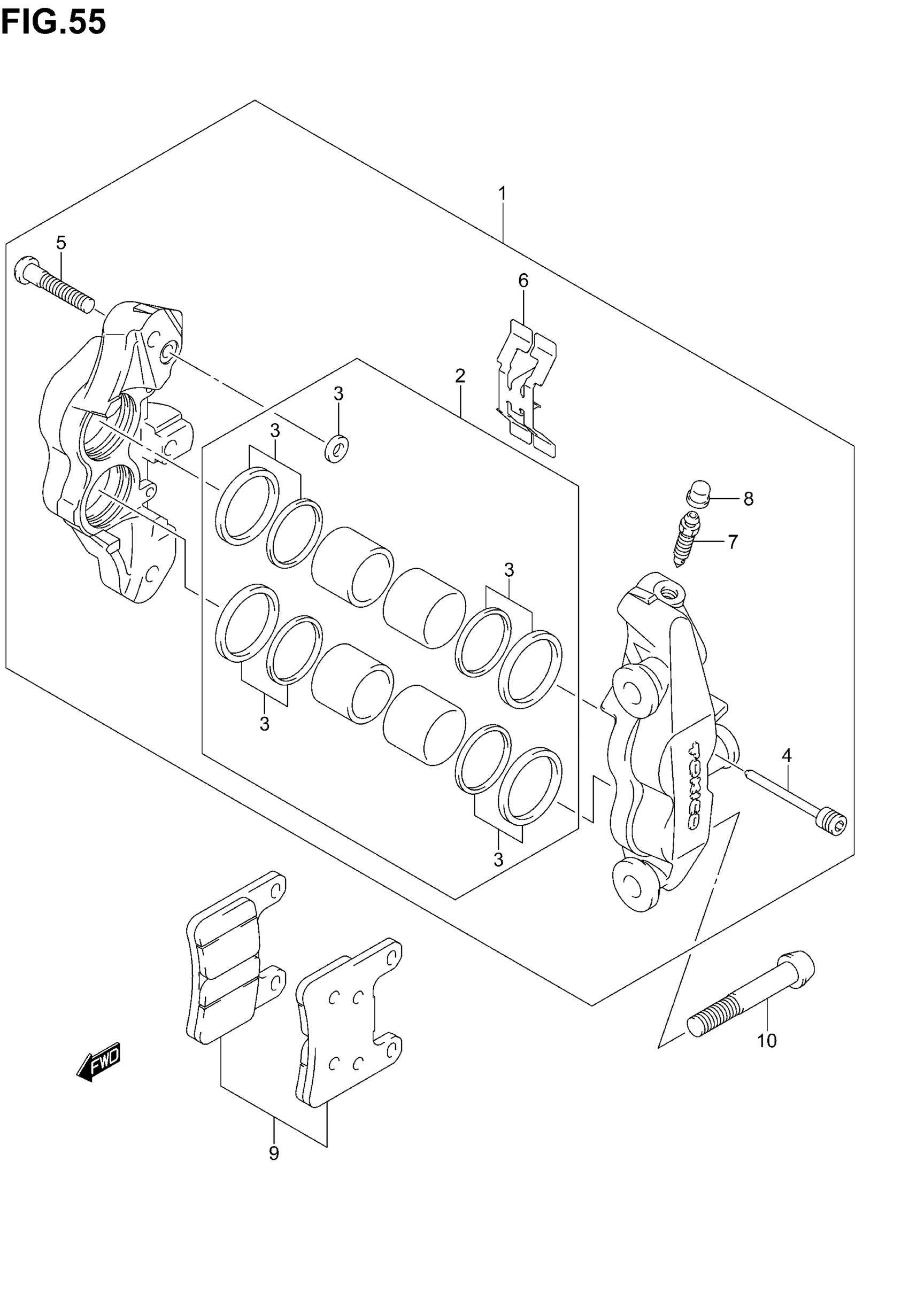

2005 Suzuki GSX-R600 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-29G00-999

1
Out of stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-29G00-999

1
Out of stock

2

PISTON SET

59100-35890

2
Out of stock

3

SEAL SET, PISTON

59100-29830

2
Out of stock

4

PIN, PAD

59141-18G00

4
Out of stock

5

BOLT

59145-18G00

6

$11.20

In stock

6

SPRING, PAD

59151-29G00

2

$12.80

In stock

7

BLEEDER

59121-18410

2
Out of stock

8

CAP

55156-66310

2
Out of stock

9

PAD SET

59100-29820

2
Out of stock

10

BOLT

09106-10076

4
Out of stock
