2005 Suzuki GSX-R600 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2005 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

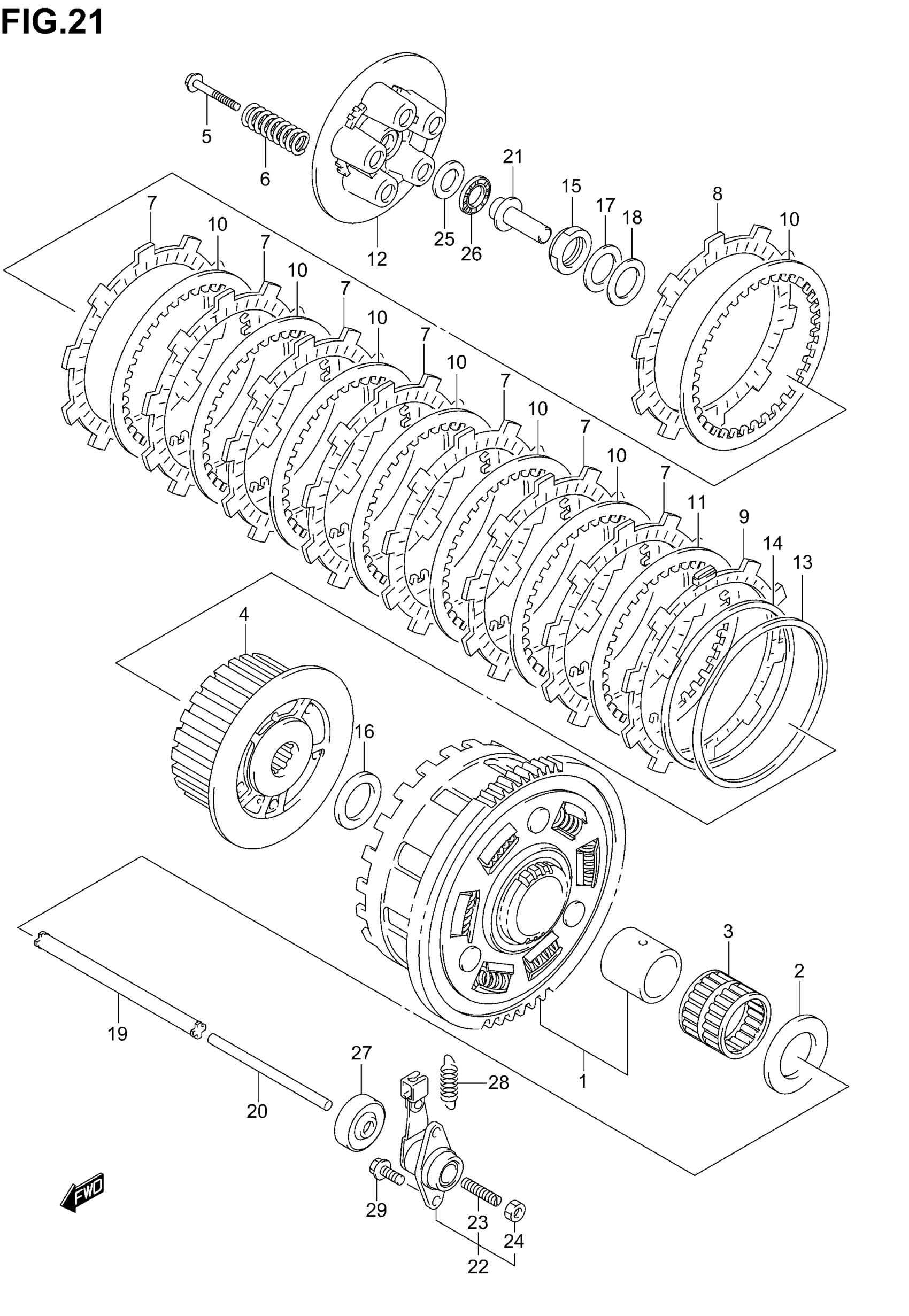

2005 Suzuki GSX-R600 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:78

21200-39820

1
Out of stock

2

WASHER (25X54X2.4)

09160-25073

1
Out of stock

3

BEARING (35X40X29.8)

09263-35036

1
Out of stock

4

HUB, CLUTCH SLEEVE

21410-35F00

1
Out of stock

5

BOLT, CLUTCH SPRING

21412-35F00

5
Out of stock

6

SPRING, CLUTCH

21413-35F00

5
Out of stock

7

PLATE, CLUTCH DRIVE NO.1

21441-31E70

7
Out of stock

8

PLATE, CLUTCH DRIVE NO.2

21441-31E60

1
Out of stock

9

PLATE, CLUTCH DRIVE NO.3

21442-31E21

1
Out of stock

10

PLATE, CLUTCH DRIVEN,NO.1 | T:2.6

21451-31E30

7
Out of stock

11

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-31E20

1
Out of stock

12

DISC, CLUTCH PRESSURE

21462-35F00

1
Out of stock

13

SEAT, WAVE WASHER

21471-31E20

1
Out of stock

14

WASHER, CLUTCH PLATE WAVE

21472-31E01

1
Out of stock

15

NUT, CLUTCH SLEEVE HUB

09159-24010

1
Out of stock

16

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

1
Out of stock

17

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

1
Out of stock

18

WASHER, SLEEVE HUB NUT | 25X38X1.0

09181-25223

1
Out of stock

19

ROD, CLUTCH PUSH RH

23110-27A00

1
Out of stock

20

ROD, CLUTCH PUSH LH

23111-35F00

1
Out of stock

21

PIECE, CLUTCH PUSH

23121-31E00

1
Out of stock

22

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 23 - 24

23200-35F01

1
Out of stock

23

SCREW (6X25)

09134-06010

1
Out of stock

24

.NUT

08310-00067

1
Out of stock

25

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

1
Out of stock

26

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

1
Out of stock

27

SEAL, CLUTCH PUSH ROD | 6X34X1.0

09285-06011

1
Out of stock

28

SPRING, CLUTCH RELEASE

09443-09051

1
Out of stock

29

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock
