2003 Suzuki GSX-R600 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2003 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

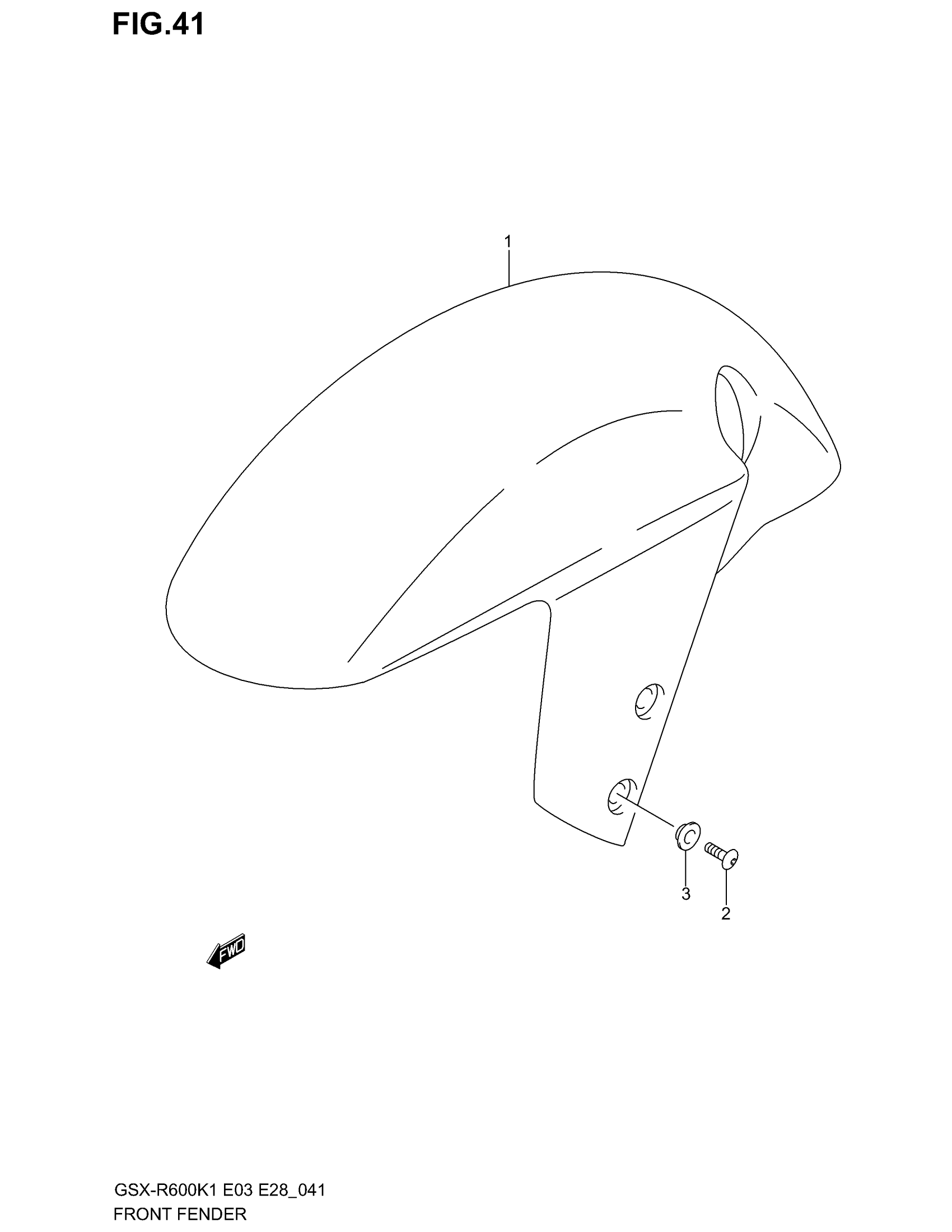

2003 Suzuki GSX-R600 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (BLACK) | FOR L99,LR5,CT5,KU2

53110-35F00-019

1
Out of stock

1

FENDER, FRONT (BLACK) | FOR BP9,GZ8

53110-35F00-Y7L

1
Out of stock

2

SCREW (L:16)

09139-06030

6
Out of stock

3

WASHER

09161-06021

6
Out of stock
← Frame Cover Front Fender →
