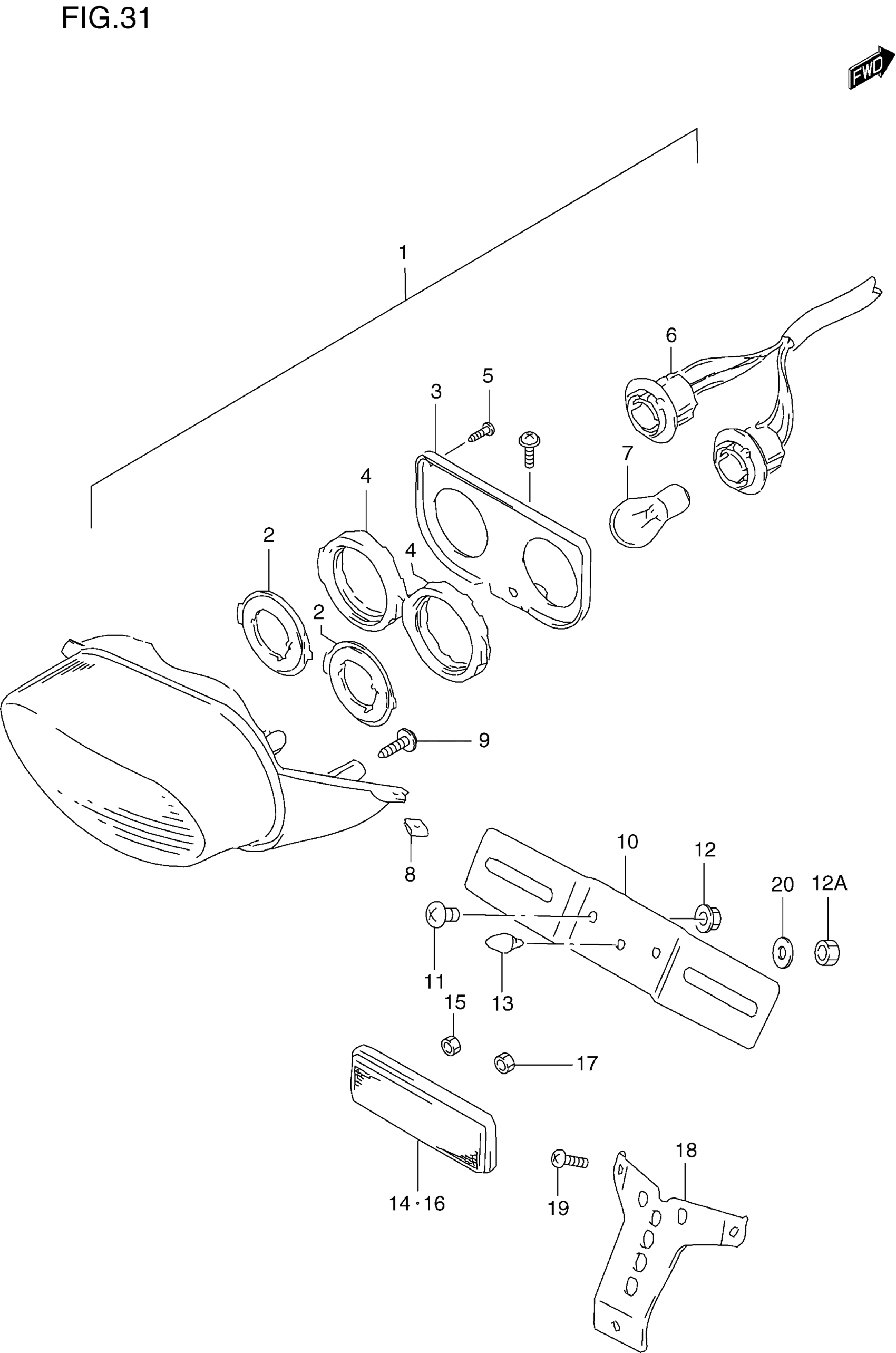

Suzuki GSX-R600 (2000) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR | Includes Item(s) 2 - 7

35710-33E30

Unavailable

2

PLATE NO.1

35716-48B21

$22.82

3

PLATE NO.2

35736-33E00

Unavailable

4

CUSHION

35765-48B21

$14.63

5

SCREW This part replaces 03211-04123.

03211-0412A

$0.73

6

SOCKET & CORD

35718-33E00

Unavailable

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

8

NUT, REAR COMB

09148-05020

$2.04

9

SCREW This part replaces 03541-15163.

03541-1516A

$2.07

10

BRACKET, LICENSE PLATE

35927-48B30

$16.03

11

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

12

NUT | MODEL V This part replaces 08316-10063.

08316-1006B

$2.50

12A

NUT | MODEL W/X/Y This part replaces 08310-00063.

08310-0006A

$1.83

13

CUSHION

09321-06023

$2.72

14

REFLECTOR ASSY, REAR

35970-24D60

$29.32

15

NUT This part replaces 08310-00053.

08310-0005A

$1.83

16

REFLECTOR ASSY, REAR

35970-24D60

$29.32

17

NUT This part replaces 08310-00053.

08310-0005A

$1.83

18

BRACKET, REAR REFLECTOR

35974-48E00

$15.22

19

SCREW, REAR BRACKET (6X12)

09125-06092

$2.95

20

WASHER, LICENSE PLATE BRACKET | 6.5X20X1.20

09160-06077

$1.89
