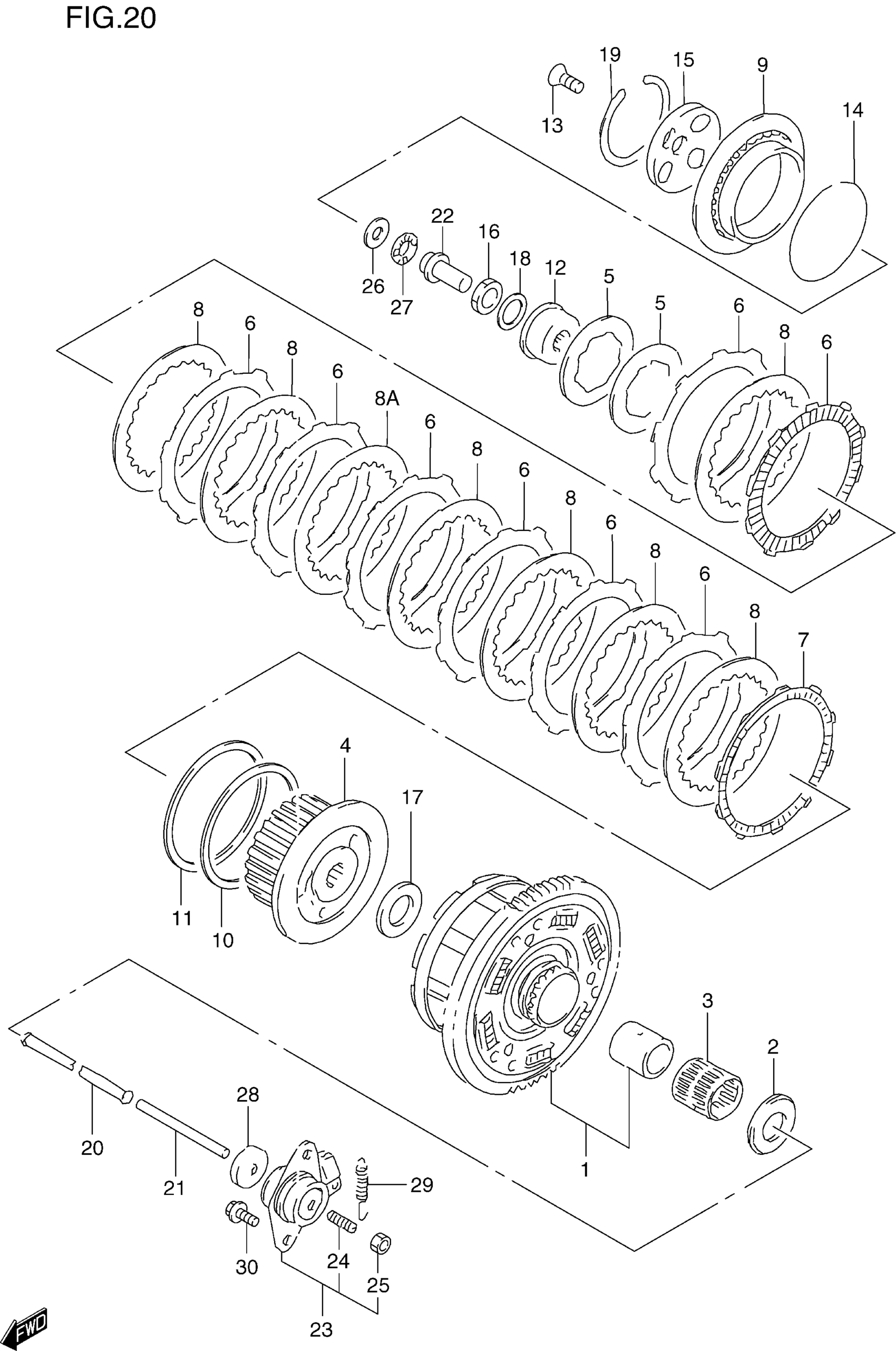

Suzuki GSX-R600 (2000) CLUTCH (MODEL V/W) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL V This part replaces 21200-31880.

21200-31890

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL W

21201-31810

Unavailable

2

WASHER (25.1X54X2.5)

09160-25037

$9.62

3

BEARING (35X40X35.8)

09263-35017

$37.12

4

HUB, CLUTCH SLEEVE

21410-31E40

Unavailable

5

SPRING, CLUTCH

21413-31E40

Unavailable

6

PLATE, CLUTCH DRIVE NO.1 | MODEL V This part replaces 21441-31E20.

21441-31E50

$21.57

6

PLATE, CLUTCH DRIVE,NO.1 | MODEL W

21441-31E50

$21.57

7

PLATE, CLUTCH DRIVE,NO.2 | MODEL V

21442-31E00

$44.28

7

PLATE, CLUTCH DRIVE NO.3 | MODEL W This part replaces 21442-31E20.

21442-31E21

$42.82

8

PLATE, CLUTCH DRIVEN,NO.1 | T:1.6

21451-31E00

$9.64

8A

PLATE, CLUTCH DRIVEN,NO.2 | T:2.0

21451-31E10

$10.33

9

DISK, CLUTCH PRESSURE | MODEL V

21462-31E40

Unavailable

9

DISK, CLUTCH PRESSURE | MODEL W This part replaces 21462-31E60.

21462-31E40

Unavailable

10

SEAT, CLUTCH PLATE

21471-31E20

$13.38

11

WASHER, CLUTCH PLATE | MODEL V

21472-31E20

Unavailable

11

WASHER, CLUTCH PLATE | MODEL W

21472-31E01

$20.03

12

HOLDER, CLUTCH SPRING

21611-31E20

Unavailable

13

SCREW, CLUTCH SPRING

21614-31E20

$2.69

14

SEAT, CLUTCH SPRING

21623-31E20

$6.35

15

LIFTER, CLUTCH RELEASE

21463-40C01

Unavailable

16

NUT, CLUTCH SLEEVE HUB

09159-24010

$11.92

17

WASHER, CLUTCH SLEEVE THR

08211-25505

$10.33

18

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.38

19

CIRCLIP, CLUTCH PRESSURE This part replaces 09381-84002.

09381-84003

$13.28

20

ROD, CLUTCH PUSH RH

23110-27A00

$19.86

21

ROD, CLUTCH PUSH LH

23111-34C00

$12.94

22

PIECE, PUSH This part replaces 23121-31E10.

23121-31E00

$22.52

23

SCREW ASSY,CLUTCH RELEASE | Includes Item(s) 24 - 25

23200-20C00

Unavailable

24

SCREW (6X25)

09134-06010

$2.81

25

.NUT

08310-00067

$1.83

26

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.52

27

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$7.49

28

SEAL, CLUTCH PUSH ROD | 6X34X5.5

09285-06015

$7.20

29

SPRING, CLUTCH RELEASE

09443-09044

$3.04

30

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
