2013 Suzuki GSX-R250L3 Stand Diagram

← All diagrams

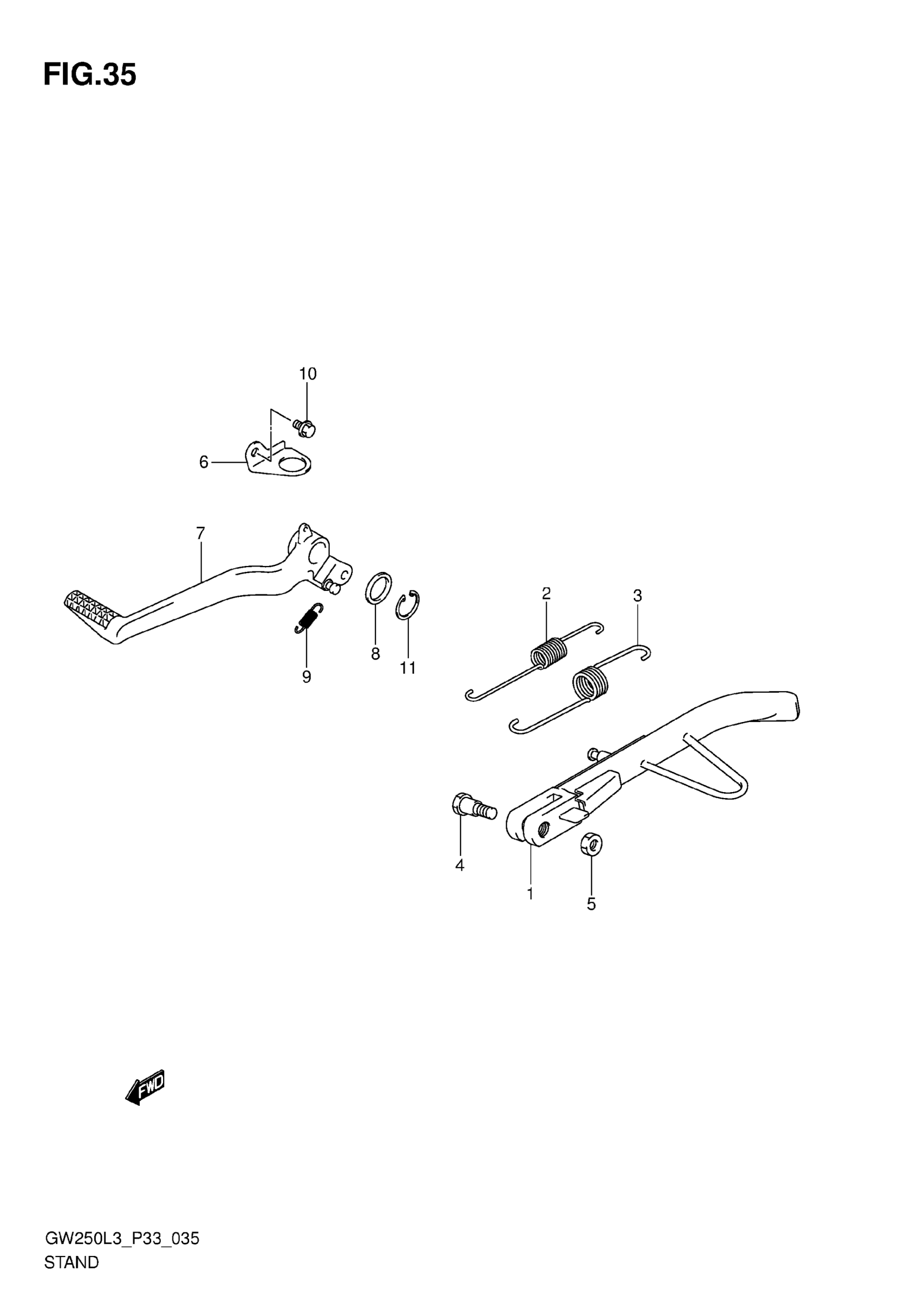

Find the part on the Stand diagram for your 2013 Suzuki GSX-R250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki GSX-R250L3 Stand Diagram

#

Description
Price
Status
Order Qty

1

STAND, PROP

42310-48H10-000

Out of stock

2

SPRING, PROP STAND

42423-48H00-000

Out of stock

3

SPRING, PROP STAND OUTER

42424-48H00-000

Out of stock

4

BOLT (10X38)

09111-10036-000

Out of stock

5

NUT

42321-48H00-000

Out of stock

6

BRACKET, STOP LAMP SWITCH

41577-48H00-000

Out of stock

7

PEDAL, BRAKE

43111-48H00-000

Out of stock

8

WASHER (18X24X1)

09160-18040-000

Out of stock

9

SPRING

09443-11033-000

Out of stock

10

BOLT

01550-0508A-000

Out of stock

11

CIRCLIP

08331-3118A-000

Out of stock
