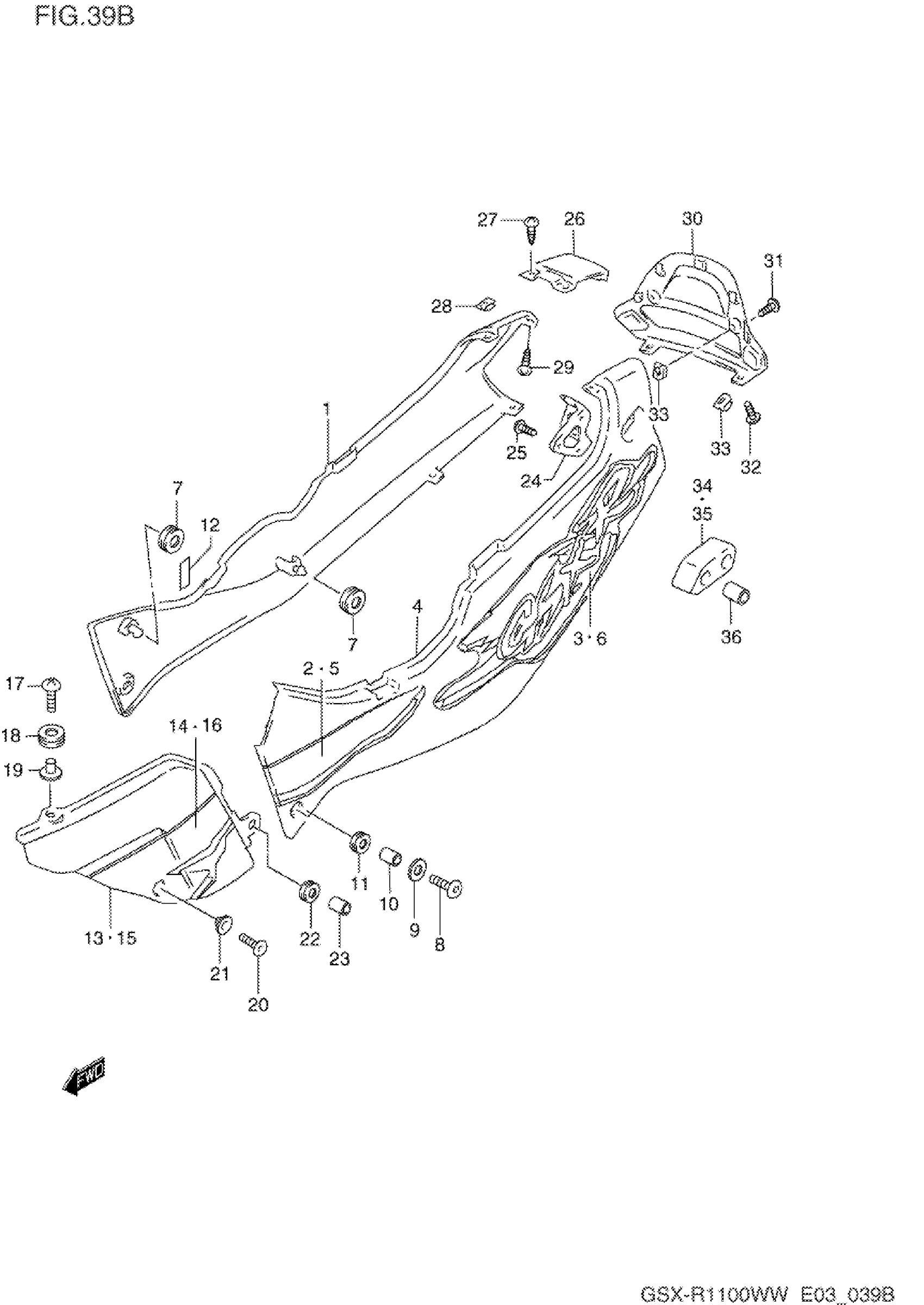

Suzuki GSX-R1100W (1998) FRAME COVER (MODEL S) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR M18

47100-46E40-0JW

Unavailable

1

COVER, FRAME RH (BLACK) | FOR C3R; Includes Item(s) 2 - 3

47100-46E40-33J

Unavailable

2

TAPE, FRONT RH | FOR 0JW

68135-46E30-D4H

Unavailable

2

TAPE, FRONT RH | FOR 33J

68135-46E30-D6B

Unavailable

3

EMBLEM, RH | FOR 0JW

68131-46E20-Y72

Unavailable

3

EMBLEM, RH | FOR 33J

68131-46E20-Y83

Unavailable

4

COVER, FRAME LH (WHITE) | FOR M18

47200-46E40-0JW

Unavailable

4

COVER, FRAME LH (BLACK) | FOR C3R; Includes Item(s) 5 - 6

47200-46E40-33J

Unavailable

5

TAPE, FRONT LH | FOR 0JW

68145-46E30-D4H

Unavailable

5

TAPE, FRONT LH | FOR 33J

68145-46E30-D6B

Unavailable

6

EMBLEM, LH | FOR 0JW

68141-46E20-Y72

Unavailable

6

EMBLEM, LH | FOR 33J

68141-46E20-Y83

Unavailable

7

CUSHION, INNER

09320-08018

$2.80

8

SCREW, FRONT

09139-06042

$5.07

9

WASHER This part replaces 09160-06006.

09160-06084

$1.77

10

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

11

CUSHION

09320-09016

$1.97

12

PROTECTOR

44885-38A00

$5.18

13

COVER, FRAME BODY RH (WHITE) | FOR M18

47500-46E40-0JW

Unavailable

13

COVER, FRAME BODY RH (BLACK) | FOR C3R; Includes Item(s) 14 - 14

47500-46E40-33J

Unavailable

14

TAPE, RH | FOR 0JW

68665-46E10-D4H

Unavailable

14

TAPE, RH | FOR 33J

68665-46E10-D6B

Unavailable

15

COVER, FRAME BODY LH (WHITE) | FOR M18

47600-46E40-0JW

Unavailable

15

COVER, FRAME BODY LH (BLACK) | FOR C3R; Includes Item(s) 16 - 16

47600-46E40-33J

Unavailable

16

TAPE, LH | FOR 0JW

68675-46E10-D4H

Unavailable

16

TAPE, LH | FOR 33J

68675-46E10-D6B

Unavailable

17

SCREW, UPPER

09136-06113

$3.08

18

CUSHION

09320-09016

$1.97

19

WASHER

09169-06062

$2.50

20

SCREW, FRONT

09139-05025

$1.89

21

WASHER

09169-06040

$1.94

22

CUSHION

09320-09016

$1.97

23

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

24

BRACKET, REAR RH

45531-46E00

Unavailable

24

BRACKET, REAR LH

45532-46E00

Unavailable

25

SCREW This part replaces 03541-04103.

03541-0410A

$1.83

26

COVER, FRAME CENTER (WHITE) | FOR M18

47300-46E00-0JW

Unavailable

26

COVER, FRAME CENTER (BLACK) | FOR C3R

47300-46E00-33J

Unavailable

27

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

28

NUT

09148-05021

$1.88

29

SCREW This part replaces 03541-04103.

03541-0410A

$1.83

30

COVER, FRAME REAR

47411-46E00

Unavailable

31

SCREW, REAR

09139-05021

$1.49

32

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

33

NUT

09148-05021

$1.88

34

CUSHION, PILLION RH

46238-46E00

Unavailable

35

CUSHION, PILLION LH

46239-46E00

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 09180-08180.

09180-08180-XC0

Unavailable

37

COLOR : M18 = 0JW(WHITE),

SPECIAL NOTE

Unavailable
