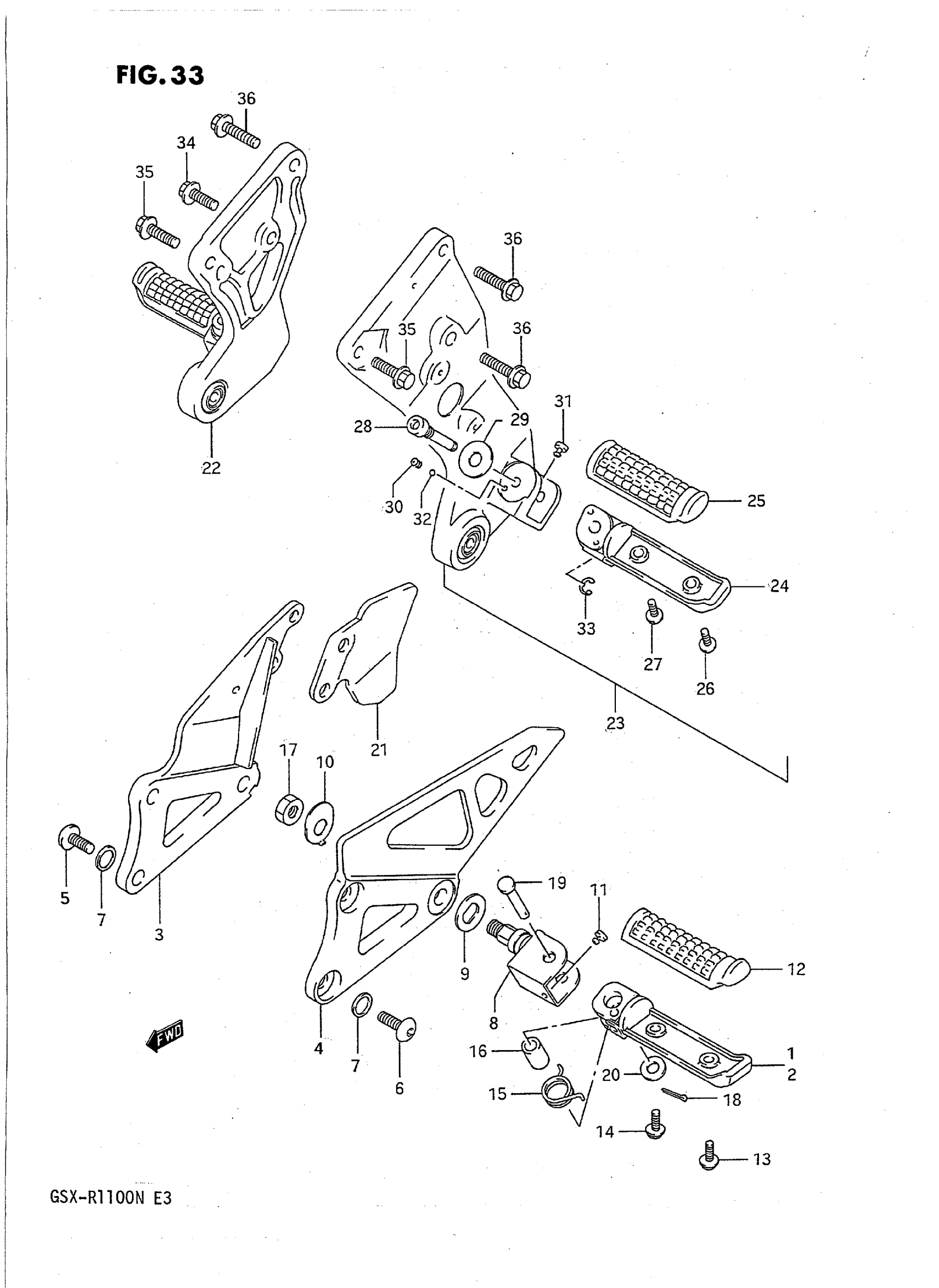

Suzuki GSX-R1100N (1992) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43511-40C00

$72.12

2

BAR, FRONT FOOTREST LH

43521-40C00

$72.12

3

BRACKET, FOOTREST RH

43511-17D01

Unavailable

4

BRACKET, FOOTREST LH

43522-17D01

Unavailable

5

BOLT This part replaces 43529-17D00.

09139-10004

$5.58

6

BOLT , 10X20 This part replaces 43529-17D10.

09106-10050

$5.53

7

WASHER

09164-10010

$5.25

8

NO DESCRIPTION AVAILABLE This part replaces 43530-40C00.

43530-40C01

Unavailable

9

PLATE, FRONT FOOTREST

43213-17C01

Unavailable

10

WASHER, FRONT FOOTREST

43214-17C01

Unavailable

11

CUSHION, FOOTREST

43541-40C00

Unavailable

12

RUBBER, FOOTREST

43550-40C11

$29.07

13

SCREW, OUTER This part replaces 02112-35168.

02112-35167

$2.87

14

SCREW This part replaces 02112-75208.

02112-75207

$3.62

15

SPRING This part replaces 09448-19020.

09448-18022

$3.42

16

SPACER, FRONT FOOTREST

09180-08149

$5.10

17

NUT, FIXED DRIVE FACE This part replaces 08310-22127.

09140-12039

$2.80

18

PIN This part replaces 04111-25158.

04111-2515A

$1.64

19

PIN

09200-08057

$2.58

20

WASHER

09160-08043

$1.81

21

NO DESCRIPTION AVAILABLE This part replaces 43586-40C01.

43586-40C02

Unavailable

22

FOOTREST ASSY, PILLION RH

43600-41C00

Unavailable

23

FOOTREST ASSY, PILLION LH | Includes Item(s) 24 - 33

43700-41C00

Unavailable

24

BAR, RH

43610-41C00

Unavailable

24

BAR, LH

43620-41C00

Unavailable

25

RUBBER

43550-40C11

$29.07

26

SCREW, OUTER This part replaces 02112-35168.

02112-35167

$2.87

27

SCREW This part replaces 02112-75208.

02112-75207

$3.62

28

BOLT

43642-40C00

$10.15

29

WASHER This part replaces 09160-10031.

09160-10126

$2.13

30

SPRING

09440-05003

$1.48

31

CUSHION, FOOTREST

43541-40C00

Unavailable

32

BALL

06111-07004

$1.22

33

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.43

34

BOLT This part replaces 01517-08205.

01550-0820A

$2.25

35

BOLT This part replaces 01517-08254.

01550-0825A

$2.31

36

BOLT This part replaces 01517-08304.

01550-0830A

$2.80
