Description

Price

1

PIPE, AIR INTAKE RH

94420-47H00

$137.98

2

PIPE, AIR INTAKE LH

94430-47H00

$140.58

3

MOLDING, RH

94423-47H00

$20.13

4

MOLDING, LH

94433-47H00

$19.78

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

NUT

09148-05052

$3.13

7

CUSHION

09320-08028

$2.82

8

BOLT

01550-0616A

$2.01

9

WASHER

09169-06082

$4.70

10

COVER, INTAKE FRONT (BLUE)

94671-47HA0-YKY

$344.45

11

COVER, INTAKE RH (WHITE)

94672-47HA0-YWW

$341.27

12

COVER, INTAKE LH (WHITE)

94682-47HA0-YWW

$375.03

13

TAPE

94443-06G00

$3.11

14

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.91

15

CLIP

94479-35F00

$5.38

16

COWL, SIDE UPPER RH (SILVER)

94473-47H00-YYF

$333.65

17

COWL, SIDE UPPER LH (SILVER)

94483-47H00-YYF

$341.97

18

SCREW (5X16)

09139-05077

$3.06

19

SCREW

03541-0516A

$1.41

20

SCREW (5X12)

09132-05050

$1.89

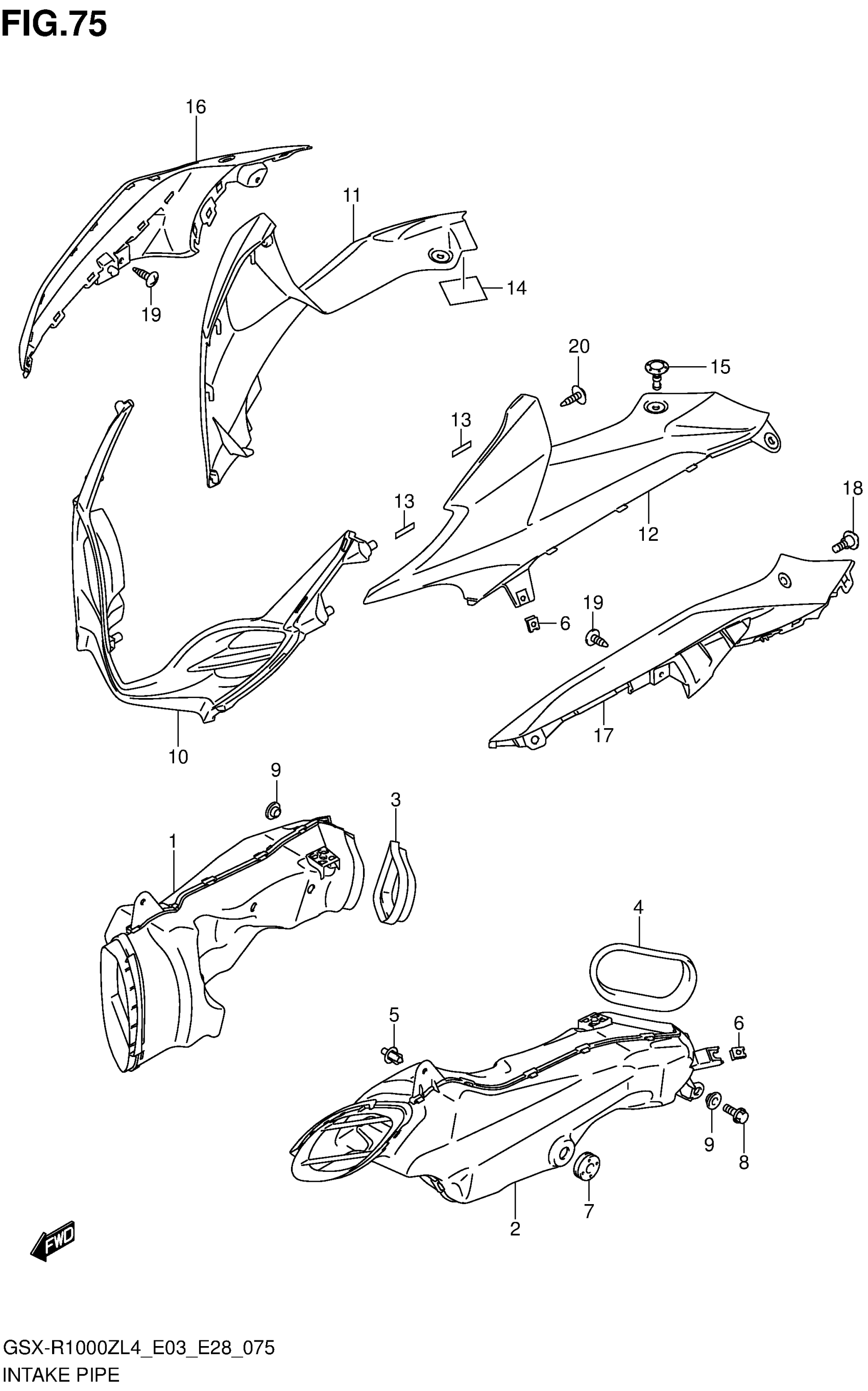

Suzuki GSX-R1000ZL4 (2014) INTAKE PIPE Diagram
