2014 Suzuki GSX-R1000ZL4 Generator Diagram

← All diagrams

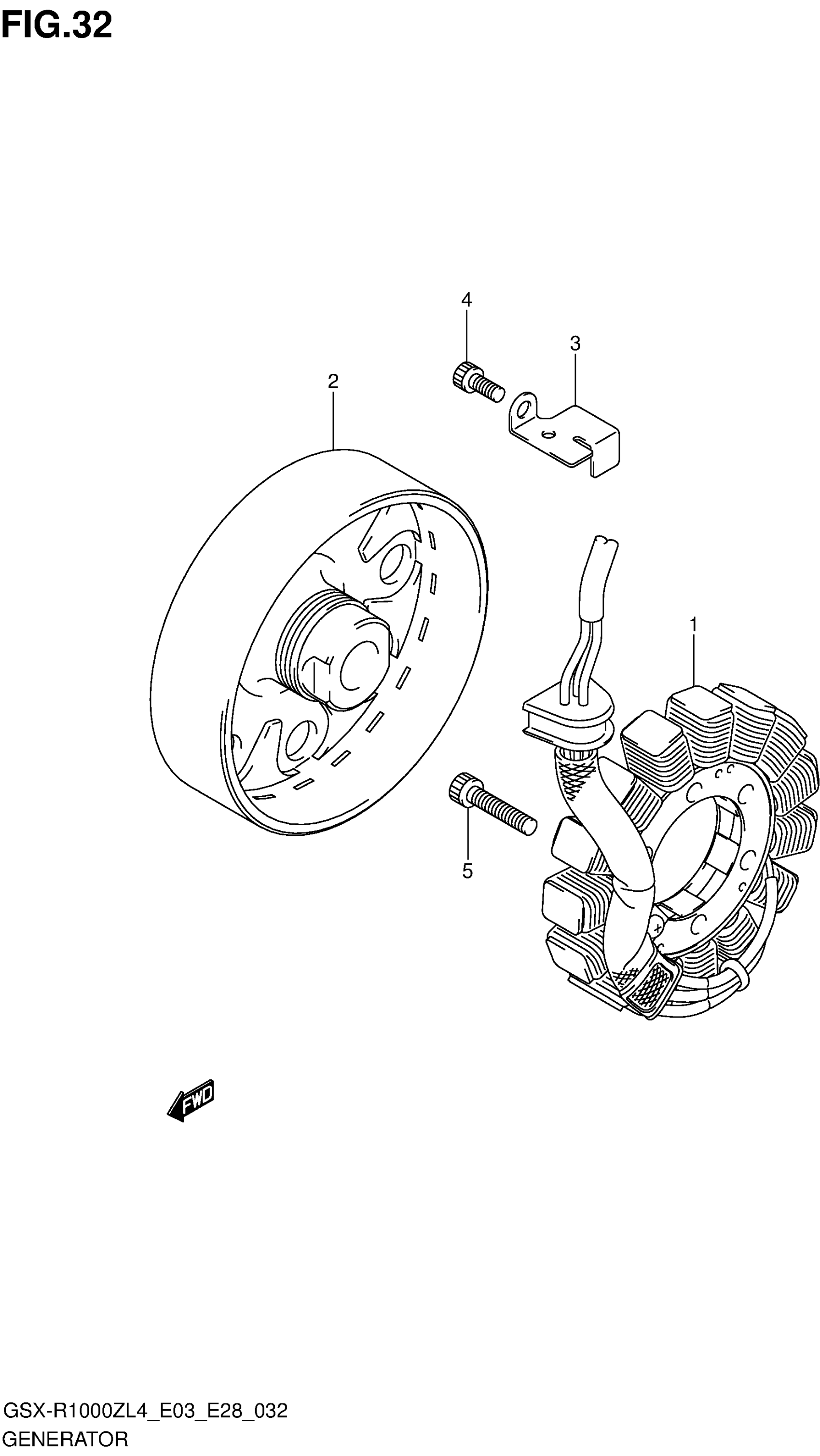

Find the part on the Generator diagram for your 2014 Suzuki GSX-R1000ZL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX-R1000ZL4 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

31401-47H10

1

$515.50

In stock

2

ROTOR ASSY

31402-47H01

1

$761.82

In stock

3

1

$5.63

In stock

4

BOLT

07130-0512A

1
Out of stock

5

BOLT (6X25)

07130-0625A

3

$2.85

In stock
