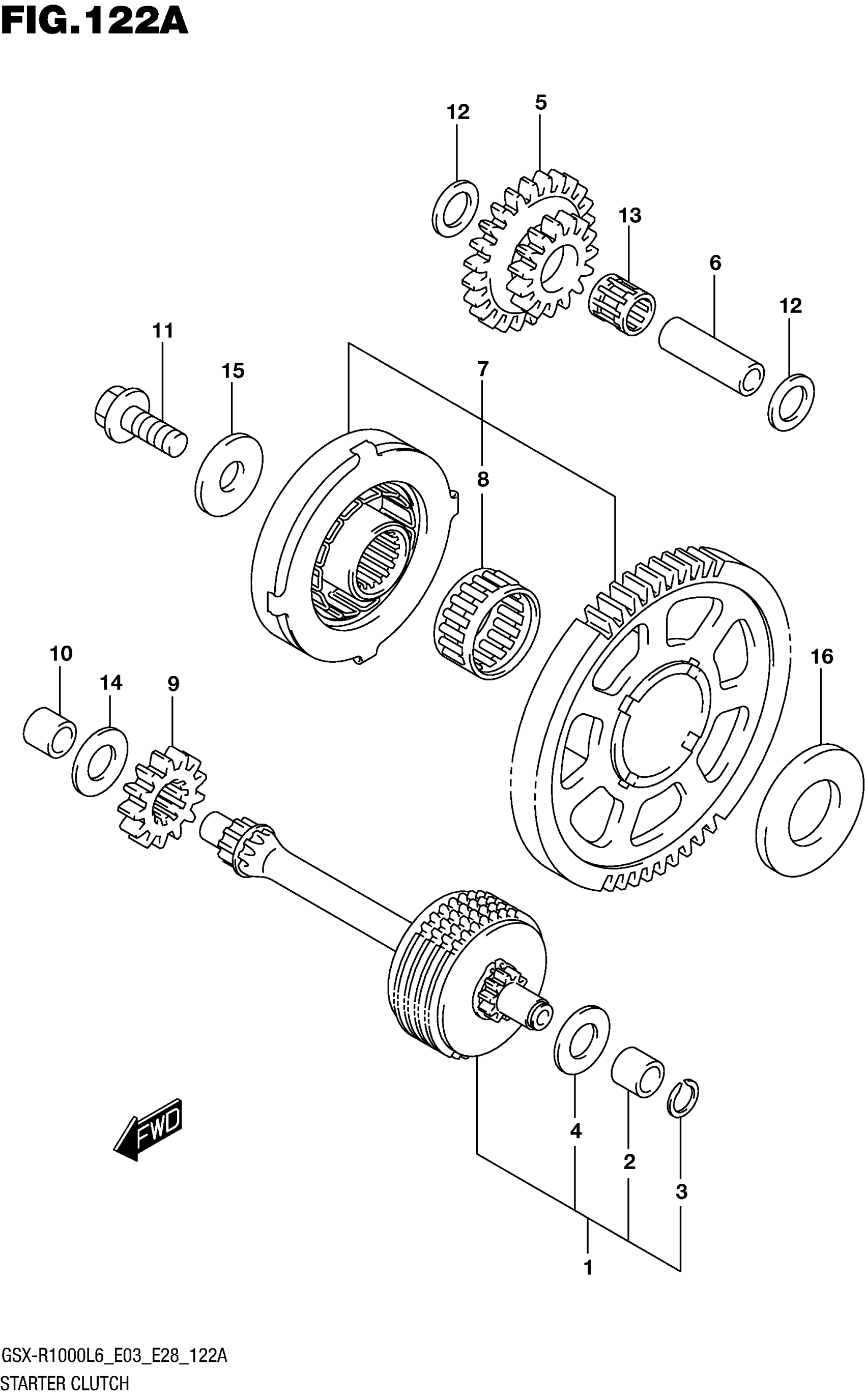

Suzuki GSX-R1000L6 (2016) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, START IDLE NO.1

12600-47850

Unavailable

2

.BUSH

12618-31G00

$3.86

3

.CIRCLIP

09380-09003

$1.82

4

.WASHER

08211-10221

$2.01

5

GEAR, STARTER IDLE NO.2

12612-47H00

$115.30

6

PIN, STARTER IDLE NO.2

12151-09204

$9.73

7

CLUTCH SET,STAR This part replaces 12600-47840.

12600-47842

$262.75

8

.BEARING (26X31X16)

09263-26035

$77.93

9

GEAR, LIMITER DRIVEN

12617-47H00

$58.48

10

BUSH

12618-31G00

$3.86

11

BOLT (10X23)

09103-10189

$3.83

12

SHIM (12X20X1)

09181-12167

$2.31

13

BEARING (12X16X16)

09263-12023

$9.47

14

WASHER

08211-10221

$2.01

15

WASHER

08211-10285

$3.32

16

WASHER

08211-20403

$4.09
