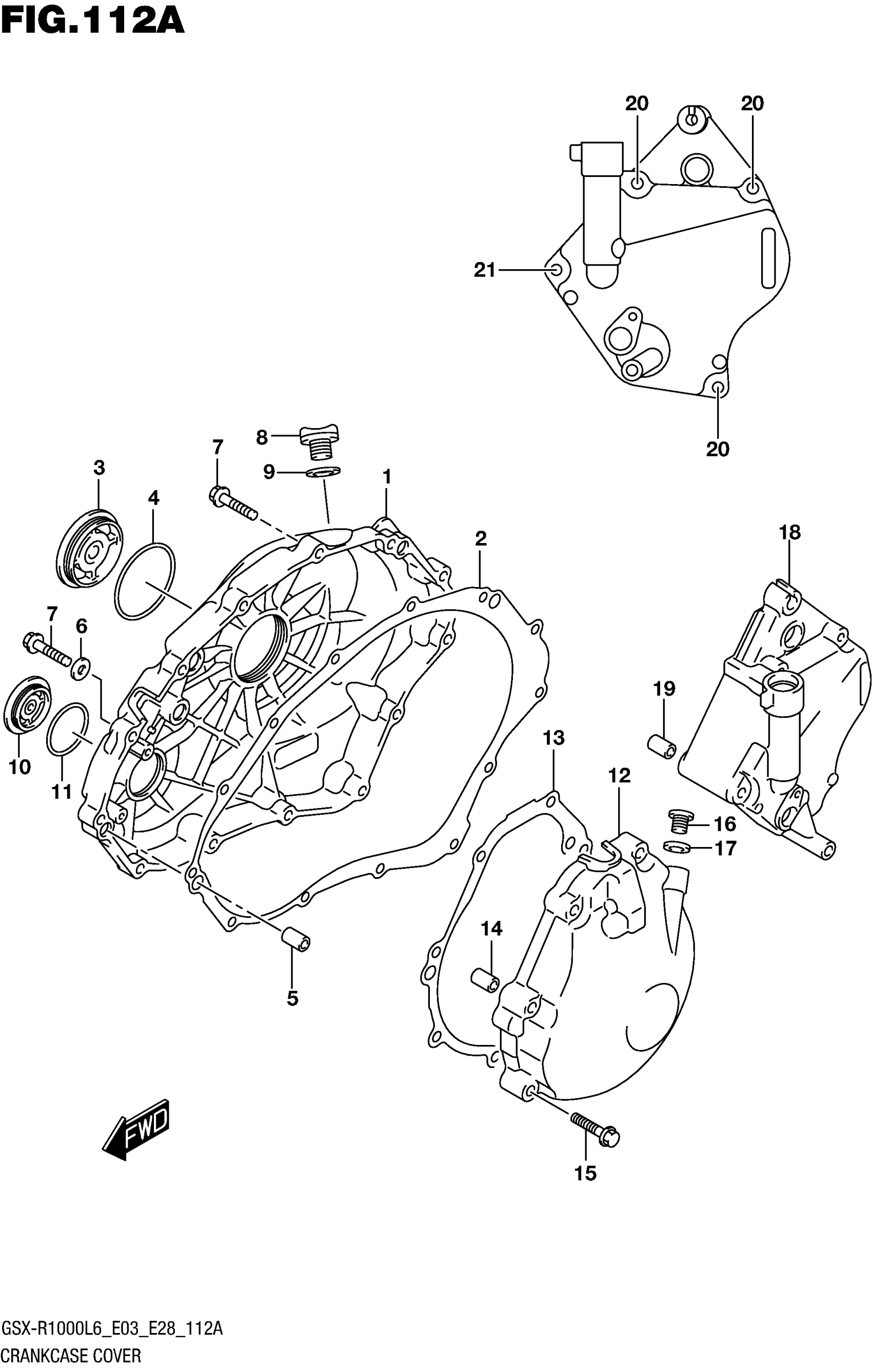

Suzuki GSX-R1000L6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-47H00

$369.90

2

GASKET, CLUTCH COVER

11482-47H00

$19.37

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$23.95

4

O RING

31156-17E00

$4.40

5

PIN

04211-09189

$1.70

6

GASKET (5.8X13X1.2)

09168-06023

$2.09

7

BOLT (6X30)

09103-06308

$4.20

8

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

10

PLUG (36X10)

09259-36021

$12.83

11

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

12

COVER, GENERATOR

11351-47H00

$240.27

13

GASKET

11483-47H00

$12.00

14

PIN

04211-09149

$1.70

15

BOLT (6X30)

09103-06213

$2.53

16

PLUG (10X10)

09248-10010

$3.96

17

GASKET (10X14X3.6)

09168-10002

$1.96

18

COVER, ENGINE SPROCKET

11361-47H00

$277.12

19

PIN

04211-09129

$1.70

20

BOLT (6X45)

09103-06224

$2.77

21

BOLT (6X65)

09103-06239

$2.75
