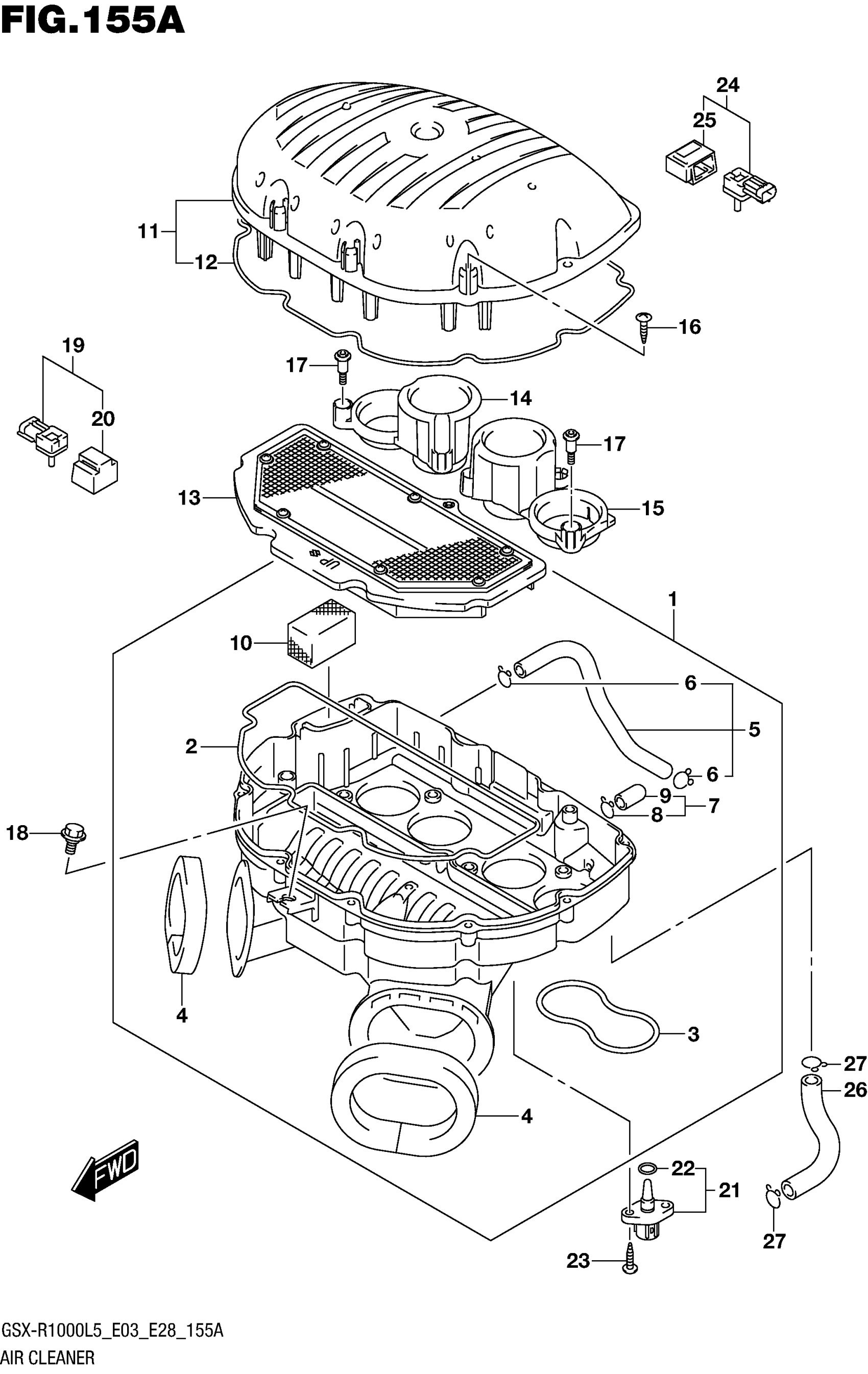

Suzuki GSX-R1000L5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANE This part replaces 13720-47H01.

13720-47H02

$166.58

2

GASKET, CASE

13756-47H00

$6.83

3

GASKET, CASE

13757-47H00

$4.82

4

CUSHION, DUCT

13736-01H00

$8.95

5

TUBE,BREATHER This part replaces 13850-47H00.

13850-47H01

$26.42

6

CLIP

09401-14101

$2.37

7

PLUG ASSY, DRAIN

13856-19B03

$12.35

8

CLIP

09401-14101

$2.37

9

.PLUG

13859-41B10

$6.94

10

FILTER, BREATHER

13788-47H00

$5.32

11

CAP, AIR CLEANER

13740-47H00

Unavailable

12

GASKET, CAP

13746-47H00

$9.17

13

FILTER ASSY

13780-47H10

$46.93

14

FUNNEL, OUTLET RH

13881-47H00

Unavailable

15

FUNNEL, OUTLET LH

13882-47H00

Unavailable

16

SCREW

03541-0525A

$1.80

17

BOLT

13831-47H00

$7.73

18

BOLT (6X16)

09111-06089

$2.61

19

SENSOR,BOOST

15630-29G40

$342.38

20

COVER

15625-29G40

Unavailable

21

SENSOR, AIR TEMPERATURE

13650-14G10

$47.66

22

O RING

13655-14G10

$11.18

23

BOLT

03511-0516A

$1.88

24

SENSOR, AIR PRESSURE

15630-29G30

$342.38

25

COVER

15625-29G30

Unavailable

26

HOSE, ISC VALVE

13697-47H00

Unavailable

27

CLIP

09401-15101

$2.28
