2014 Suzuki GSX-R1000L4 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2014 Suzuki GSX-R1000L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

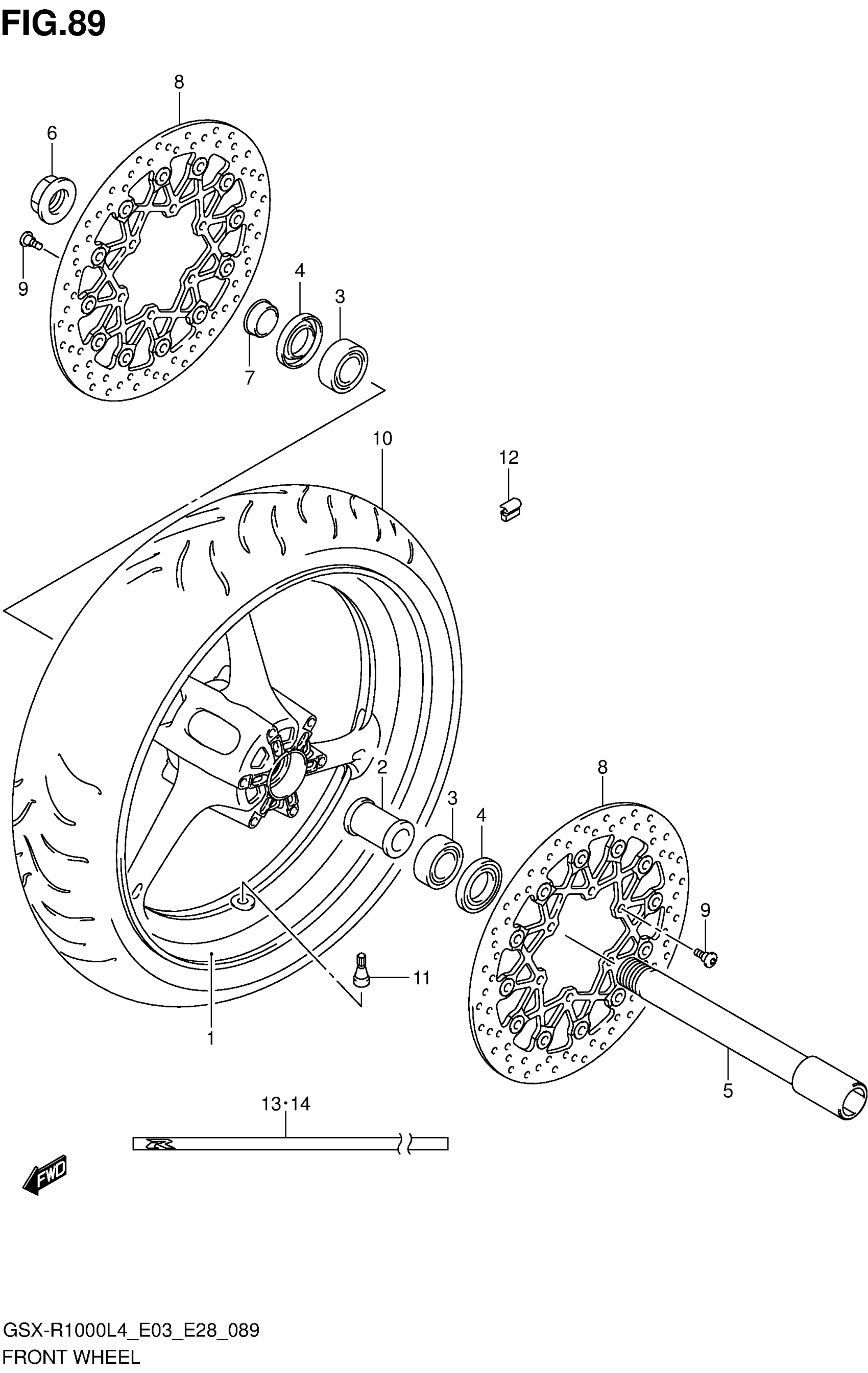

2014 Suzuki GSX-R1000L4 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,109.13

In stock

2

SPACER,FR HUB BEARING

54731-35F10

1
Out of stock

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE,FR

54711-47H00

1
Out of stock

6

NUT, FRONT AXLE

54712-47H00

1
Out of stock

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

1
Out of stock

8

DISC, FRONT BRAKE

59210-37H20

2

$597.27

In stock

9

BOLT (6X21)

09106-06124

12
Out of stock

10

TIRE, FRONT, 120/70 ZR17M/C (58W) (BRIDGESTONE)

55110-47H10

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

12

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

12

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

13

TAPE, RH (WHITE/BLACK)

68251-47H00-AR9

1
Out of stock

14

TAPE, LH (WHITE/BLACK)

68252-47H00-AR9

1
Out of stock
