2014 Suzuki GSX-R1000L4 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2014 Suzuki GSX-R1000L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

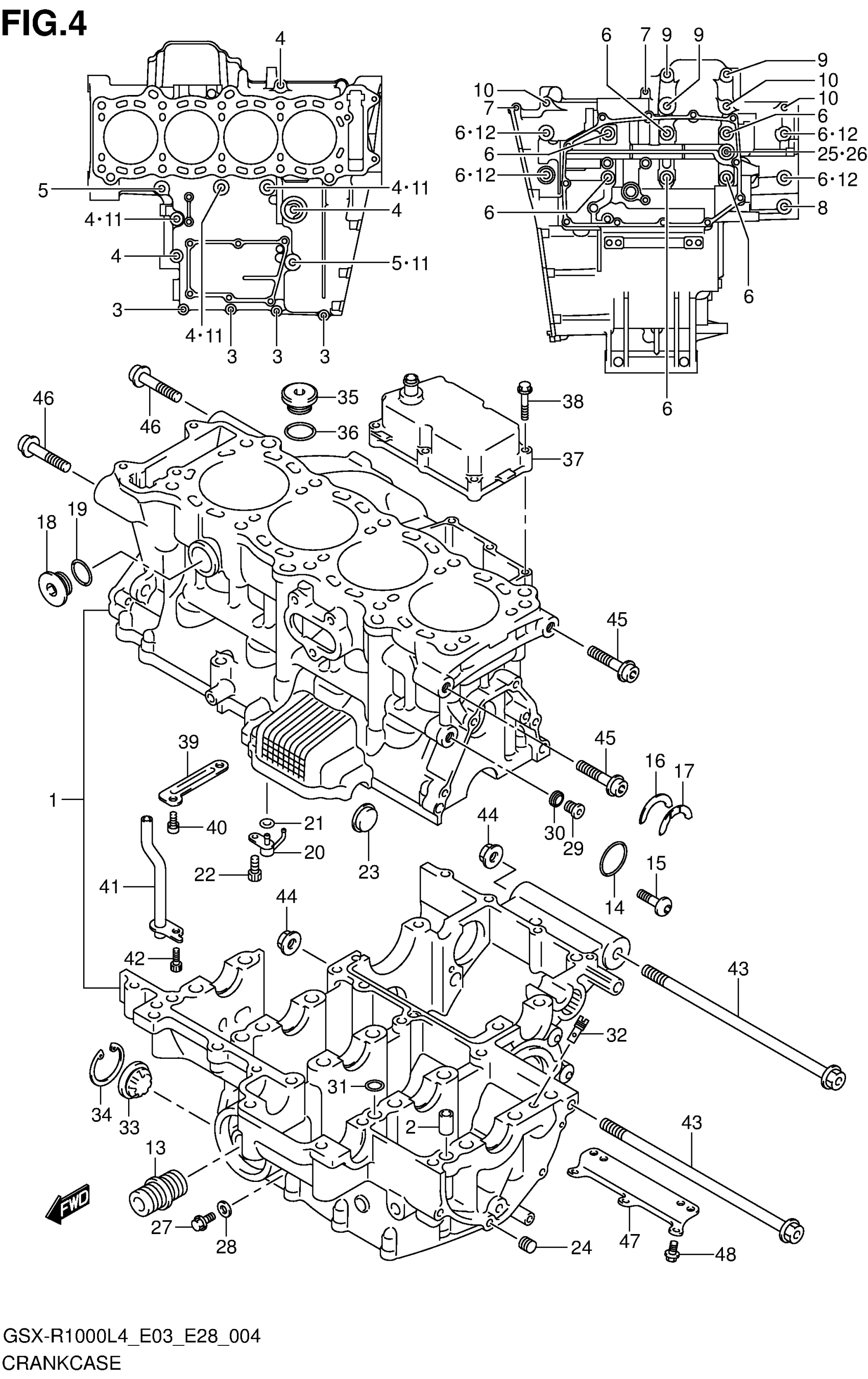

2014 Suzuki GSX-R1000L4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-47890

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

3
Out of stock

3

BOLT

01547-0635A

4
Out of stock

4

.BOLT

01550-0855A

6
Out of stock

5

BOLT

01550-0865A

2
Out of stock

6

BOLT (9X95)

09103-09012

10
Out of stock

7

BOLT

01547-0645A

2
Out of stock

8

BOLT (8X35)

01550-0835A

1
Out of stock

9

.BOLT

01550-0855A

3
Out of stock

10

BOLT

01550-0865A

3
Out of stock

11

GASKET (8.2X14X1)

09168-08016

4
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

13

UNION,OIL STAND

16591-06B01

1
Out of stock

14

O RING (D:3,ID:102)

09280-00045

1
Out of stock

15

BOLT (6X20)

09139-06151

6
Out of stock

16

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

1
Out of stock

17

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

1
Out of stock

17

BEARING, THRUST LH (RED)

12228-48B00-0C0

1
Out of stock

17

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

1
Out of stock

17

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

1
Out of stock

17

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

1
Out of stock

17

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

1
Out of stock

17

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

1
Out of stock

18

PLUG, WATER JACKET

11318-35F00

3
Out of stock

19

.O-RING (D:3.1,ID:19.4)

09280-20002

3
Out of stock

20

JET, PISTON COOLING This part replaces 11390-21H00.

11390-21H01

4
Out of stock

21

O RING (D:1.2,ID:4)

09280-04004

4
Out of stock

22

BOLT (6X12)

09106-06075

4
Out of stock

23

PLUG

09241-23005

1
Out of stock

24

PLUG This part replaces 09246-05006.

09246-04009

1
Out of stock

25

PLUG (L:12)

09248-12004

1
Out of stock

26

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

27

BOLT

01547-0612A

1
Out of stock

28

GASKET (6.2X13X1.2)

09168-06018

1
Out of stock

29

PLUG (10X10)

09248-10010

1
Out of stock

30

GASKET (10X14X3.6)

09168-10002

1
Out of stock

31

O RING (D:1.9,ID:7.8)

09280-08012

2
Out of stock

32

JET, 140

09493-28012

1
Out of stock

33

LENS, OIL LEVEL

11971-33210

1
Out of stock

34

.CIRCLIP

08331-4130A

1
Out of stock

35

PLUG (26X9)

09259-26011

1
Out of stock

36

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

37

COVER, BREATHER

11380-47H00

1
Out of stock

38

BOLT

01547-0630A

6
Out of stock

39

PLATE, BREATHER OIL RETURN

11382-47H00

1
Out of stock

40

BOLT (6X12)

09106-06075

2
Out of stock

41

PIPE, BREATHER OIL RETURN

11383-47H00

1
Out of stock

42

BOLT

07130-0612A

1
Out of stock

43

BOLT (12X220)

09103-12110

2
Out of stock

44

NUT

09159-12054

2
Out of stock

45

BOLT (10X45)

09106-10089

2
Out of stock

46

BOLT (10X55)

09106-10090

2
Out of stock

47

PLATE, LOWER

11322-47H00

1
Out of stock

48

BOLT (6X10)

09103-06188

4
Out of stock
