Description

Price

1

HANDLEBAR, RH

56111-47H10

$184.17

2

HANDLEBAR, LH

56151-47H11

$161.68

3

BOLT (8X32)

09106-08185

$2.80

4

BALANCER SET,HANDLEBAR This part replaces 56200-41822.

56200-41823

$29.78

5

SCREW

02122-0640B

$3.45

6

WASHER (6.5X16X4)

09160-06131

$2.62

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

8

NUT

56273-10G10

$8.27

9

MIRROR ASSY,RR VIEW,R

56500-47H01

$163.29

10

.CAP,R

56515-47H01

$5.66

11

MIRROR ASSY,RR VIEW,L

56600-47H01

$163.29

12

.CAP,L

56615-47H01

$5.66

13

CUSHION, RH

94575-47H00

$8.97

14

CUSHION, LH

94576-47H00

$16.37

15

NUT,RR VIEW MIRROR

56619-41G01

$8.91

16

CABLE ASSY, CLUTCH

58200-47H20

$66.07

17

CLAMP (L:154)

09407-17403

$4.79

18

CABLE ASSY,THRO This part replaces 58300-47H00.

58300-47H01

$52.35

19

CABLE ASSY,THRO This part replaces 58300-47H10.

58300-47H11

$49.37

20

SCREW (5X10)

09125-05042

$2.04

21

GUIDE, THROTTLE CABLE

58620-47H00

$20.97

22

BOLT

01547-0612A

$2.09

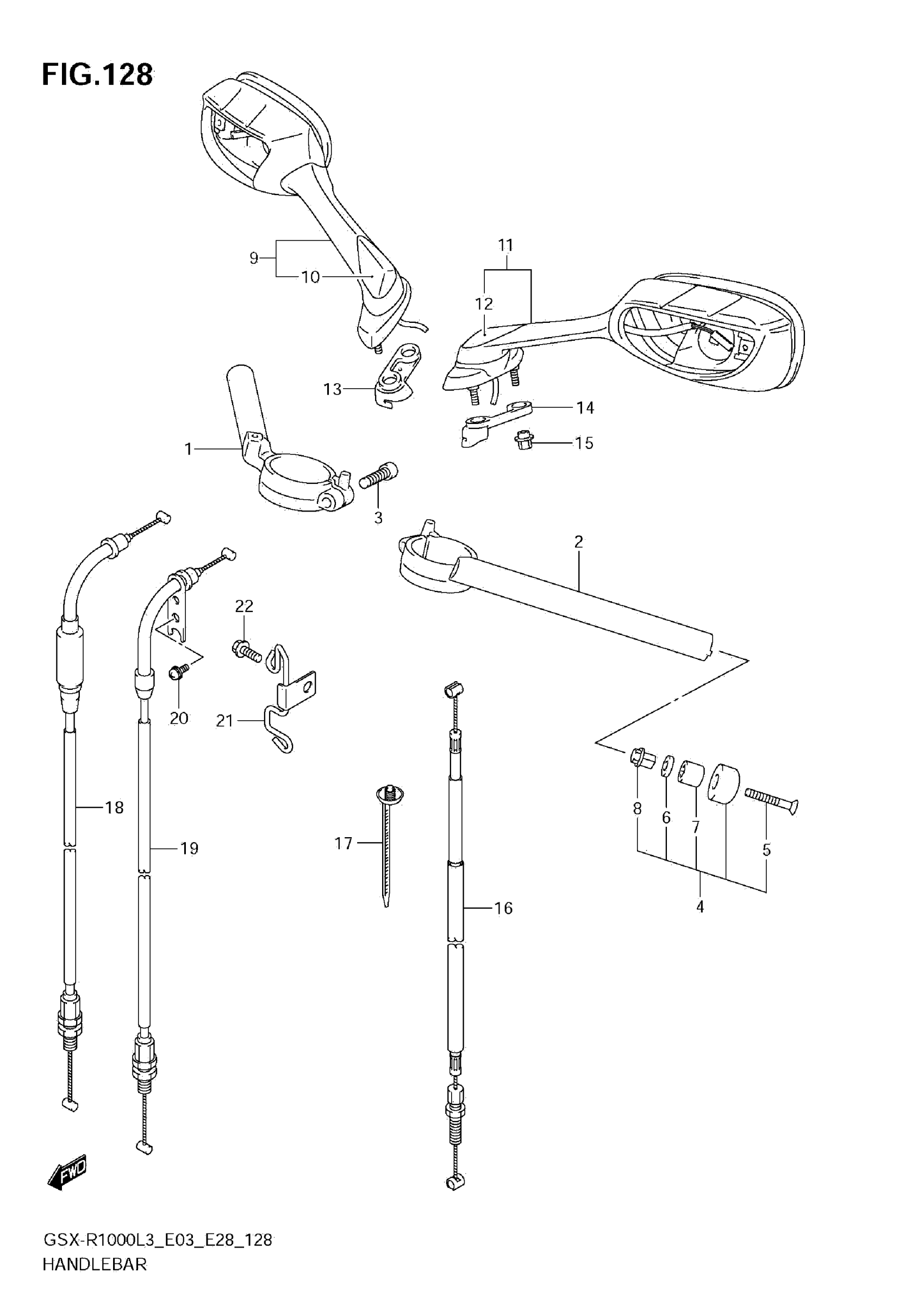

Suzuki GSX-R1000L3 (2013) HANDLEBAR Diagram
