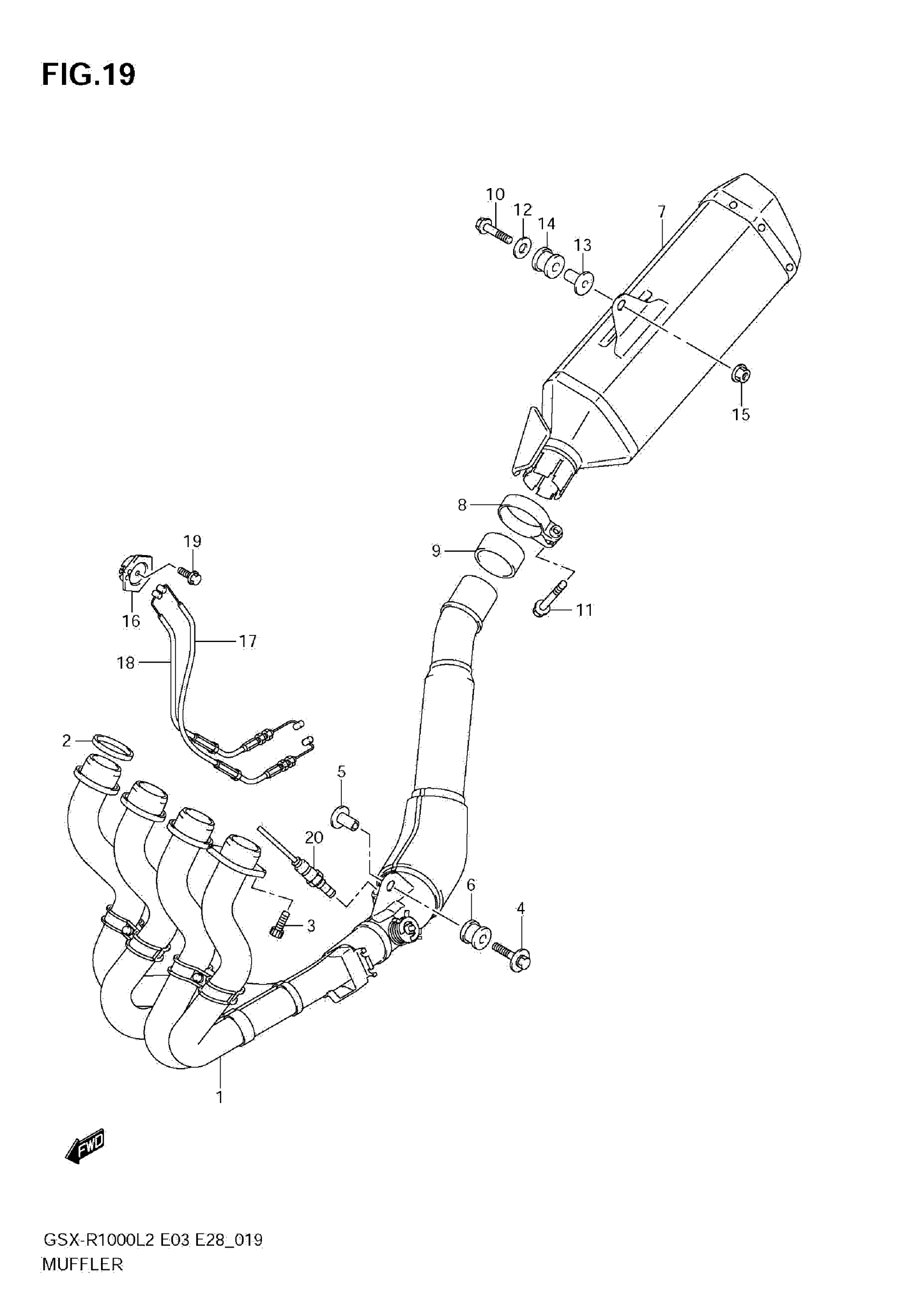

Suzuki GSX-R1000L2 (2012) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-47H10

$2,599.40

2

.GASKET,EXHAUST PIPE

14181-22D01

$9.67

3

BOLT

07130-0825A

$2.82

4

BOLT (8X45)

09118-08152-A05

$4.89

5

SPACER (8.6X12X24.2)

09180-08152

$5.42

6

CUSHION

09320-12077

$11.16

7

BODY, MUFFLER

14310-47H40-H01

$2,904.90

8

CLAMP,MUFFLER CONNECTOR

14459-47H00

$27.51

9

CONNECTOR,MUFFLER

14771-24F01

$34.07

10

BOLT (8X45)

09103-08358

$3.18

11

BOLT (8X40)

09103-08392

$4.75

12

WASHER (8.5X28X1.5)

09160-08142

$2.80

13

SPACER (8.6X12X24.2)

09180-08152

$5.42

14

CUSHION

09320-12048

$4.75

15

NUT

08361-2508A

$2.01

16

PULLEY, CONTROLLER

11269-18G01

$32.50

17

CABLE, EXH VALVE NO.1

11276-47H10

$78.50

18

CABLE, EXH VALVE NO.2

11277-47H10

$78.50

19

BOLT

01547-0516A

$1.68

20

SENSOR, OXYGEN

18213-18H10

$432.40
