2012 Suzuki GSX-R1000L2 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2012 Suzuki GSX-R1000L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

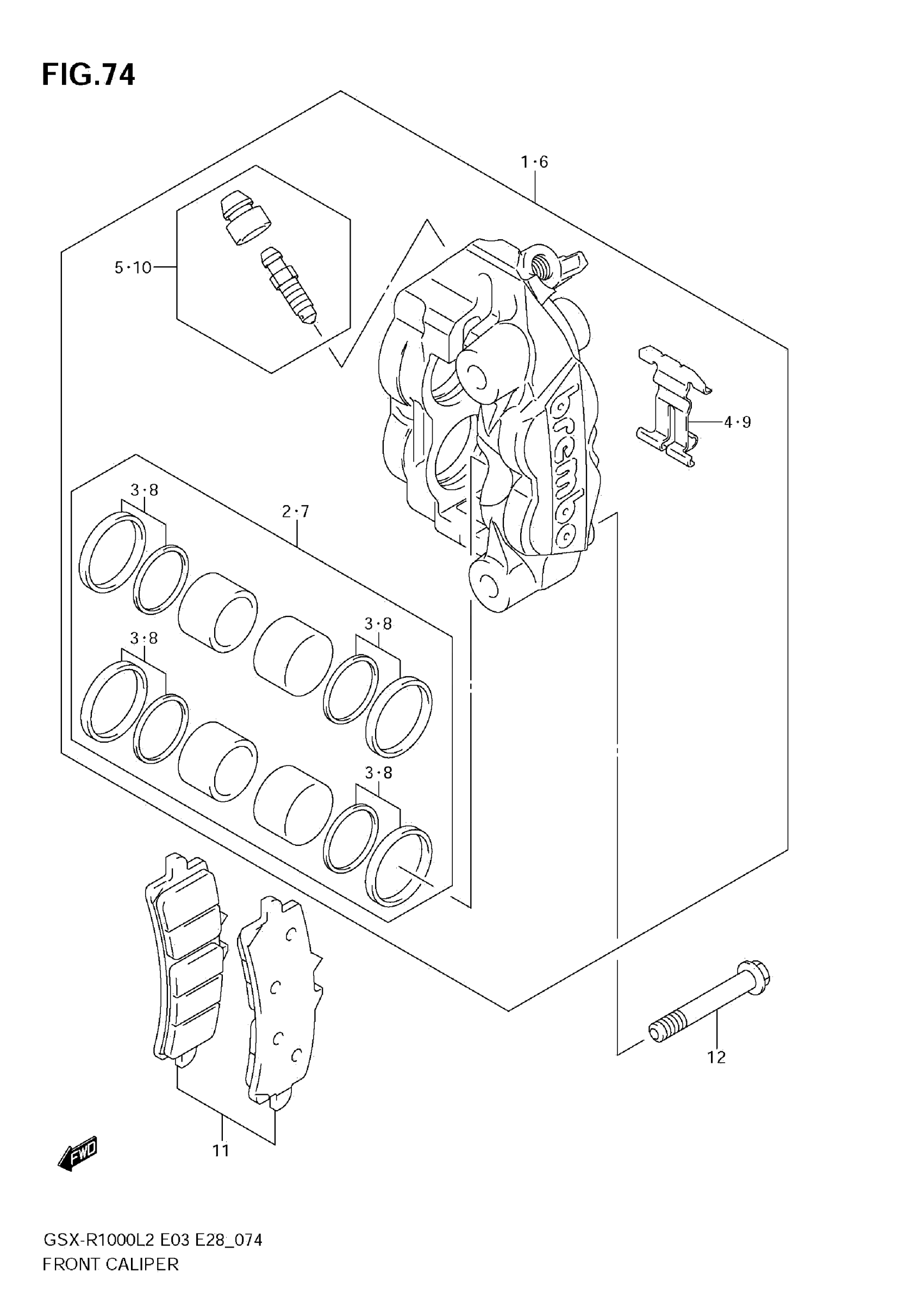

2012 Suzuki GSX-R1000L2 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-14J10-999

1
Out of stock

2

PISTON SET

59100-14810

1
Out of stock

3

SEAL SET, PISTON

59100-14820

1
Out of stock

4

SPRING, PAD

59151-14J00

1
Out of stock

5

BLEEDER SET

59100-14840

1
Out of stock

6

CALIPER ASSY, FRONT LH

59300-14J10-999

1
Out of stock

7

PISTON SET

59100-14810

1
Out of stock

8

SEAL SET, PISTON

59100-14820

1
Out of stock

9

SPRING, PAD

59151-14J00

1
Out of stock

10

BLEEDER SET

59100-14840

1
Out of stock

11

PAD (T4.0)

59100-14850

2
Out of stock

12

BOLT (10X70)

09103-10429

4
Out of stock
