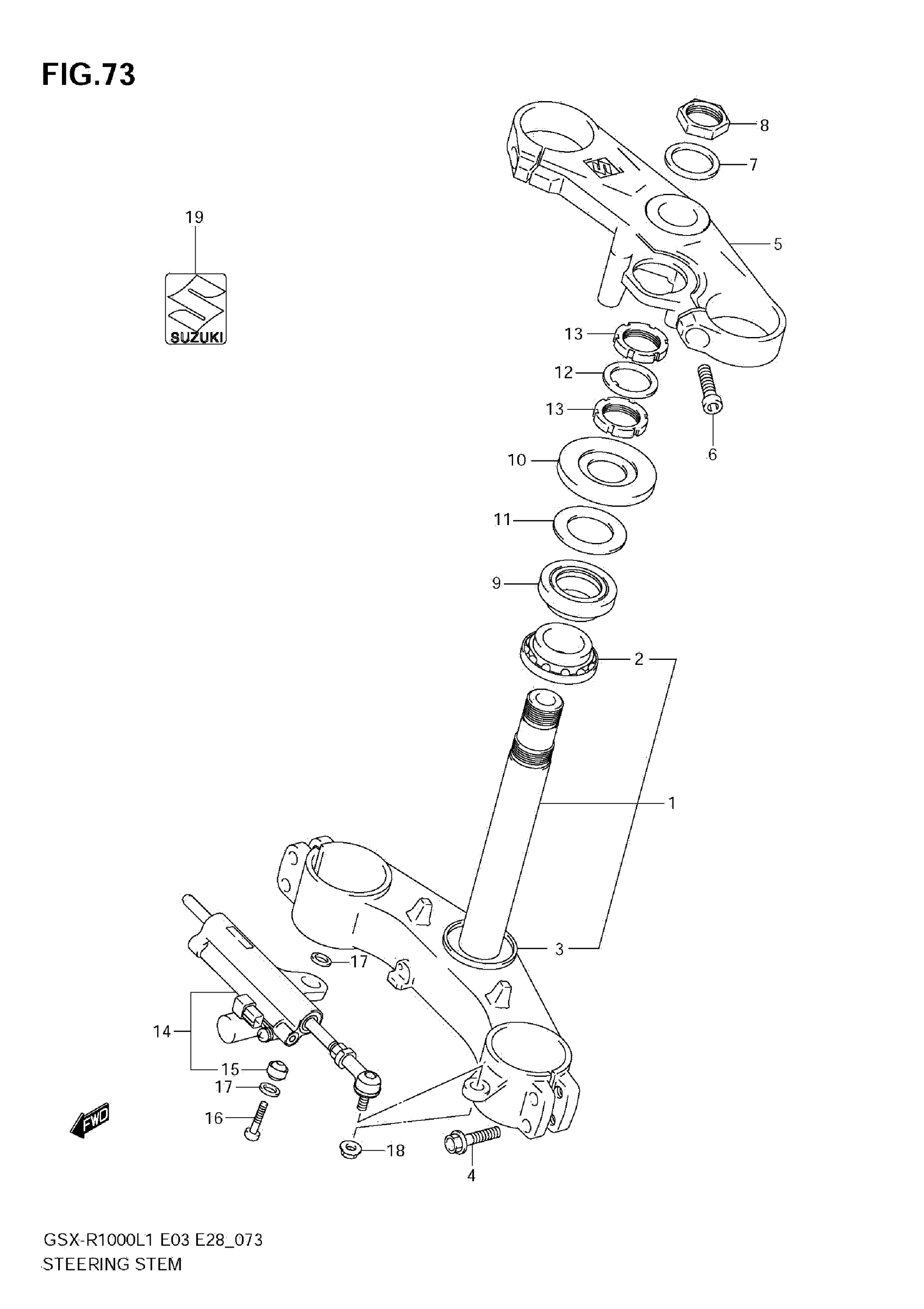

Suzuki GSX-R1000L1 (2011) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-47H00

Unavailable

2

BEARING (30X55X17)

09267-30010

$44.72

3

SEAL, STEM LOWER

51644-12C00

$9.04

4

BOLT

51166-01H10

$10.78

5

HEAD,STEERING STEM

51311-47H00

$398.28

6

BOLT

51321-27E30

$4.90

7

WASHER,STEM HEAD

51354-01H00

$7.37

8

NUT

51353-01H00

$34.20

9

BEARING (30X55X17)

09267-30010

$44.72

10

SEAL, STEM UPPER DUST

51643-41G00

$8.57

11

SEAL, UPPER DUST

51644-12C00

$9.04

12

WASHER, STEM

51641-33E00

$5.93

13

NUT, STEM

51631-33E00

$22.62

14

DAMPER ASSY,STE This part replaces 51750-21H20.

51750-21H21

$1,295.40

15

BEARING (8X17.5X11)

09269-08003

$48.44

16

BOLT (8X35)

09106-08130

$4.21

17

SEAL, DUST

64339-14101

$7.83

18

NUT

08319-3108A

$2.38

19

EMBLEM, "S"

68281-35F00

$16.18
