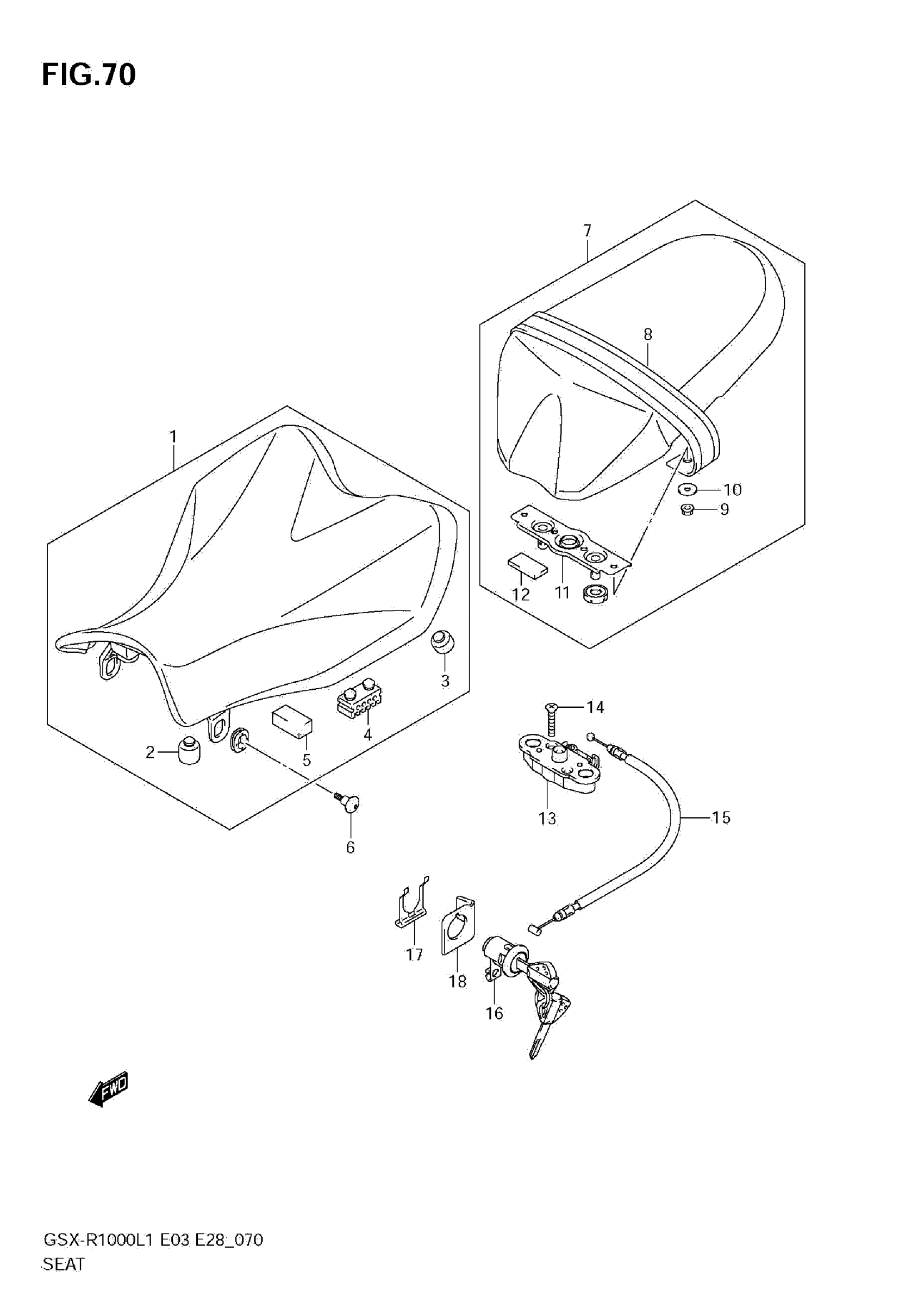

Suzuki GSX-R1000L1 (2011) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-47H00-6BY.

45100-47H11-6BY

$296.82

2

CUSHION

09321-10039

$4.89

3

CUSHION

09321-10011

$2.80

4

CUSHION

45149-19D00

$8.34

5

CUSHION

45149-31E00

Unavailable

6

SCREW (6X20)

09139-06126

$3.65

7

SEAT ASSY,PILLI This part replaces 45300-47H00-6BY.

45300-47H11-6BY

$273.77

8

BAND ASSY, SEAT (BLACK)

45180-47H00-6BY

Unavailable

9

NUT

08319-3106A

$2.01

10

.WASHER (6.5X20X1.6)

09160-06088

$1.67

11

.STRIKER This part replaces 45290-47H00.

45290-47H01

$44.02

12

CUSHION

45149-31E00

Unavailable

13

BRACKET, SEAT SUPPORT

45220-47H00

$155.43

14

SCREW

02122-0630A

$1.76

15

CABLE, SEAT LOCK

45280-47H00

$28.58

16

LOCK SET, SEAT

95700-14810

$98.21

17

PLATE, SEAT LOCK ASSY

45289-11F00

$5.67

18

GUIDE, SEAT LOCK CABLE

45288-14F00

$4.91
