2011 Suzuki GSX-R1000L1 Front Caliper Diagram

← All diagrams

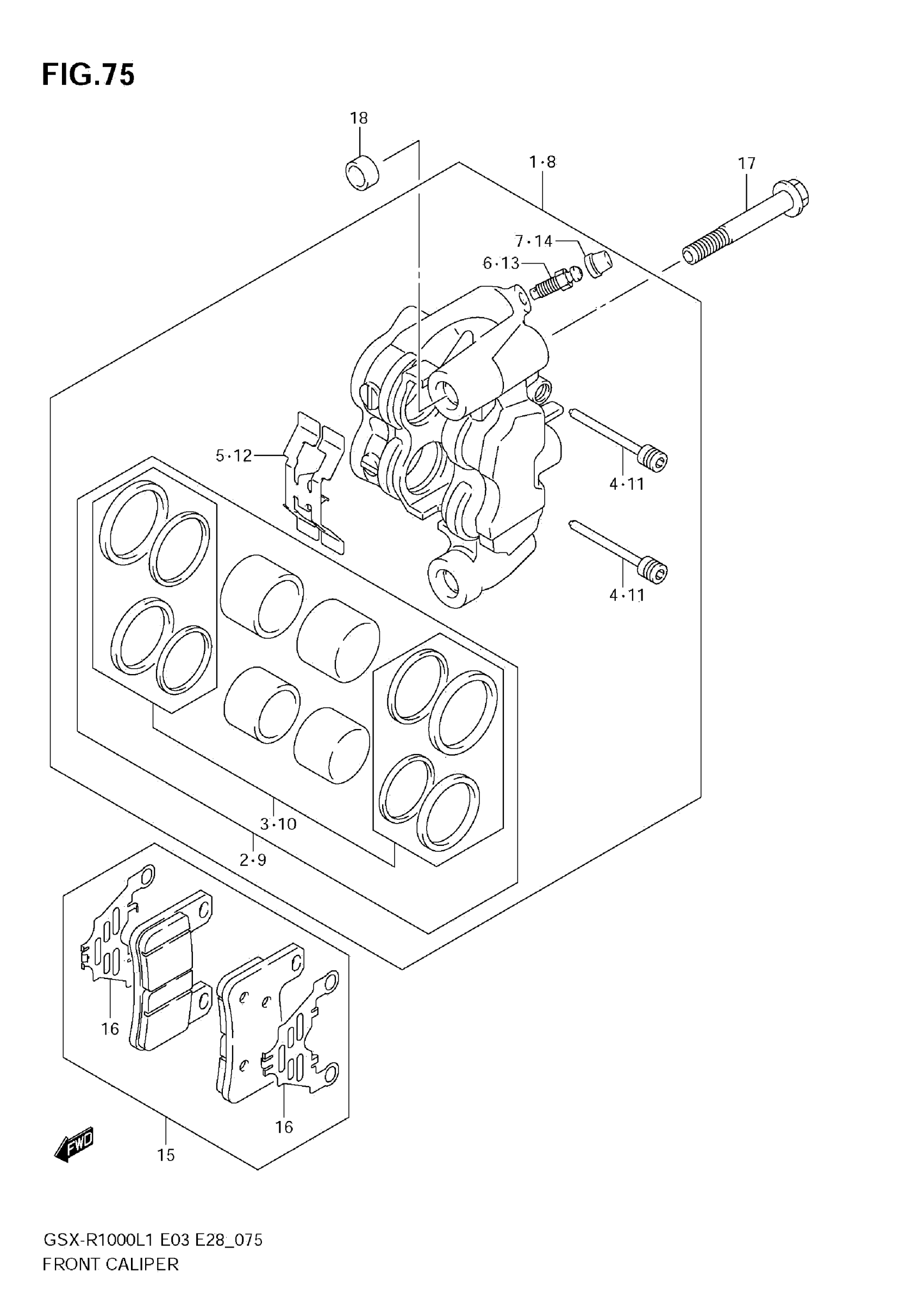

Find the part on the Front Caliper diagram for your 2011 Suzuki GSX-R1000L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX-R1000L1 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-47H00-999

1

$641.33

In stock

2

PISTON SET

59100-47880

1

$289.17

In stock

3

SEAL SET, PISTON

59101-47810

1

$106.00

In stock

4

.PIN This part replaces 59141-41G00.

59141-41G10

2
Out of stock

5

SPRING, PAD

59151-29G00

1
Out of stock

6

BLEEDER

59121-18410

1

$8.70

In stock

7

CAP

55156-66310

1

$5.15

In stock

8

CALIPER ASSY, FRONT LH

59300-47H00-999

1
Out of stock

9

PISTON SET

59100-47880

1

$289.17

In stock

10

SEAL SET, PISTON

59101-47810

1

$106.00

In stock

11

.PIN This part replaces 59141-41G00.

59141-41G10

2
Out of stock

12

SPRING, PAD

59151-29G00

1
Out of stock

13

BLEEDER

59121-18410

1

$8.70

In stock

14

CAP

55156-66310

1

$5.15

In stock

15

PAD & SHIM SET

59100-47890

2

$66.27

In stock

16

SHIM

59171-47H00

2
Out of stock

17

BOLT (10X70)

09103-10429

4

$14.90

In stock

18

PIN, CALIPER

59151-41G00

4
Out of stock
