2025 Suzuki GSX-R1000AM5 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2025 Suzuki GSX-R1000AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

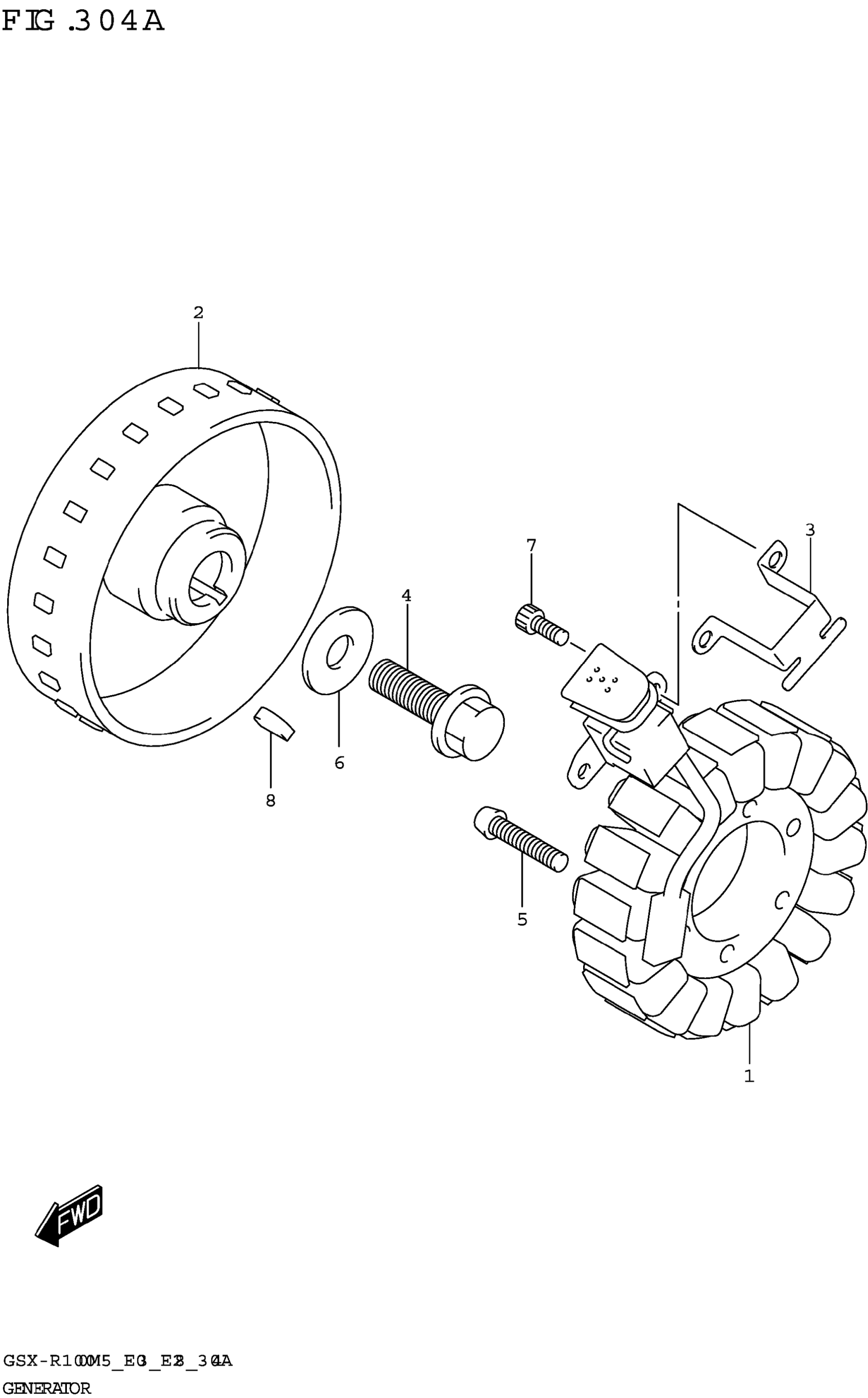

2025 Suzuki GSX-R1000AM5 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-17K00

1

$487.80

In stock

2

ROTOR ASSY

32102-17K00

1

$552.18

In stock

3

1

$11.15

In stock

4

BOLT

09103-12135

1

$7.40

In stock

5

BOLT

09106-06137

3

$3.62

In stock

6

WASHER (12X30X3.0)

09160-12036

1

$4.28

In stock

7

BOLT

07130-0512A

2
Out of stock

8

KEY (B:4,D:16,H6.5)

09420-04008

2
Out of stock
