2024 Suzuki GSX-R1000AM4 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2024 Suzuki GSX-R1000AM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

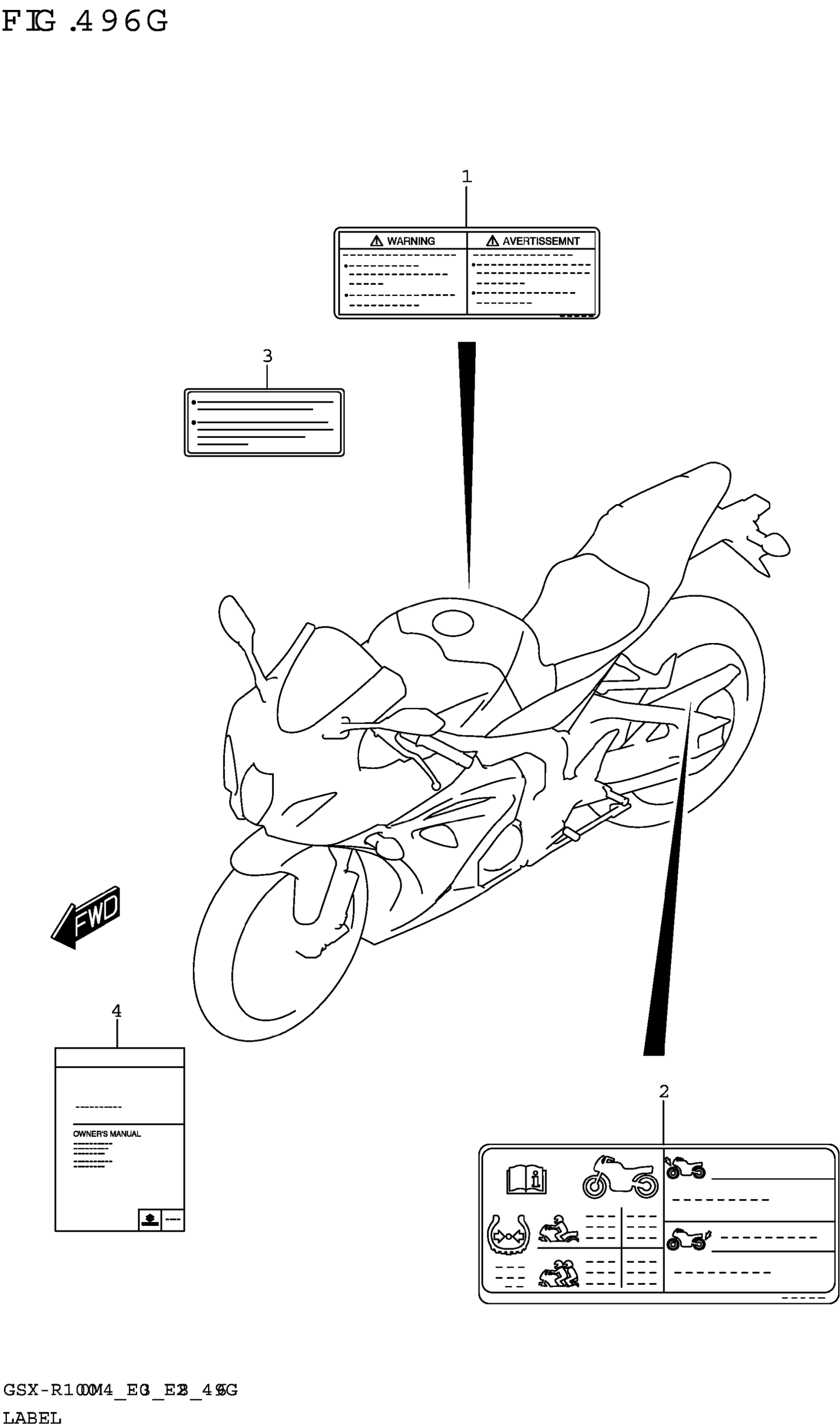

2024 Suzuki GSX-R1000AM4 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

LABEL,GENERAL WARNING | ENGLISH/FRENCH

68319-49J10

1
Out of stock

1-2

LABEL,GENERAL WARNING | SPANISH

68319-02K51

1
Out of stock

2-1

LABEL,TIRE INFORMATION | SPANISH

68332-17K50

—
Out of stock

2-2

LABEL,TIRE INFORMATION | ENGLISH/FRENCH

68332-17K60

—
Out of stock

3-1

LABEL,FUEL INFORMATION | ENGLISH/FRENCH

18803-40F10

1
Out of stock

3-2

LABEL,FUEL INFORMATION | SPANISH

18803-45G01

—
Out of stock

4-1

MANUAL,OWNER'S | ENGLISH

99011-17K57-01A

—
Out of stock

4-2

MANUAL,OWNER'S | FRENCH

99011-17K57-01F

—
Out of stock

4-3

MANUAL,OWNER'S | SPANISH

99011-17K57-029

—
Out of stock
