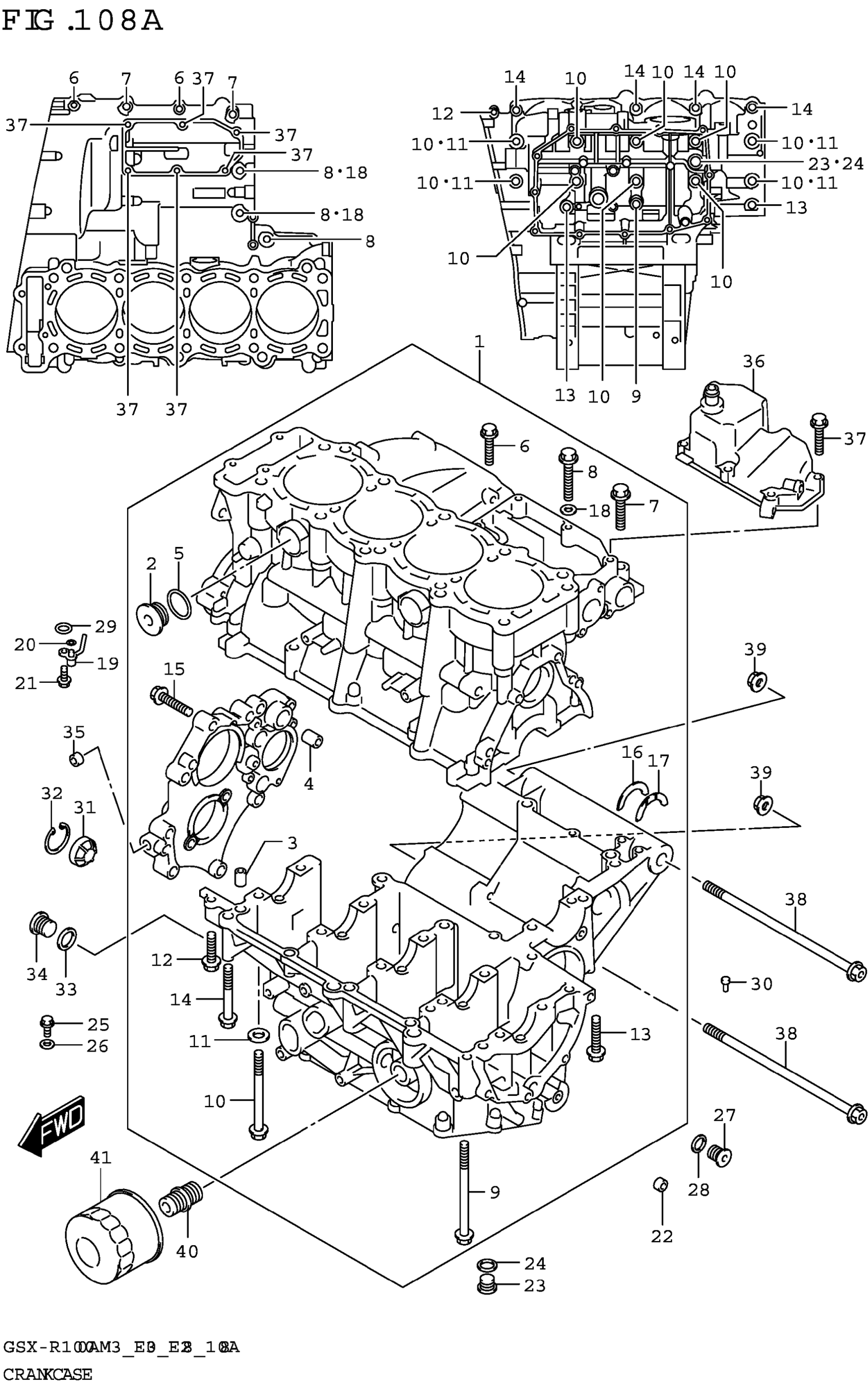

Suzuki GSX-R1000AM3 (2023) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-17810

$2,990.80

2

.PLUG,WATER JACKET

11318-35F00

$18.93

3

PIN,CRANKCASE

11319-33E50

$5.01

4

PIN,CRANKCASE

11319-33E50

$5.01

5

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.91

6

BOLT

01547-0635A

$2.31

7

BOLT

01550-0840A

$2.80

8

.BOLT

01550-0850A

$3.98

9

.BOLT (8X110)

09103-08134

$3.70

10

.BOLT (9X95)

09103-09012

$7.90

11

.GASKET (10.2X20X2.3)

09168-10031

$2.01

12

BOLT

01547-0635A

$2.31

13

BOLT

01550-0840A

$2.80

14

.BOLT

01550-0865A

$3.21

15

BOLT

07120-0835A

$3.25

16

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

17-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$13.05

17-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$12.82

17-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$13.30

17-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

17-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$13.30

17-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$13.30

17-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.09

18

GASKET (8.2X14X1)

09168-08016

$1.64

19

JET,PISTON COOLING

11390-17K00

$56.70

20

O-RING (D:1.2,ID:4)

09280-04004

$1.76

21

BOLT (6X12)

09106-06075

$2.50

22

PLUG This part replaces 09246-05006.

09246-04009

$4.62

23

PLUG (L:12)

09248-12004

$8.63

24

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

25

BOLT

01547-0612A

$2.01

26

GASKET (6.2X13X1.2)

09168-06018

$1.70

27

PLUG (10X10)

09248-10010

$3.82

28

GASKET (10X14X3.6)

09168-10002

$1.96

29

O-RING (D:1.9,ID:7.8)

09280-08012

$3.32

30

JET (#140)

09493-28012

$18.33

31

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

32

.CIRCLIP

08331-4130A

$2.95

33

GASKET (16X22X2)

09168-16002

$1.89

34

PLUG (16X12)

09248-16013

$4.41

35

PLUG This part replaces 09246-05006.

09246-04009

$4.62

36

COVER,BREATHER

11380-17K00

$168.05

37

BOLT

01547-0630A

$2.31

38

BOLT (12X275)

09103-12078

$20.87

39

NUT

09159-12081

$7.85

40

UNION,OIL STAND

16591-06B01

$6.45

41

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99
