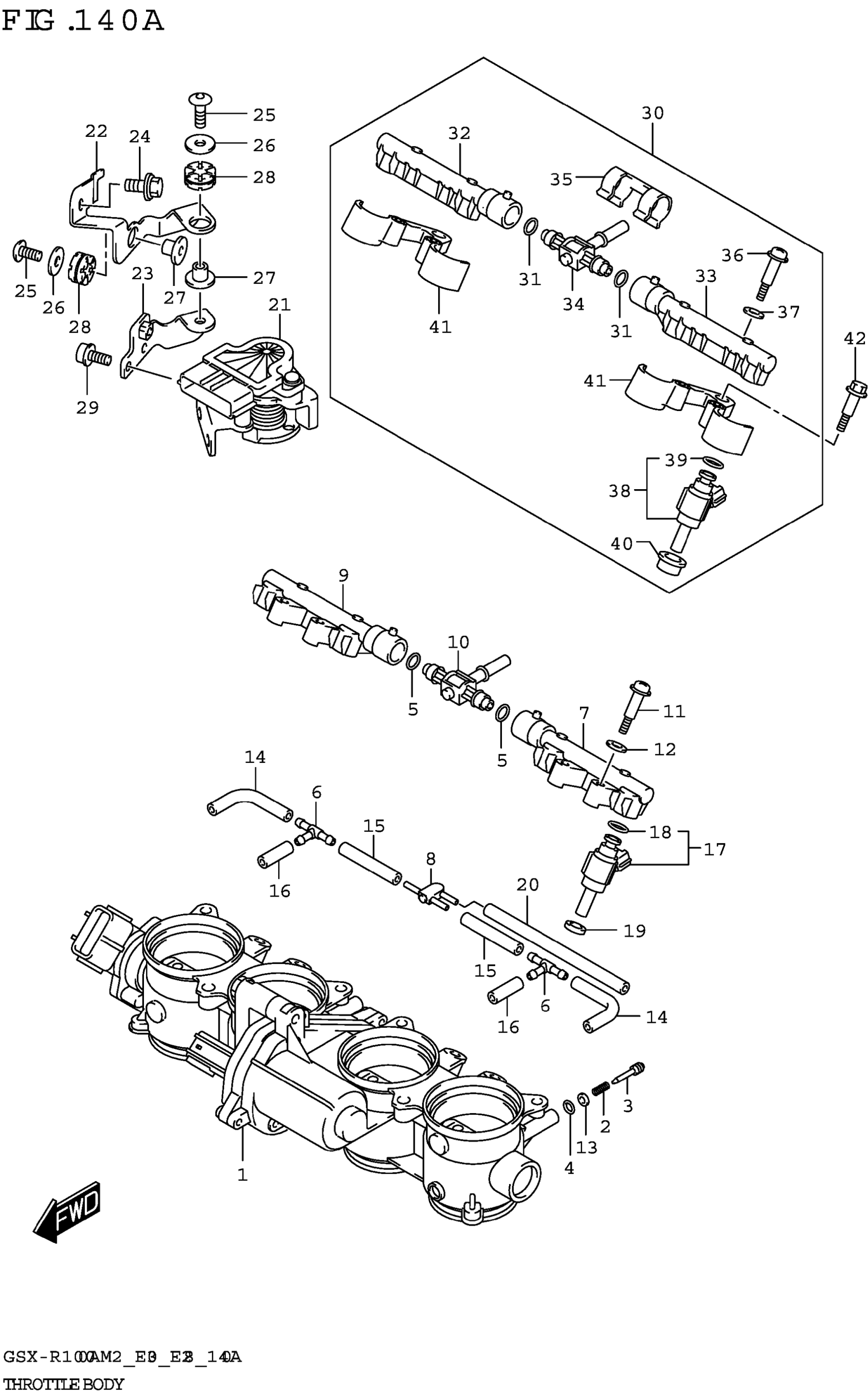

Suzuki GSX-R1000AM2 (2022) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13405-17K02

$1,555.00

2

SPRING,THROTTLE SCREW

13268-48700

$3.97

3

SCREW

13269-33E00

$10.45

4

O-RING

13295-29901

$3.97

5

O-RING

13374-32G00

$8.15

6

3WAY,VACUUM HOSE

13685-02FA0

$7.95

7

DELIVERY PIPE

13471-17K00

$79.90

8

JOINT

13471-18H00

$11.83

9

DELIVERY PIPE

13472-17K00

$79.90

10

NIPPLE ASSY

13473-17K00

$80.53

11

SCREW

13601-29G00

$3.22

12

PACKING

13602-29G01

$2.52

13

WASHER

13606-47A00

$3.70

14

HOSE (3.2X7.4X60)

13681-39F01-060

$4.40

15

HOSE (L:425)

13683-10F61

$19.30

16

HOSE (L:425)

13683-10F61

$19.30

17

INJECTOR ASSY

15710-04K00

$302.17

18

.O-RING

15717-58B00

$9.11

19

SEAL

15722-14J00

$10.70

20

.HOSE (3X7X600)

09355-30001-600

$7.83

21

BODY ASSY,ACCELERATOR

13500-17K00

$372.35

22

BRACKET,ACCEL SENSOR NO.1

13571-17K00

$15.22

23

BRACKET,ACCEL SENSOR NO.2

13572-17K00

$10.57

24

BOLT (6X12)

09116-06197

$2.80

25

BOLT

09139-06208

$3.53

26

.WASHER (6.5X20X1.6)

09160-06088

$1.67

27

SPACER (6.5X10X11.6)

09180-06319

$4.92

28

CUSHION

09320-10055

$4.12

29

BOLT

07120-0612B

$2.80

30

BODY ASSY,2ND INJECTOR

15900-17K00

$682.77

31

O-RING

13374-32G00

$8.15

32

DELIVERY PIPE

13471-17K00

$79.90

33

DELIVERY PIPE

13472-17K00

$79.90

34

NIPPLE ASSY

13473-17K00

$80.53

35

.CLIP

13474-17K00

$19.30

36

SCREW

13601-29G00

$3.22

37

PACKING

13602-29G01

$2.52

38

.INJECTOR ASSY

15710-17K10

$273.72

39

.O-RING

15717-58B00

$9.11

40

.INSULATOR

15722-17K00

$5.75

41

.BRACKET,2ND INJECTOR

15910-17K00

$58.03

42

BOLT

09111-06250

$9.68
